Simpson Hangers | SKU:
WP210-2

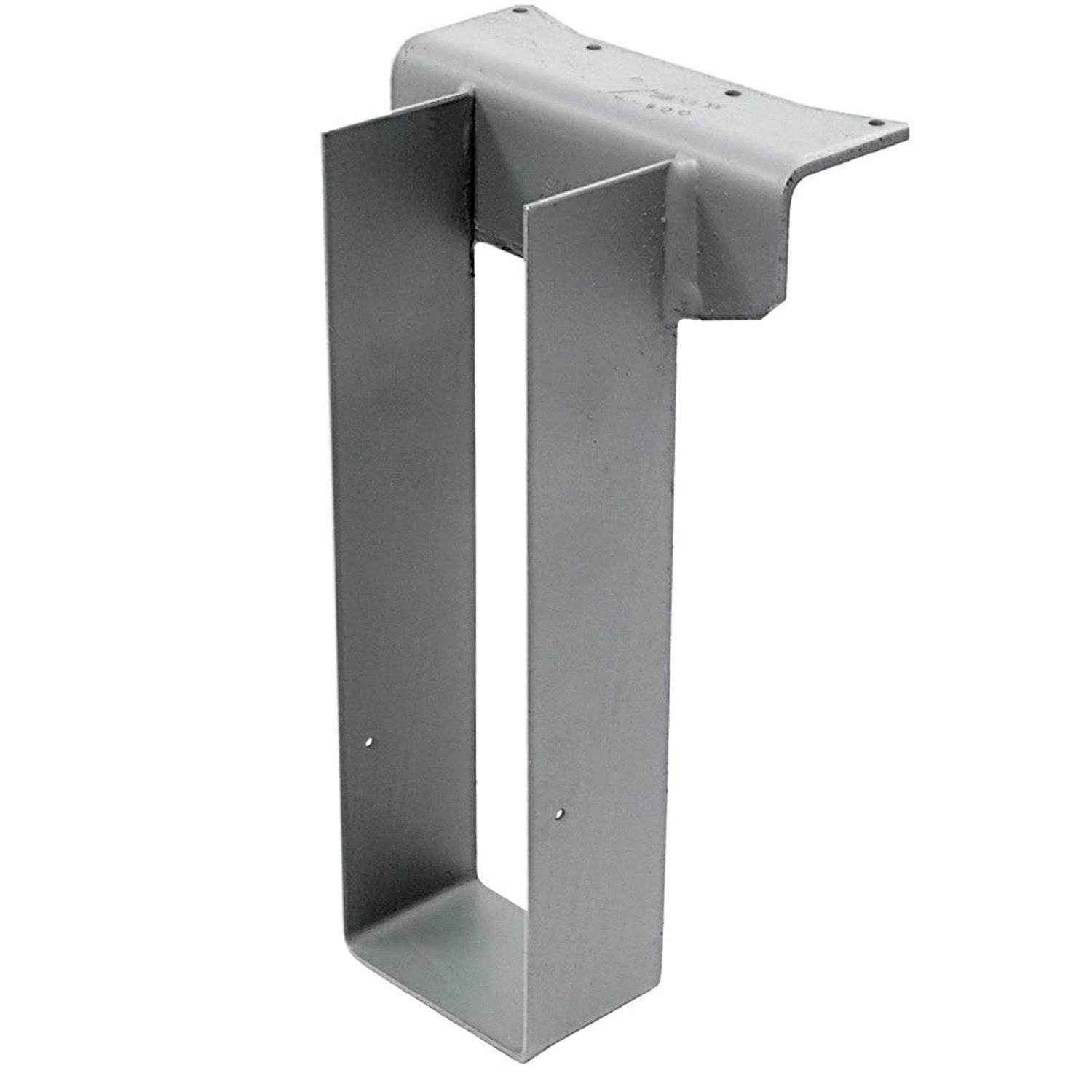

Simpson Strong-Tie WP210-2 (Double 2x10) Welded Top Flange I-Joist Purlin Hanger
$33.16
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie WP210-2 Description
The Simpson WP Welded Purlin Hangers are designed to provide robust support for joists connecting to purlins or beams in a variety of construction applications. These top-flange hangers accommodate both wood-to-wood and wood-to-steel connections, ensuring superior load capacity and structural integrity.
Simpson Strong-Tie WP210-2 Includes
- (1) Welded Top-Flange Joist Hanger
Simpson Strong-Tie WP210-2 Features
- Highly modifiable with alteration options including opened/closed top flange and offset top flange
- Top flange may be sloped to a maximum of 35° to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Manufactured from 12-gauge steel for enhanced strength and durability
- Simpson Strong-Tie gray paint provides protection against environmental factors
Simpson Strong-Tie WP210-2 Applications
- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.
- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.
Simpson Strong-Tie WP210-2 Installation Overview
- Use all specified fasteners.
- H dimensions are sized to account for normal joist shrinkage.
- The WP may be used for weld-on applications. The minimum-size weld is a 1 1/2"-long fillet weld to each side of the top flange; weld size to match hanger material thickness.
- Hangers can support multi-ply carried members; the individual members must be secured together to work as a single unit before installation into the hanger.
- Web stiffeners are required for these hangers when using engineered wood.
Simpson Strong-Tie WP210-2 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Thickness | 12 Gauge |
| Joist size | Double 2" X 10" |
| For Treated Lumber | No |
| Weight | 3.1 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
