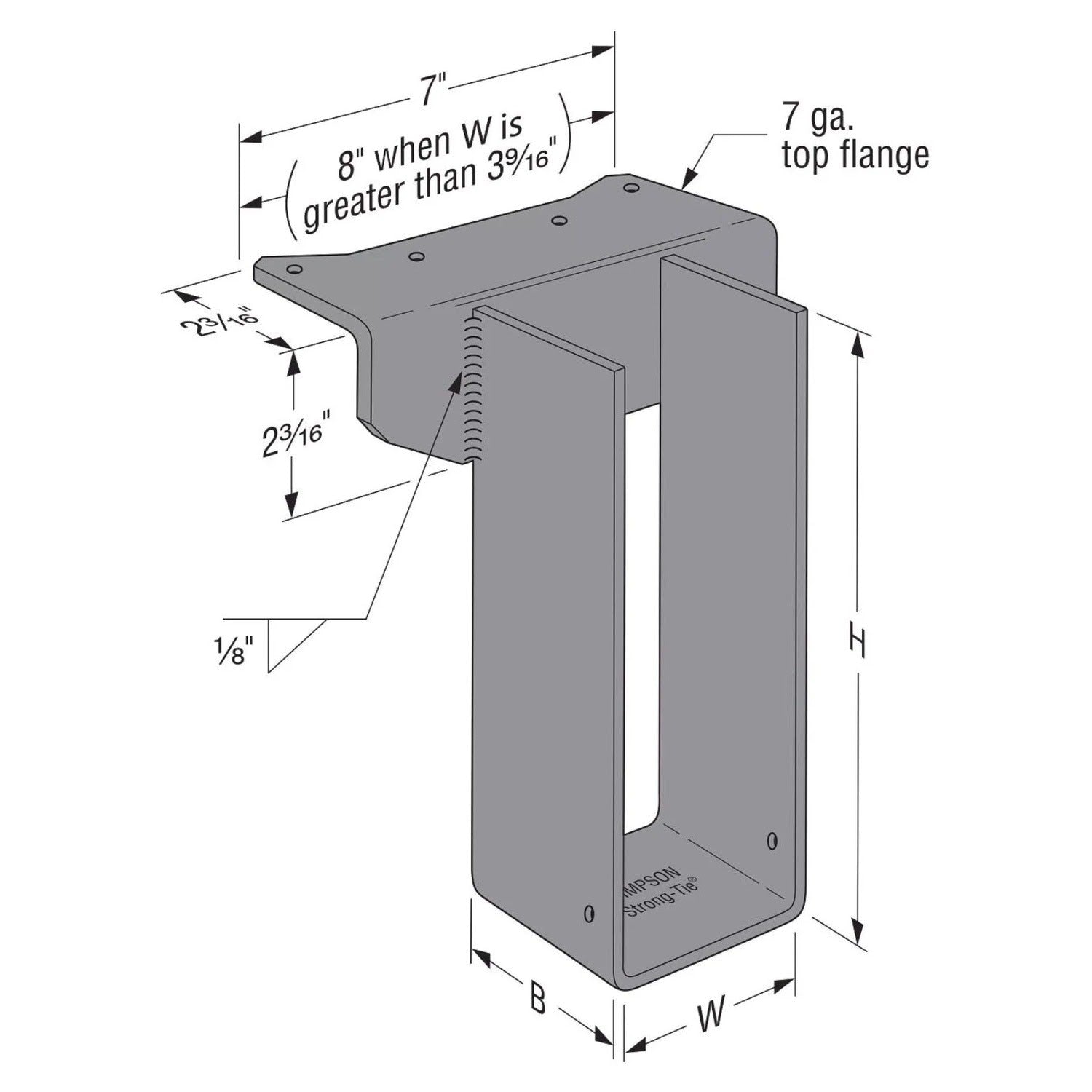

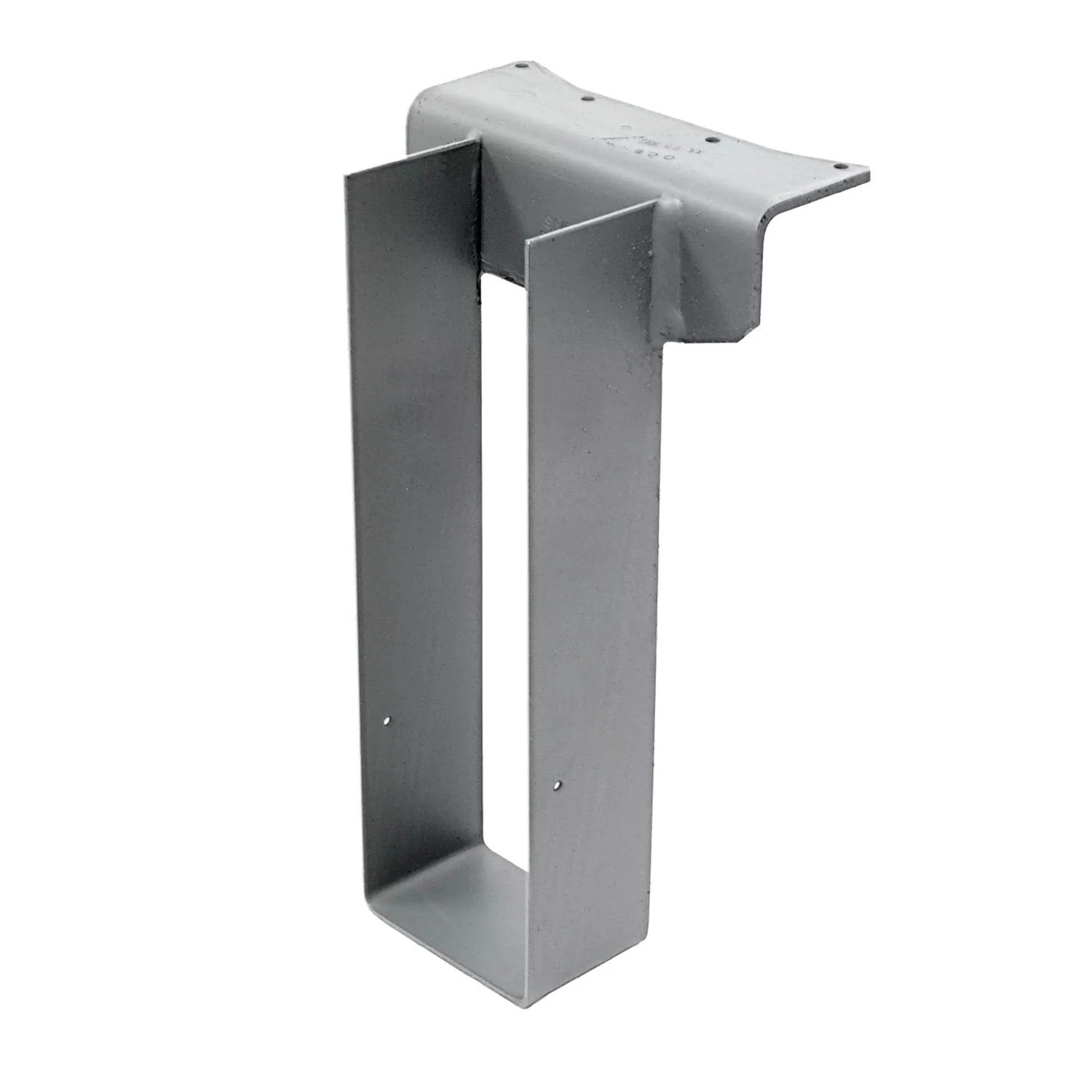

Simpson Strong-Tie WP212 Welded Purlin Hanger for 2x12 Joists

Simpson Strong-Tie WP212 Features

• Highly modifiable with alteration options including opened/closed top flange and offset top flange
• Top flange may be sloped to a maximum of 35° to accommodate a sloped header
• Features a solid one-piece top flange that provides extra stability in panelized roof applications
• Manufactured from 12-gauge steel for enhanced strength and durability
• Simpson Strong-Tie gray paint provides protection against environmental factors

Simpson Strong-Tie WP212 Applications

• Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.

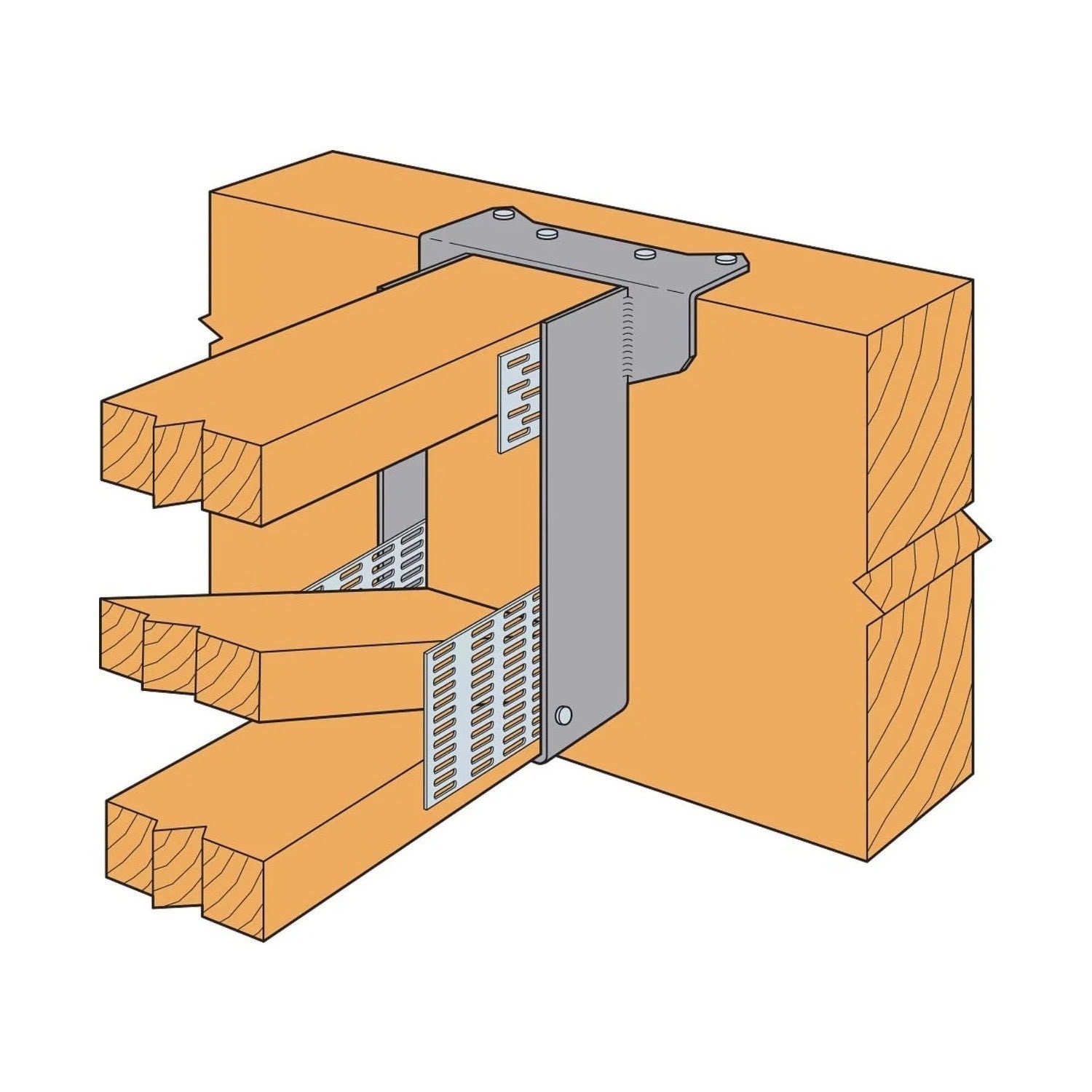

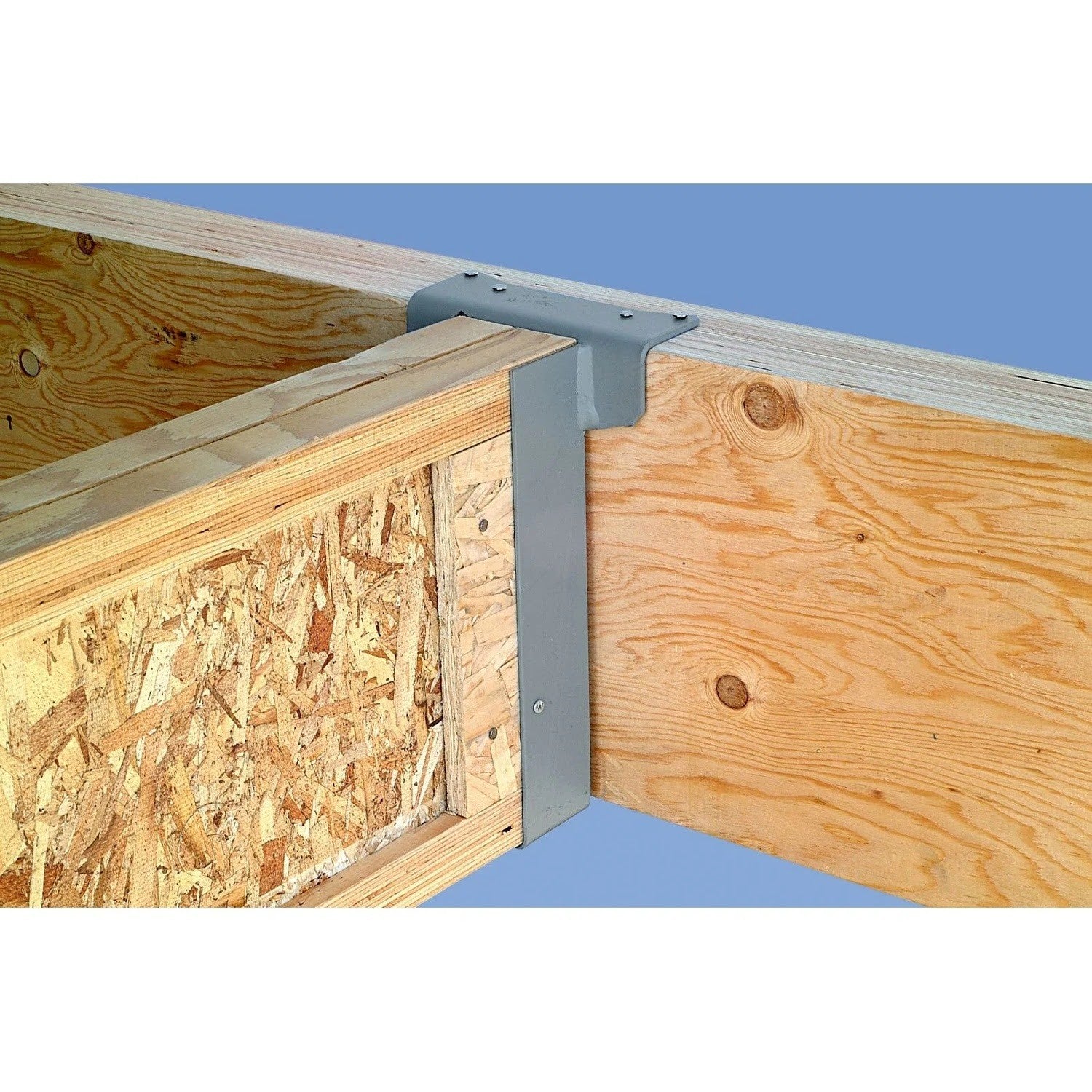

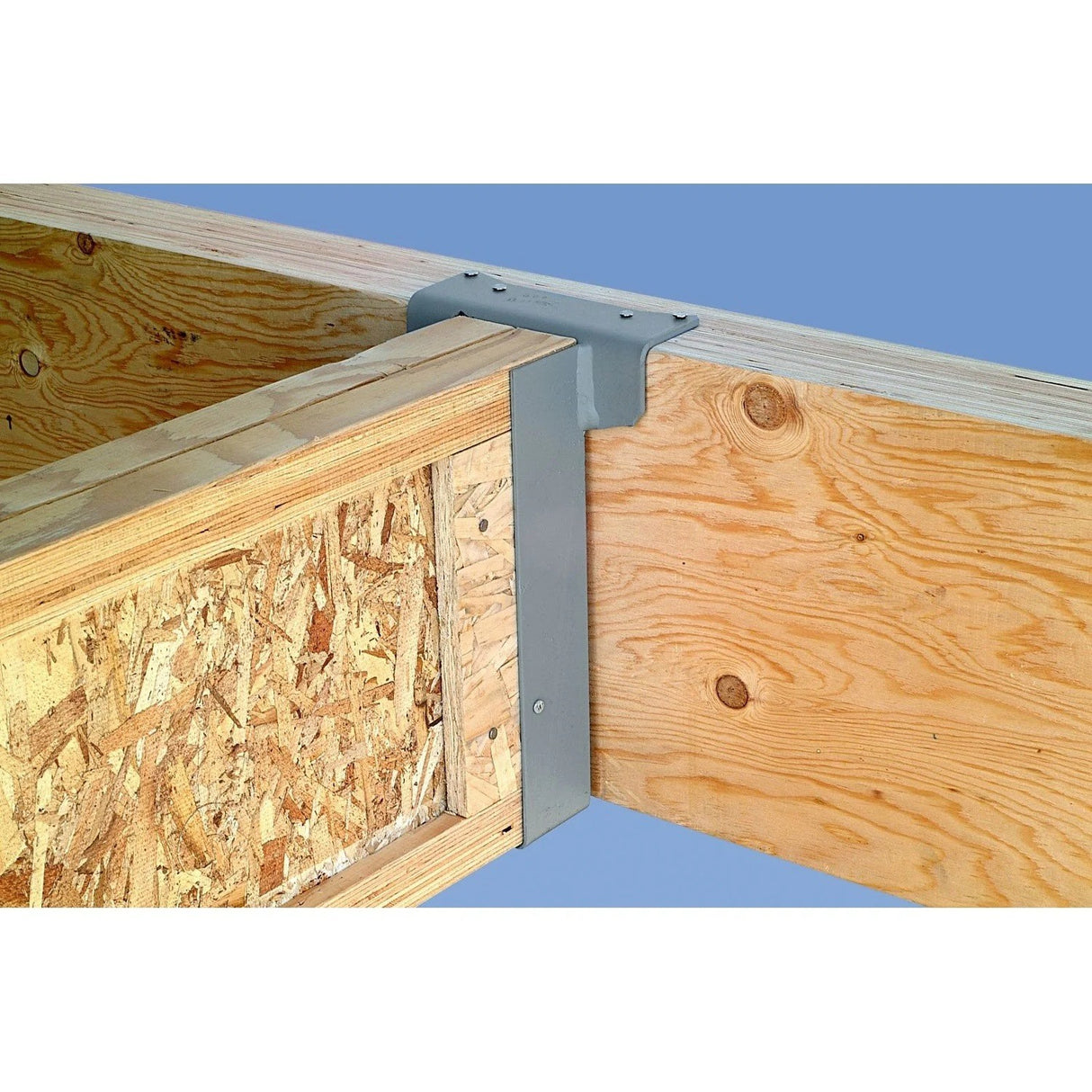

• Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
• Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.

Simpson Strong-Tie WP212 Installation Overview

1. Use all specified fasteners.
2. For wood-to-steel applications, weld the hanger to the steel header using a minimum 1 1/2"-long fillet weld on each side of the top flange, ensuring the weld size matches the hanger material thickness.
3. Ensure joist dimensions align with hanger specifications for a secure and stable connection.
