Simpson Hangers | SKU:
WP26-2
Simpson Strong-Tie WP26-2 Welded Top-Flange Joist Hanger for Double 2x6
$30.22
Unit price
/
Unavailable
Description
Description

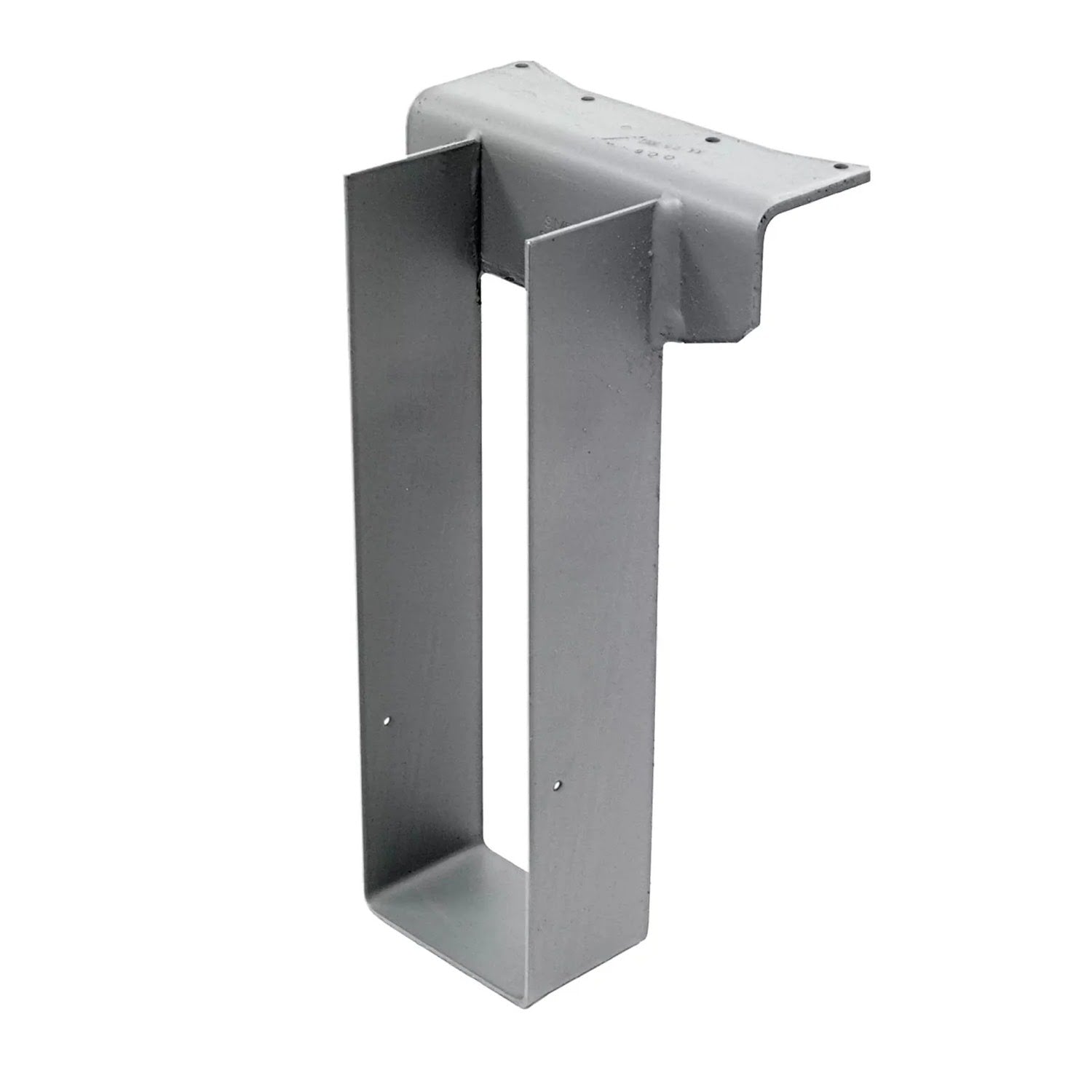

Simpson Strong-Tie WP26-2 Description
The Simpson WP Welded Purlin Hangers are designed to provide robust support for joists connecting to purlins or beams in a variety of construction applications.
Simpson Strong-Tie WP26-2 Includes
- (1) Welded Top-Flange Joist Hanger
Simpson Strong-Tie WP26-2 Features
- Design Flexibility: Can be skewed up to 84° and sloped up to 45° for versatile installation in complex framing applications.
- Heavy-Duty Construction: Manufactured from 12-gauge steel for enhanced strength and durability.
- Corrosion-Resistant Finish: Simpson Strong-Tie gray paint provides protection against environmental factors.
- Customizable Styles: Available in Type A (bevel-cut) or Type B (square-cut) to accommodate solid sawn and engineered wood applications.
Simpson Strong-Tie WP26-2 Applications
- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.

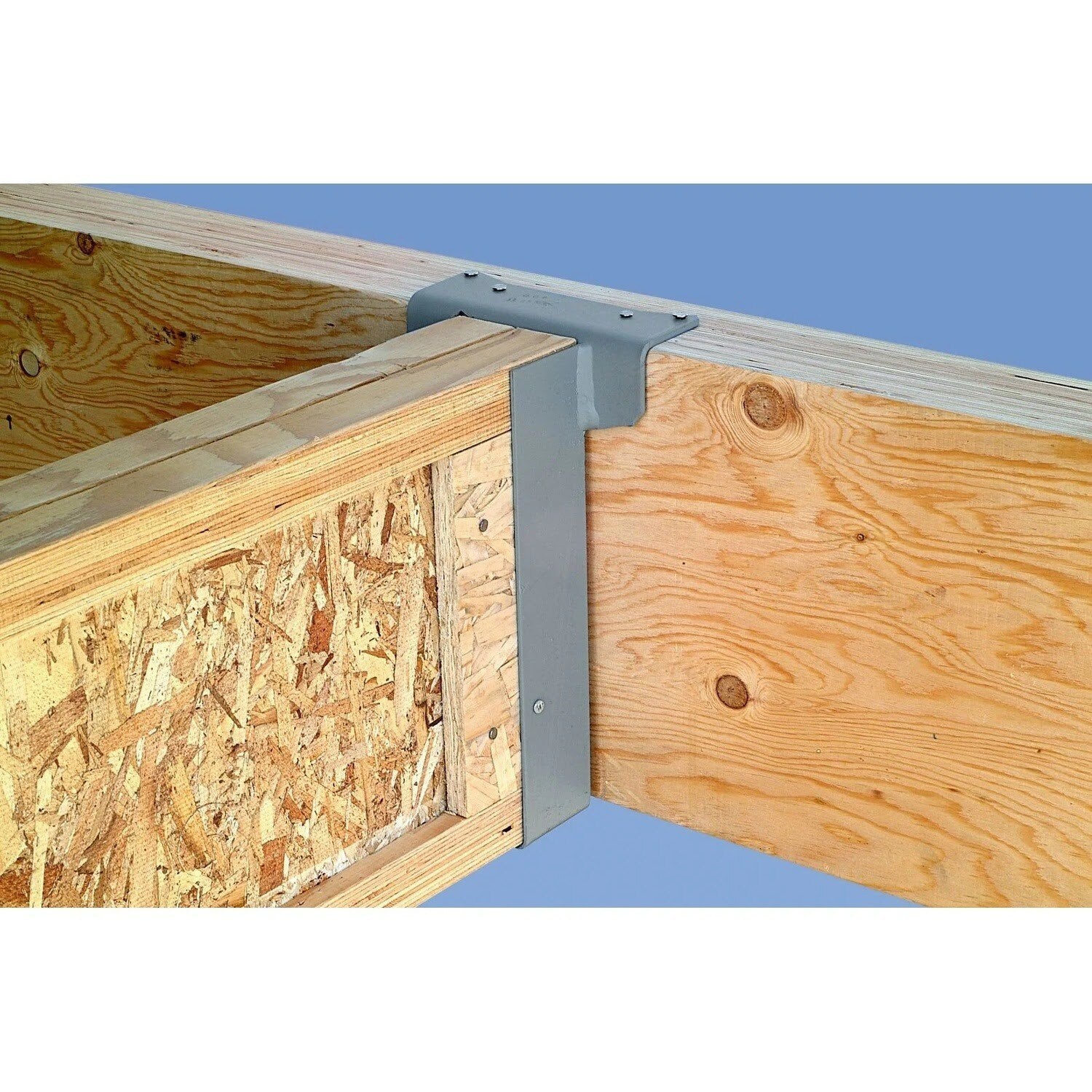

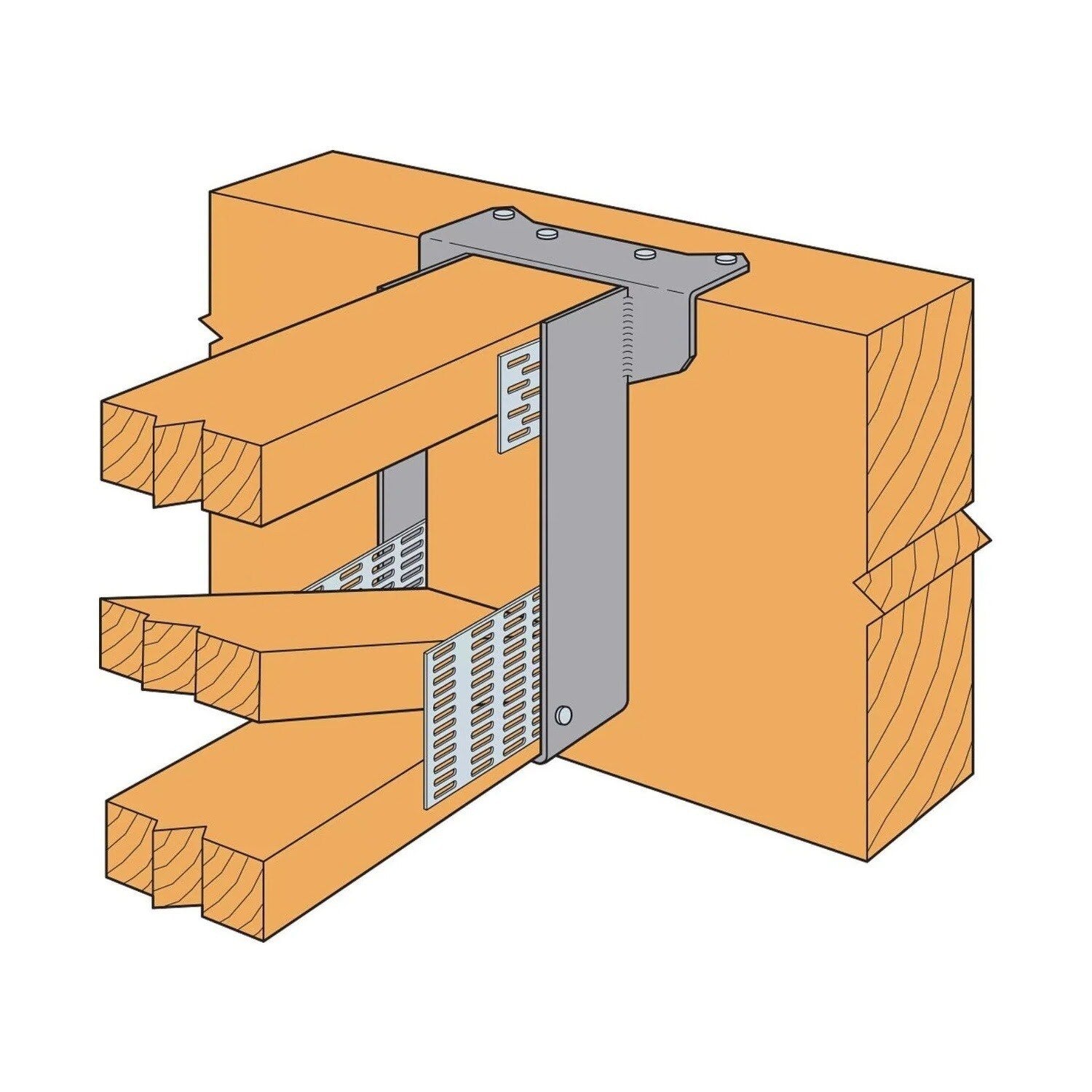

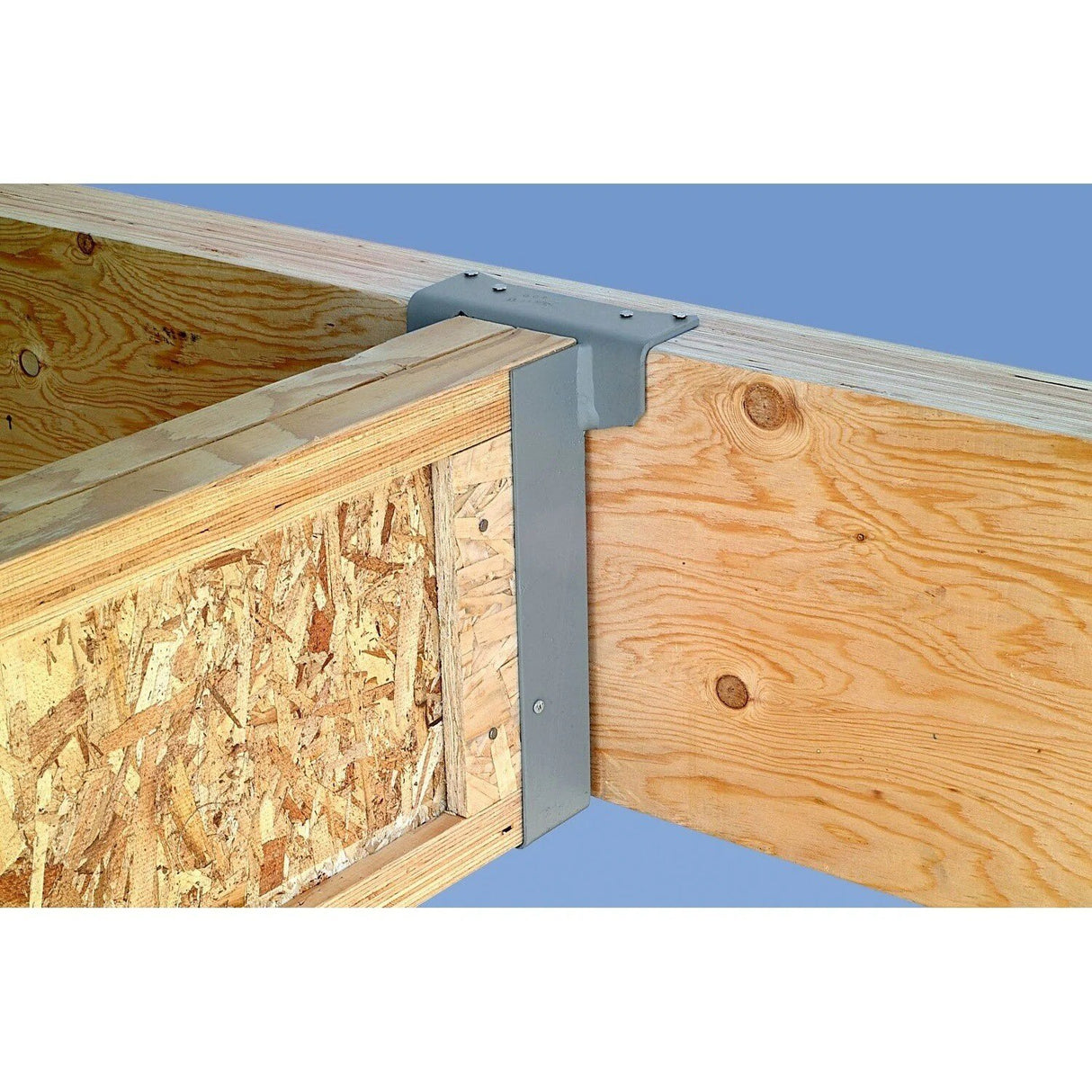

- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.
Simpson Strong-Tie WP26-2 Installation Overview
- Welding: For wood-to-steel applications, weld the hanger to the steel header using a minimum 1 1/2"-long fillet weld on each side of the top flange, ensuring the weld size matches the hanger material thickness.
- Joist Compatibility: Ensure joist dimensions align with hanger specifications for a secure and stable connection.

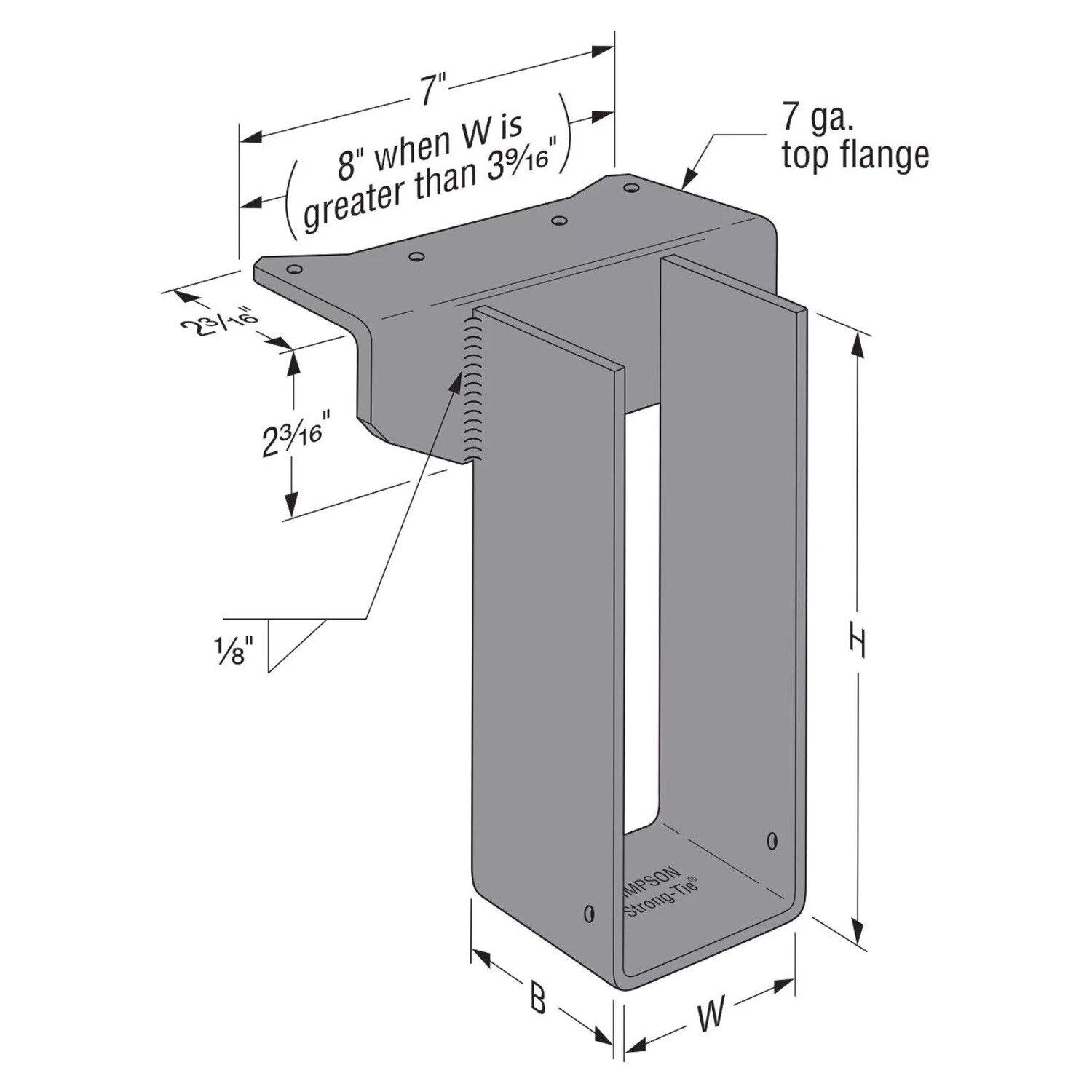

Simpson Strong-Tie WP26-2 Specifications
| Finish | Gray Paint |
| Material | Carbon Steel |
| For Treated Lumber | No |
| Joist size | Double 2" X 6" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1 |
| Thickness | 12 Gauge |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
