Simpson Hangers | SKU:
WP412

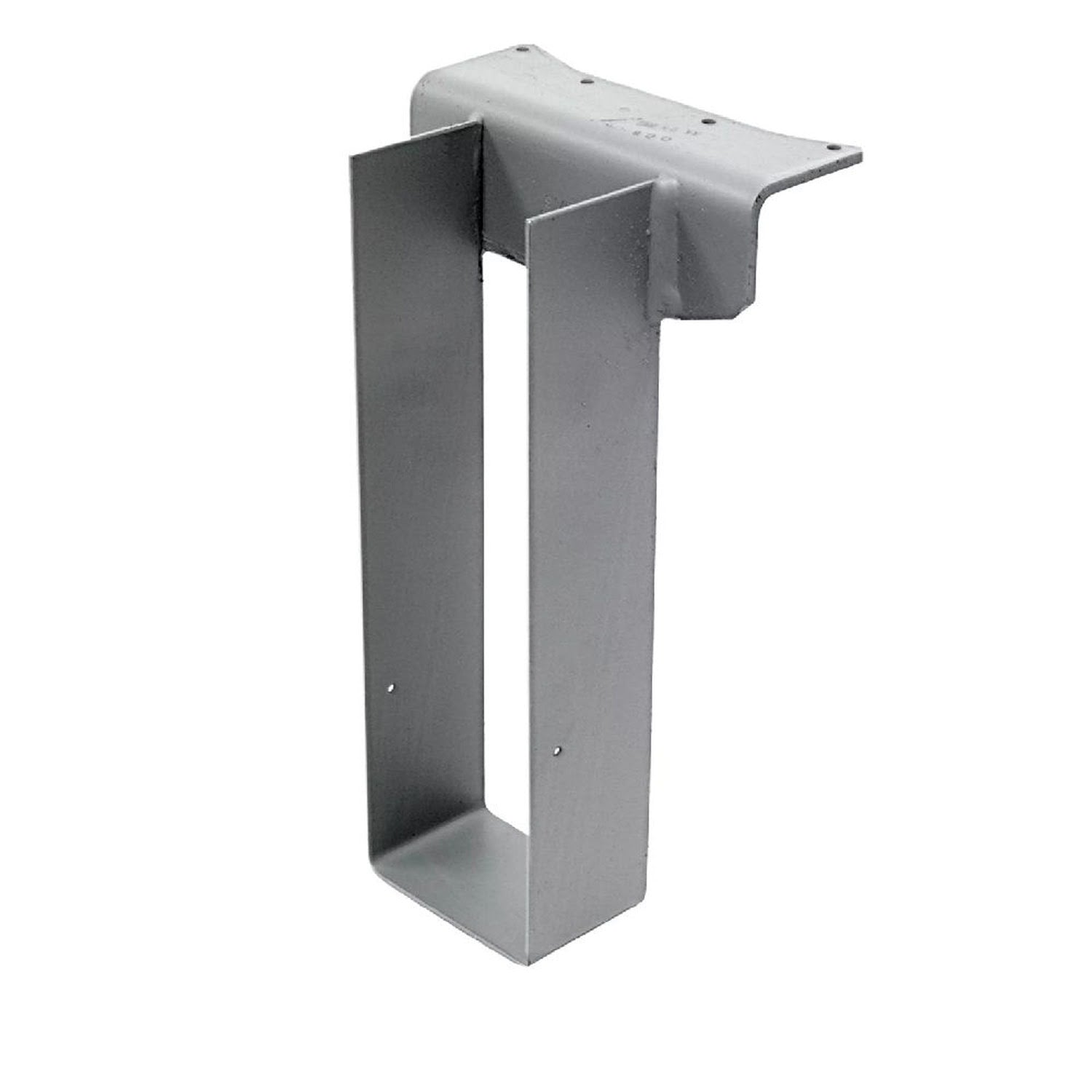

Simpson Strong-Tie WP412 (4" x 12") Welded Top-Flange Joist Hanger
$37.65
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie WP412 Description
The Simpson WP412 Welded Top-Flange Joist Hanger is designed for robust support in wood-to-wood and wood-to-steel connections, offering versatility and durability for various construction applications.
Simpson Strong-Tie WP412 Includes
- (1) Welded Top-Flange Joist Hanger
Simpson Strong-Tie WP412 Features
- Highly modifiable with options for opened/closed top flange and offset top flange
- Top flange can be sloped up to 35° for sloped headers
- Solid one-piece top flange for extra stability in panelized roof applications
- Manufactured from 12-gauge steel for enhanced strength and durability
- Corrosion-resistant finish with Simpson Strong-Tie gray paint
Simpson Strong-Tie WP412 Applications
- Residential and commercial projects for floor, ceiling, and roof framing
- Joist-to-purlin connections for secure load-bearing between wood joists and beams
- Wood-to-steel construction for installations requiring welded steel headers
Simpson Strong-Tie WP412 Installation Overview
- Use all specified fasteners for secure installation
- For wood-to-steel applications, weld the hanger to the steel header using a minimum 1 1/2"-long fillet weld on each side of the top flange
- Ensure joist dimensions align with hanger specifications for a secure and stable connection
Simpson Strong-Tie WP412 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Joist size | 4" X 12" |
| Thickness | 12 Gauge |
| For Treated Lumber | No |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
