Simpson Hangers | SKU:
WP46

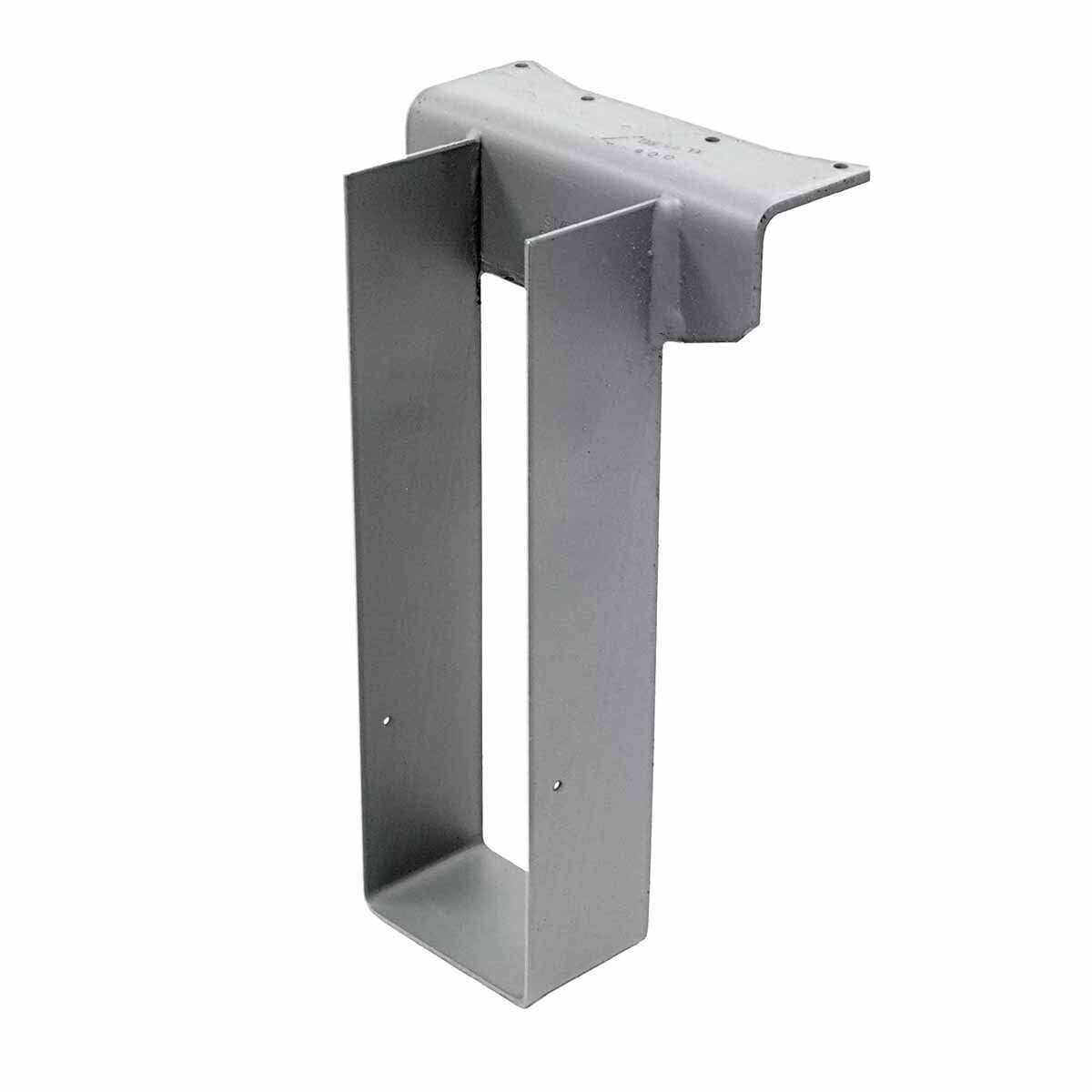

Simpson Strong-Tie WP46 Welded Top-Flange Joist Hanger for 4x6
$30.70
$44.15
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie WP46 Description

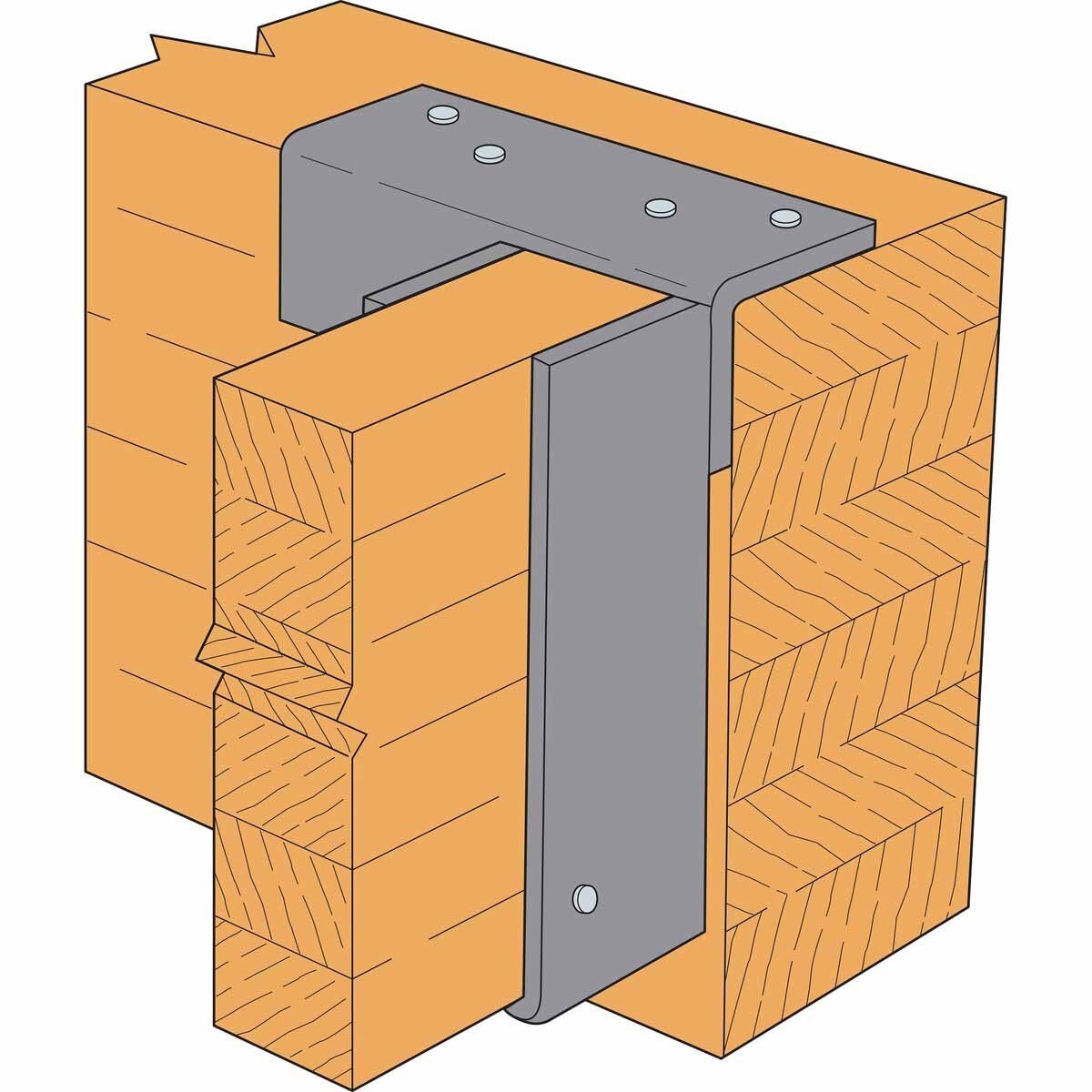

The Simpson WP46 Welded Purlin Hanger is a robust and versatile top-flange hanger designed for wood-to-wood and wood-to-steel connections, ensuring superior load capacity and structural integrity.
Simpson Strong-Tie WP46 Includes
- (1) Welded Top-Flange Joist Hanger
Simpson Strong-Tie WP46 Features

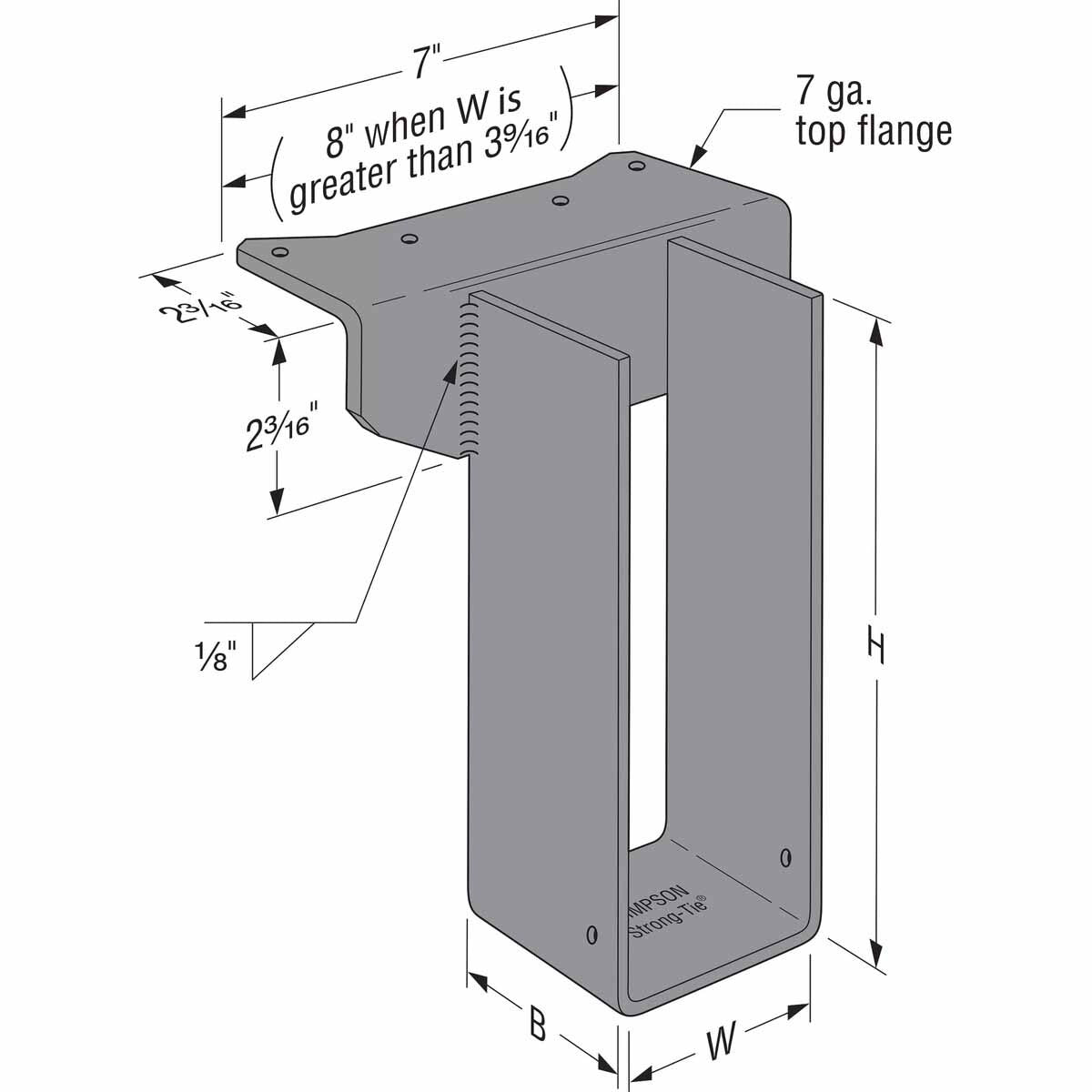

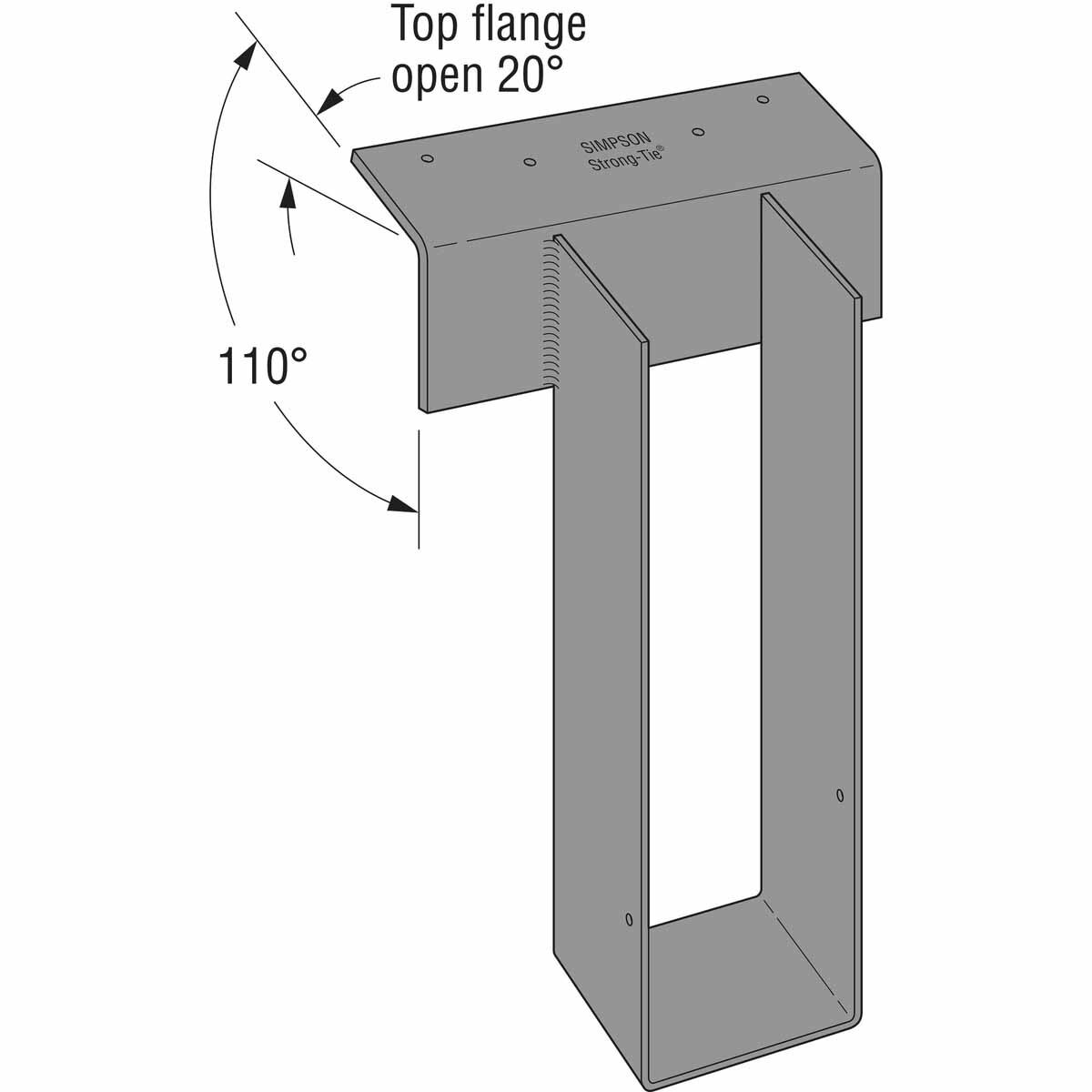

- Highly modifiable with alteration options including opened/closed top flange and offset top flange

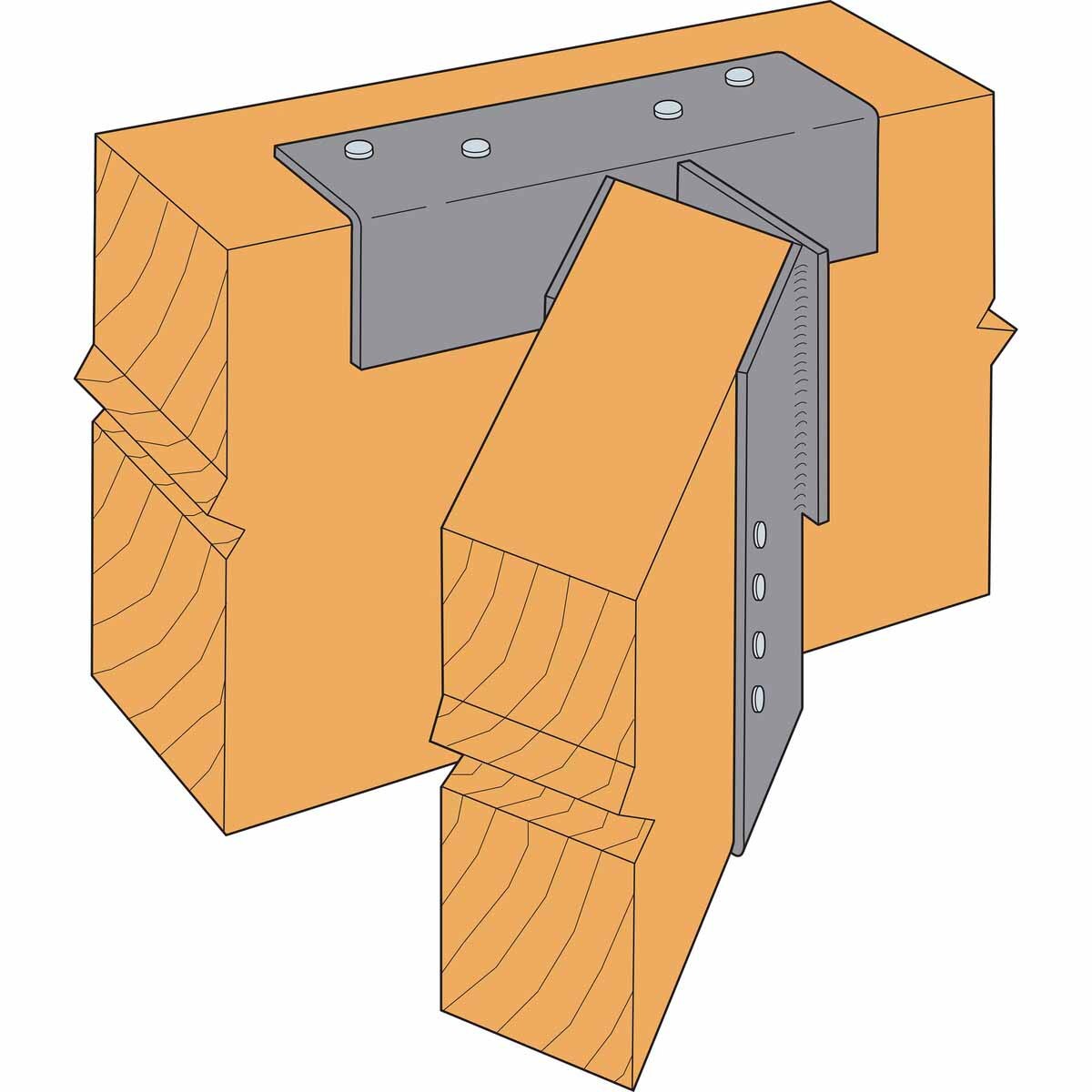

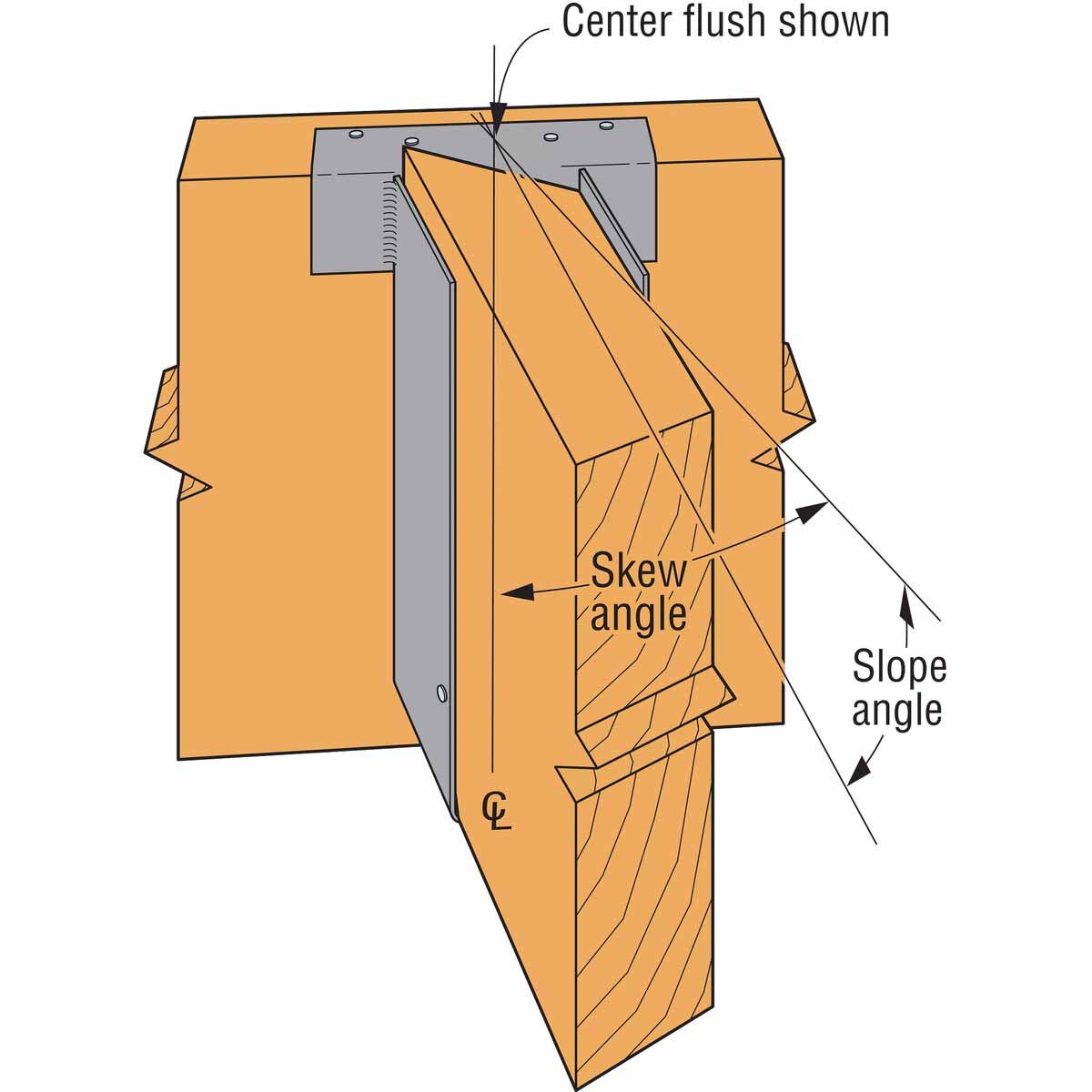

- Top flange may be sloped to a maximum of 35° to accommodate a sloped header
- Features a solid one-piece top flange that provides extra stability in panelized roof applications
- Manufactured from 12-gauge steel for enhanced strength and durability
- Simpson Strong-Tie gray paint provides protection against environmental factors
Simpson Strong-Tie WP46 Applications

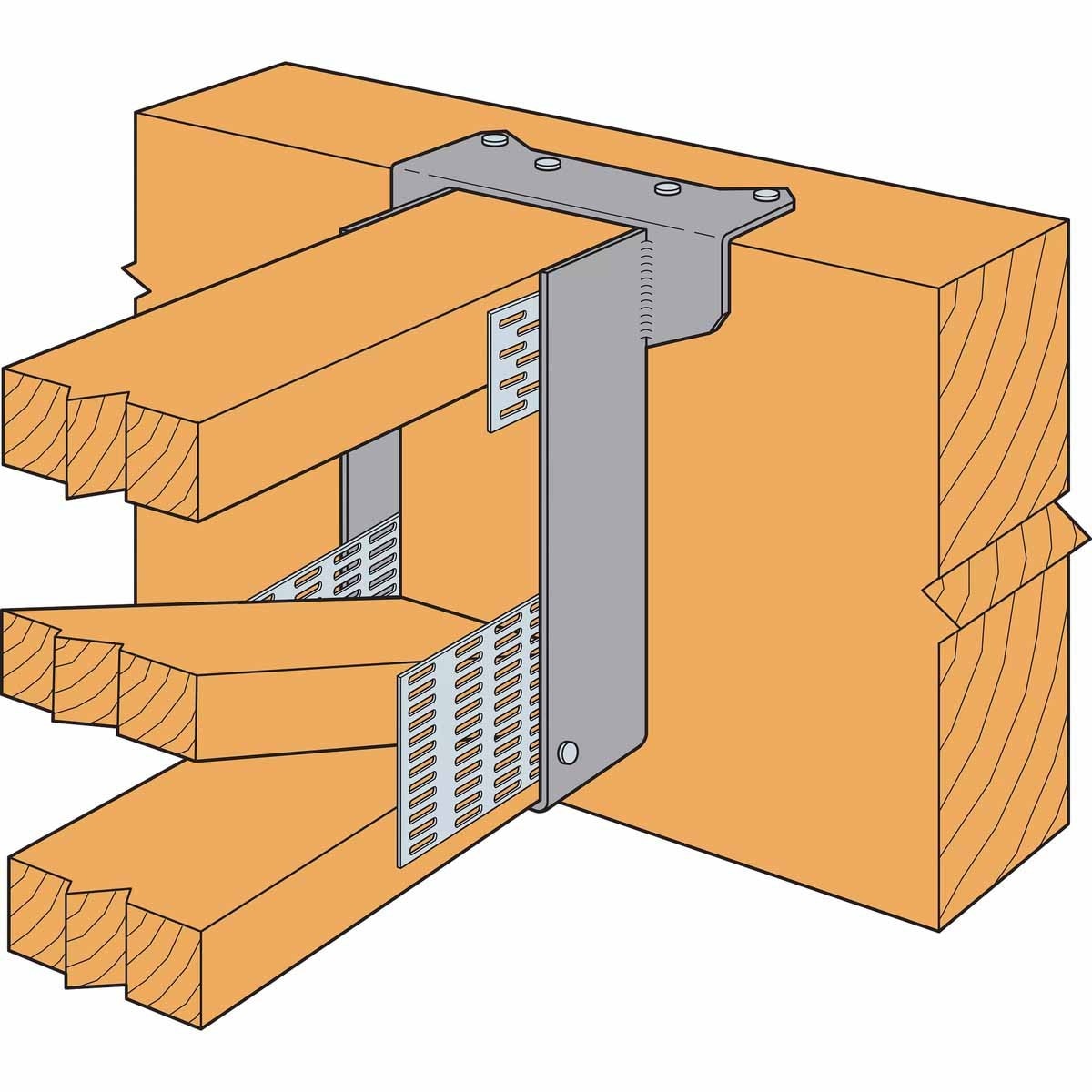

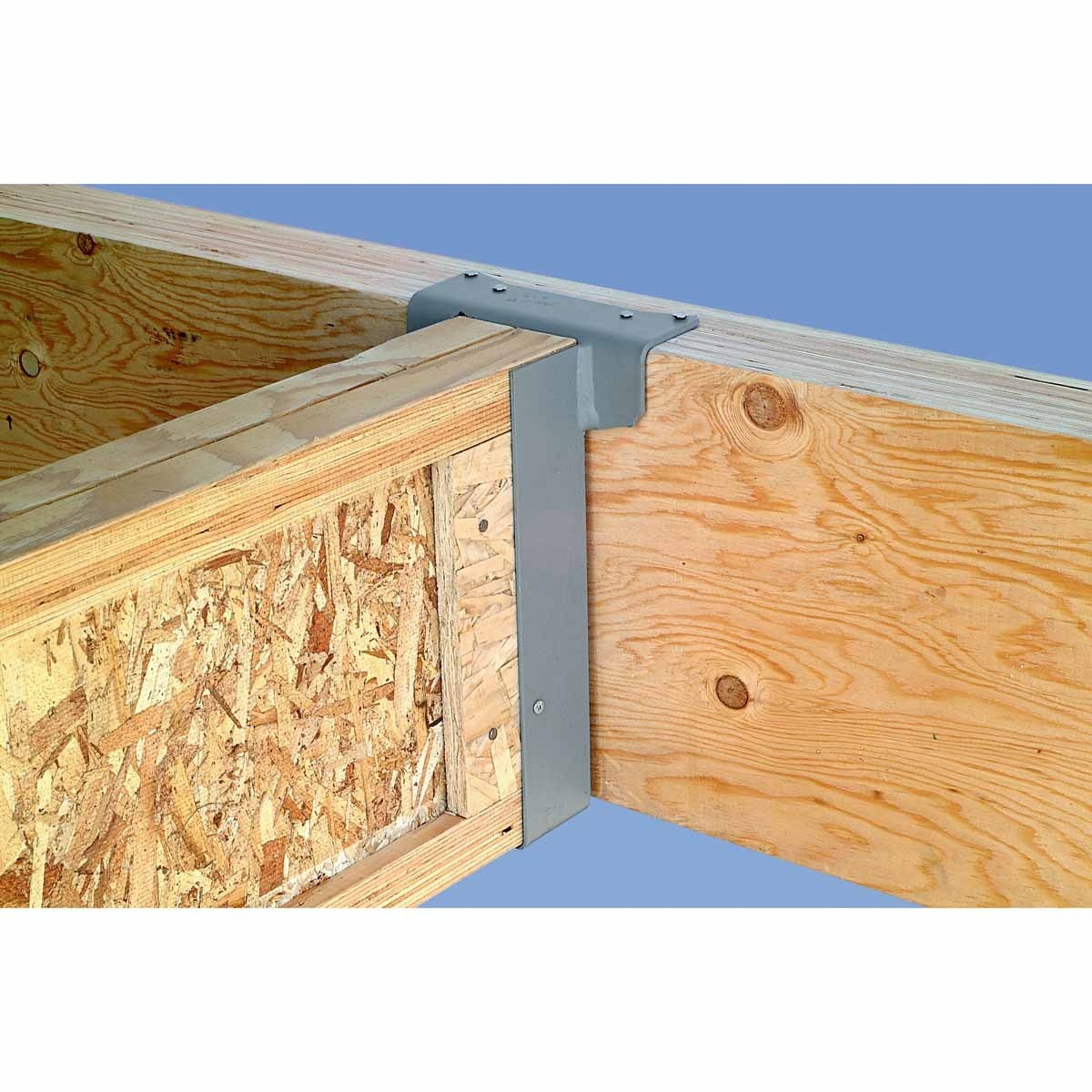

- Residential and Commercial Projects: Ideal for floor, ceiling, and roof framing in various structural applications.

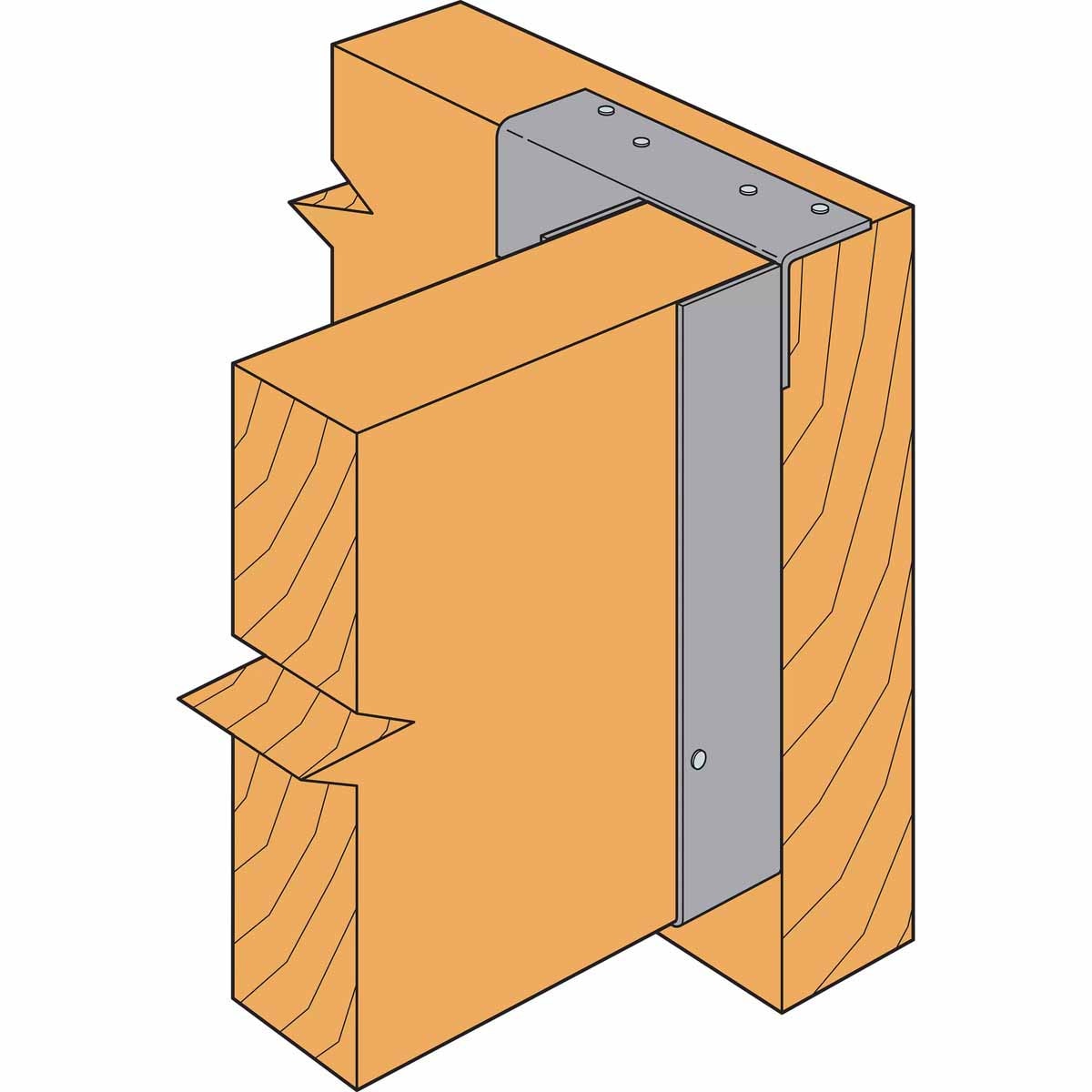

- Joist-to-Purlin Connections: Ensures a secure, load-bearing connection between wood joists and steel or wood beams.
- Wood-to-Steel Construction: Suitable for installations requiring welded steel headers.
Simpson Strong-Tie WP46 Installation Overview
- Use all specified fasteners.
- Ensure joist dimensions align with hanger specifications for a secure and stable connection.
- For wood-to-steel applications, weld the hanger to the steel header using a minimum 1 1/2"-long fillet weld on each side of the top flange, ensuring the weld size matches the hanger material thickness.

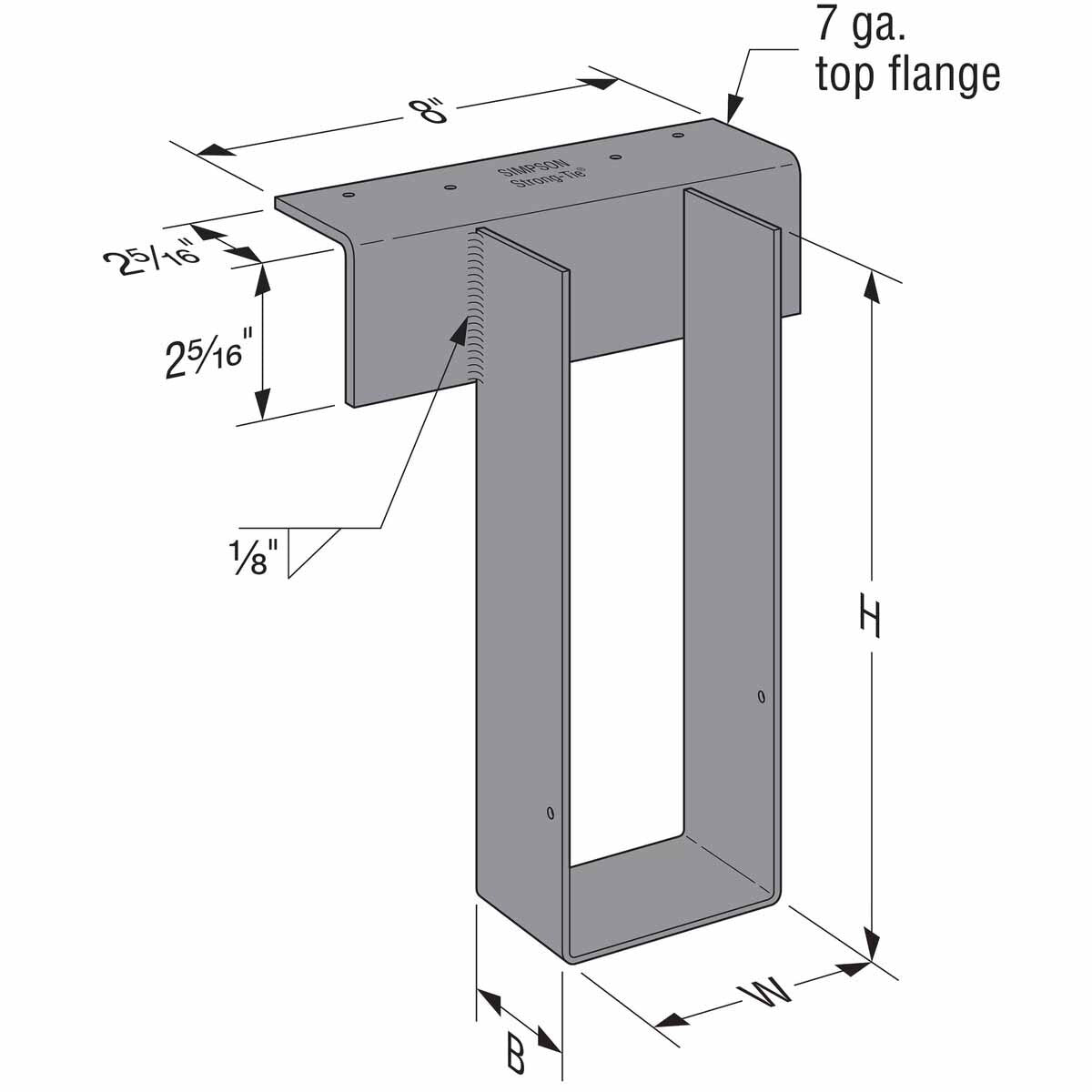

Simpson Strong-Tie WP46 Specifications
| Material | Carbon Steel |
| Finish | Gray Paint |
| Thickness | 12 Gauge |
| Joist size | 4" X 6" |
| For Treated Lumber | No |
| Weight | 2.6 lb |
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values.
