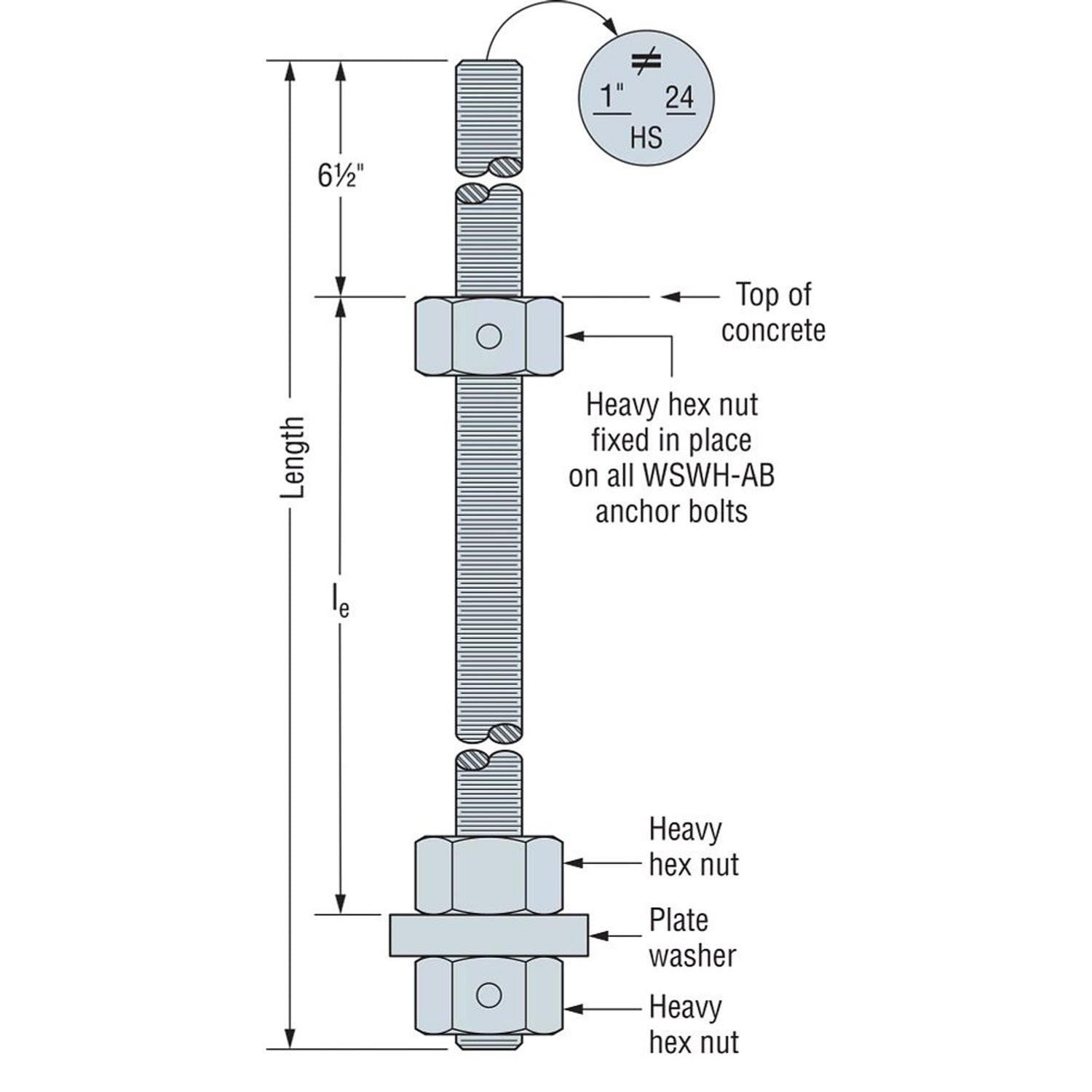

Simpson Strong-Tie WSWH-AB1X24HS Description
The WSWH-AB1X24HS Anchor Bolt is designed for wood shearwalls, offering high strength and reliable performance.
Simpson Strong-Tie WSWH-AB1X24HS Includes
- (1) WSWH-AB1X24HS Anchor Bolt
- (1) Extra Nut
Simpson Strong-Tie WSWH-AB1X24HS Features
- Fixed-in-place heavy hex compression nut to improve performance
- Head stamp for easy identification and inspection
- Supplied with extra nut for attachment to anchor template
Simpson Strong-Tie WSWH-AB1X24HS Applications
- Anchorage solutions for wood shearwalls
- Structural reinforcement in concrete foundations
Simpson Strong-Tie WSWH-AB1X24HS Installation Overview
- Install WSWH-AB before the concrete is poured using the appropriate WSWH-RT template and supplied nut; locate per designer
- Install shear reinforcement per the registered design professional before concrete is poured
- Foundation design by designer
Simpson Strong-Tie WSWH-AB1X24HS Specifications
| Material | ASTM F1554 Grade 36; high-strength (HS) ASTM A193 Grade B7 |
| Dimensions | 1 x 24 |
| Length of Embedment | 15 1/2 in. |
| Packaging Quantity | 1 |
Toolup Part # :
818971
