Simpson Strong-Tie WSWH-BS12 Description
The WSWH-BS12 Anchor Bolt Stabilizer is designed to stabilize anchor bolts and prevent movement during concrete placement, ensuring secure and reliable anchorage for high-strength wood shearwalls.
Simpson Strong-Tie WSWH-BS12 Includes
- (1) WSWH-BS12 Anchor Bolt Stabilizer
Simpson Strong-Tie WSWH-BS12 Features
- Stabilizes anchor bolts and helps prevent movement during concrete placement
- Holes to accommodate 1/2"-diameter dowels for stabilization
- Works with all WSWH-RT high-strength wood shearwall anchor bolt templates
Simpson Strong-Tie WSWH-BS12 Applications
- Anchorage solutions for high-strength wood shearwalls
- Works with all models of reusable Strong-Wall WSWH-RT high-strength wood shearwall anchor bolt templates

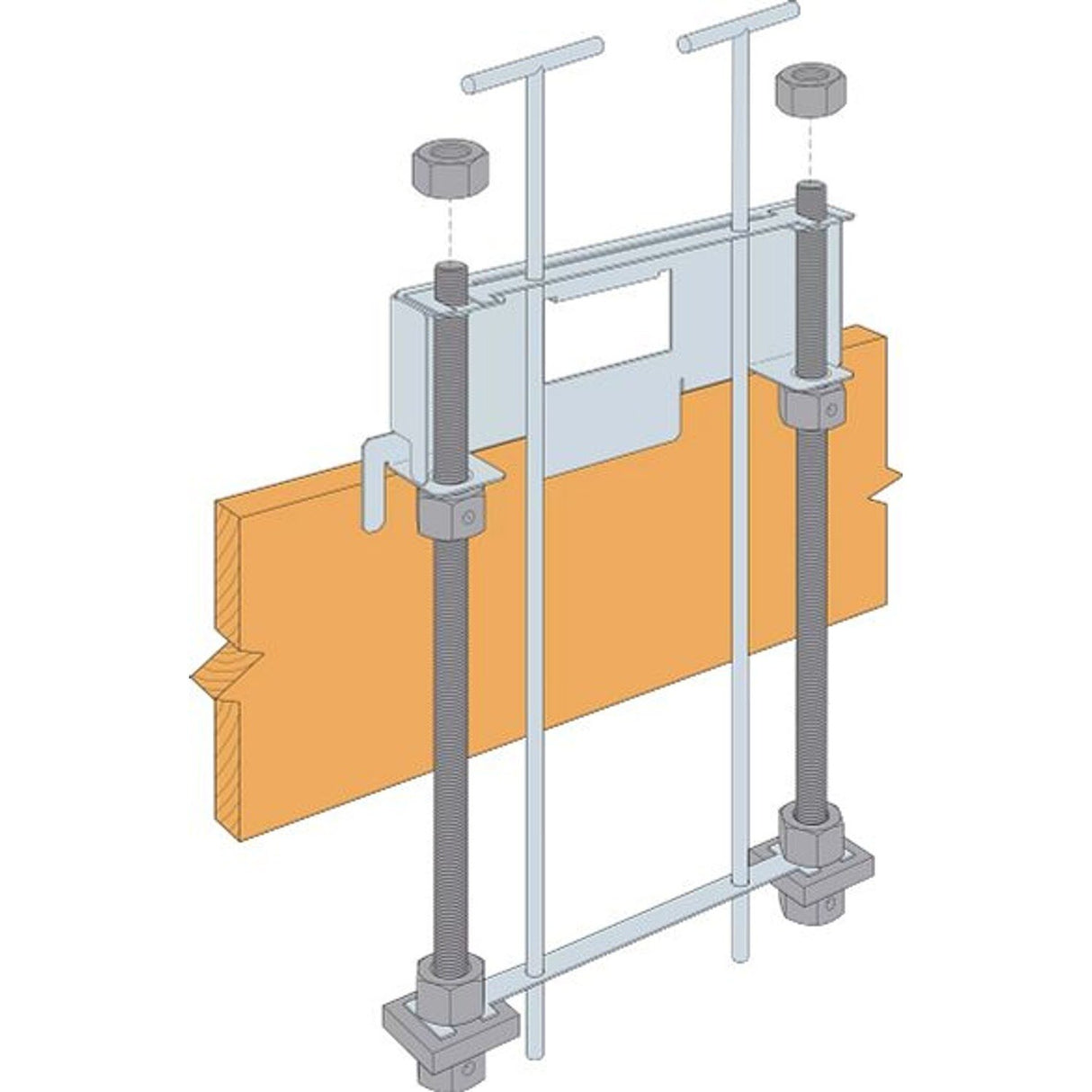

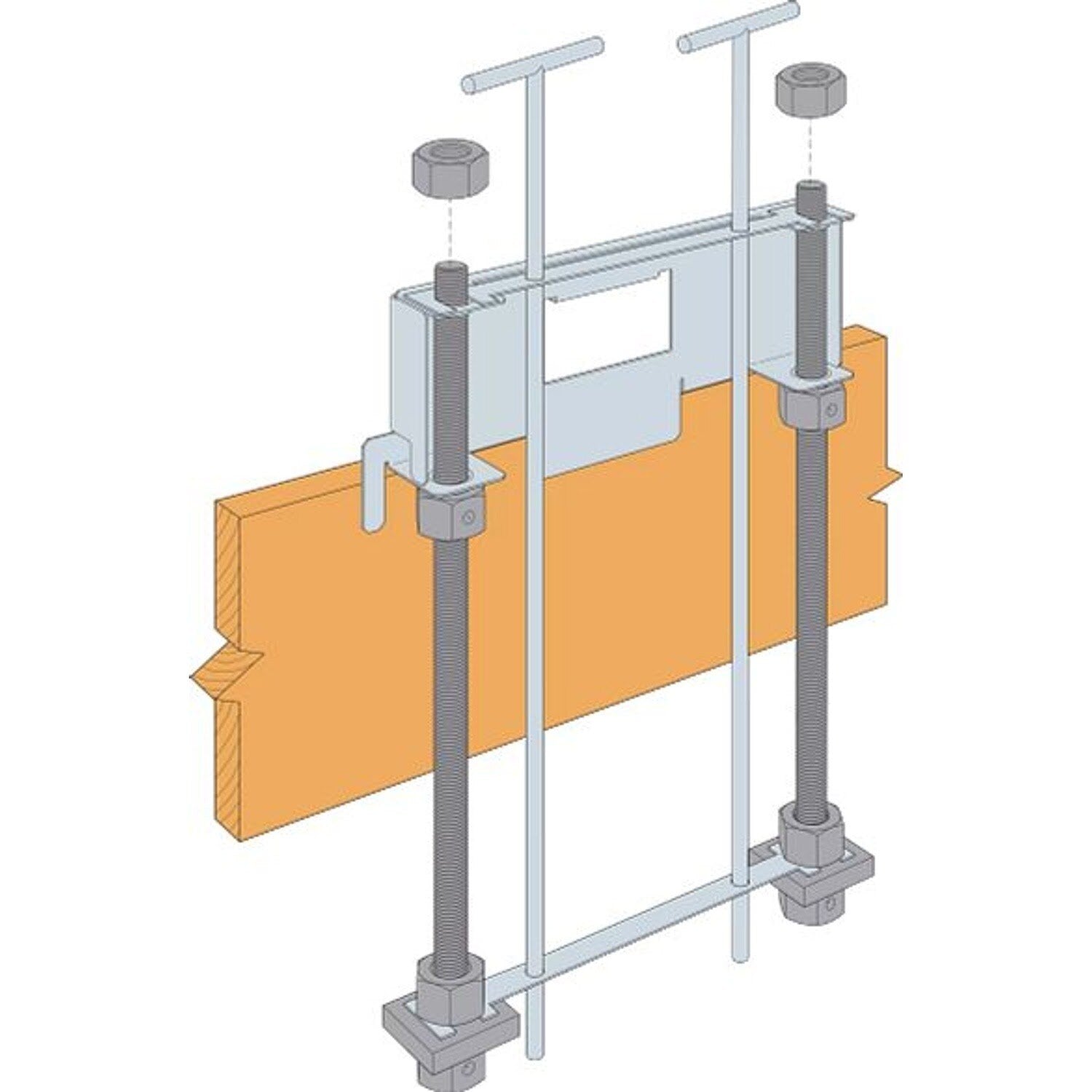

Simpson Strong-Tie WSWH-BS12 Installation Overview
- Use WSWH-BS anchor bolt stabilizers in pairs.
- Install one bolt stabilizer at embedded plate washers and secure with upper nut of the nut/plate washer assembly.
- Install second bolt stabilizer at the top of the template and secure with nuts supplied with the anchor bolts.
- Drive 1/2"- dowels through the holes in the bolt stabilizers and into the ground. The 1/2"- dowels are removed immediately after concrete placement, prior to consolidation.
Simpson Strong-Tie WSWH-BS12 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Packaging Quantity | 1 |
Toolup Part # :
818969
