Simpson Strong-Tie WSWH-BS24 Description
The WSWH-BS24 Anchor Bolt Stabilizer is designed to stabilize anchor bolts and prevent movement during concrete placement, ensuring secure and reliable installation.
Simpson Strong-Tie WSWH-BS24 Includes
- (1) WSWH-BS24 Anchor Bolt Stabilizer
Simpson Strong-Tie WSWH-BS24 Features
- Stabilizes anchor bolts and helps prevent movement during concrete placement
- Holes to accommodate 1/2"-diameter dowels (not supplied) for stabilization
- Works with all WSWH-RT high-strength wood shearwall anchor bolt templates
Simpson Strong-Tie WSWH-BS24 Applications
- Anchorage Solutions for high-strength wood shearwalls
- Works with all models of reusable Strong-Wall WSWH-RT high-strength wood shearwall anchor bolt templates

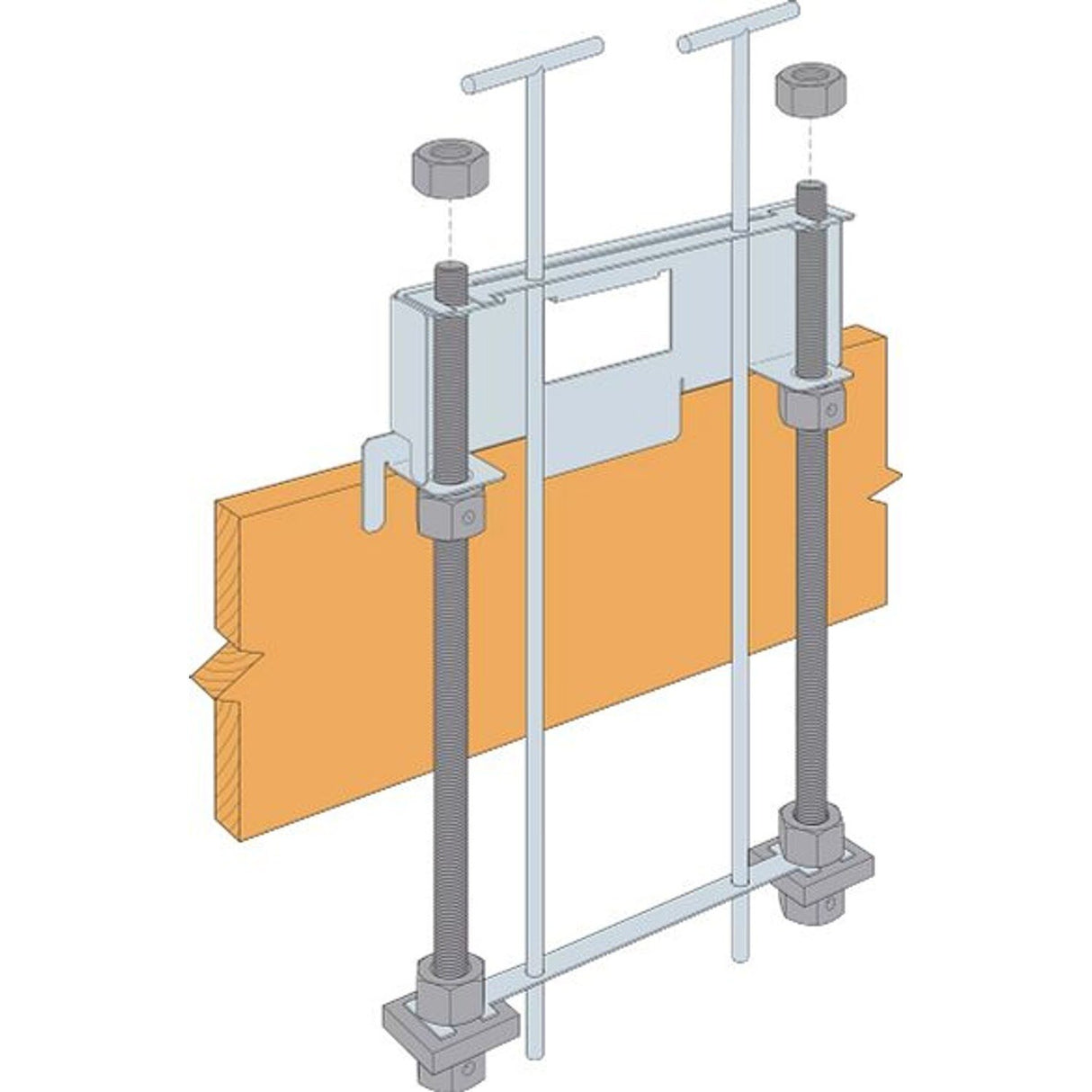

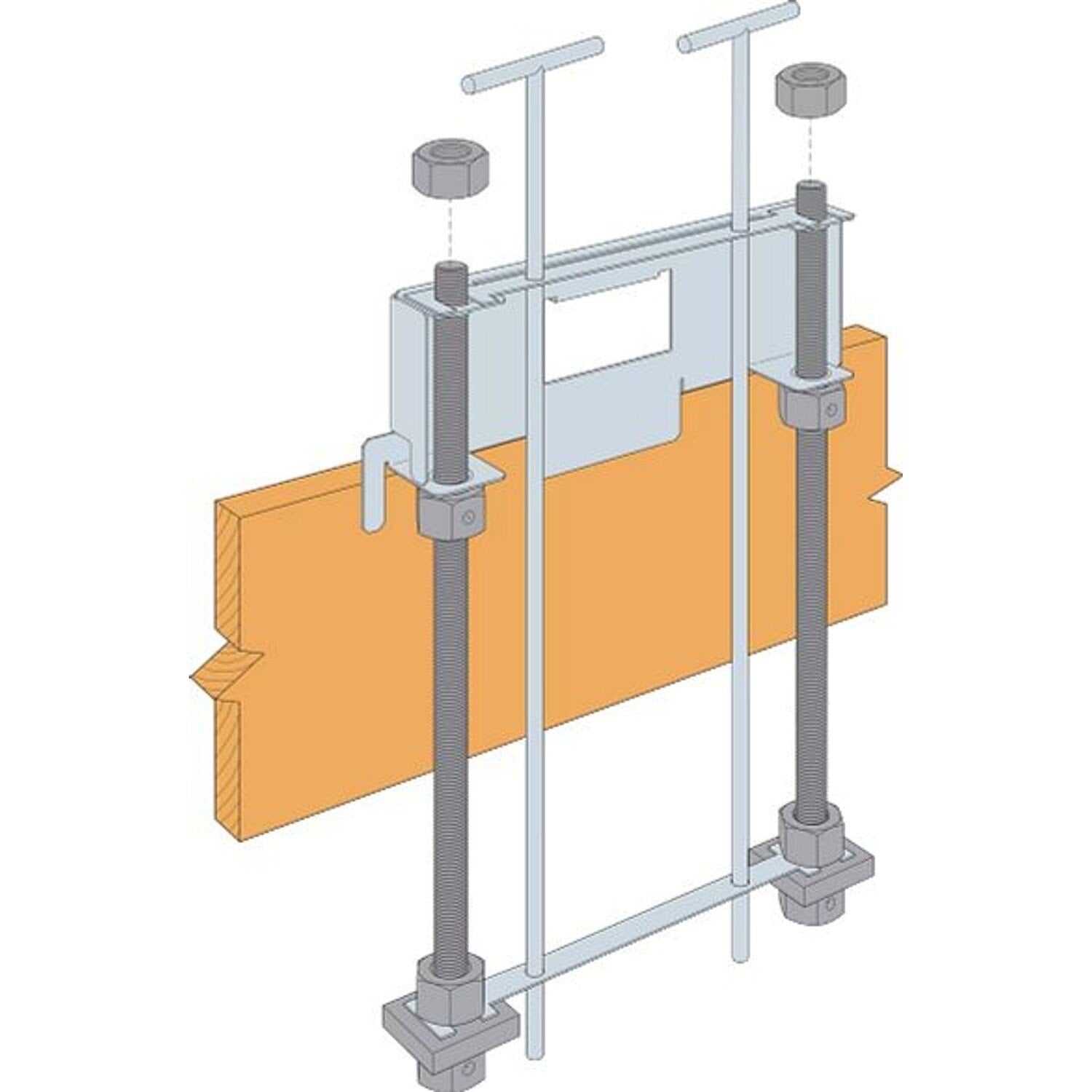

Simpson Strong-Tie WSWH-BS24 Installation Overview
- Use WSWH-BS anchor bolt stabilizers in pairs
- Install one bolt stabilizer at embedded plate washers and secure with upper nut of the nut/plate washer assembly
- Install second bolt stabilizer at the top of the template and secure with nuts supplied with the anchor bolts
- Drive 1/2" dowels through the holes in the bolt stabilizers and into the ground
- Remove the 1/2" dowels immediately after concrete placement, prior to consolidation
Simpson Strong-Tie WSWH-BS24 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
Toolup Part # :
818962
