Simpson Strong-Tie WSWH-HSR1X24KT Description
The WSWH-HSR1X24KT is a high-strength wood shearwall extension kit designed for tall stem wall anchorage, providing reliable performance and easy installation.
Simpson Strong-Tie WSWH-HSR1X24KT Includes
- (1) High-Strength Wood Shearwall Extension Kit

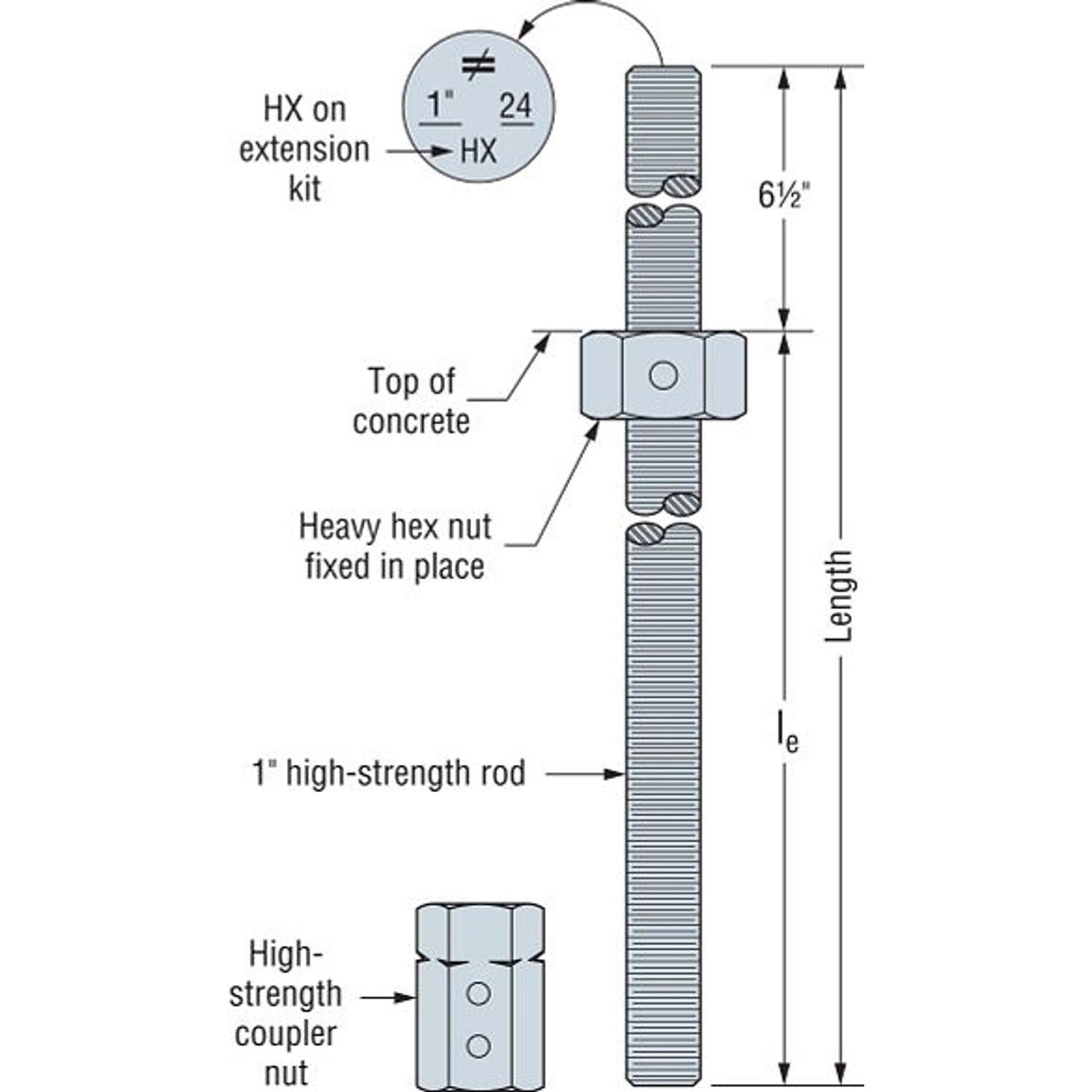

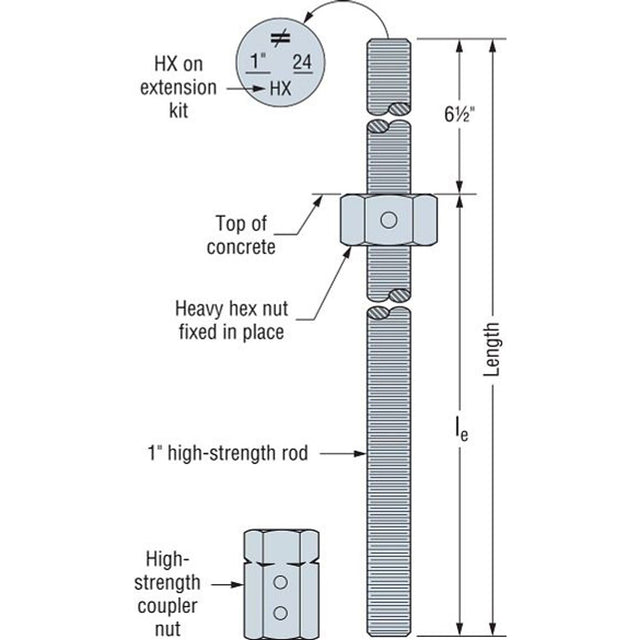

Simpson Strong-Tie WSWH-HSR1X24KT Features
- Fixed-in-place heavy hex compression nut to improve performance
- Head stamp for easy identification and inspection
- High-strength coupler for attachment to WSWH-AB(HS)
Simpson Strong-Tie WSWH-HSR1X24KT Applications
- Anchorage solutions for tall stem walls
- Structural reinforcement in lateral systems
Simpson Strong-Tie WSWH-HSR1X24KT Installation Overview
- Install coupler nut and high-strength all-thread rod with fixed nut on WSWH-AB
- Install WSWH-HSR and WSWH-AB(HS) assembly before the concrete is poured using the appropriate WSWH-RT template and supplied nut; locate per designer
- Install shear reinforcement before concrete is poured
- Foundation design by designer
Simpson Strong-Tie WSWH-HSR1X24KT Specifications
| Material | High-strength (HS) ASTM A193 Grade B7 |
| Wall Model | WSWH12, WSWH18, WSWH24 |
| Dimensions | 1 x 24 |
| Length of Embedment | 17 1/2 in. |
| Packaging Quantity | 1 |
NOTE: Do not use in place of WSWH-AB.
