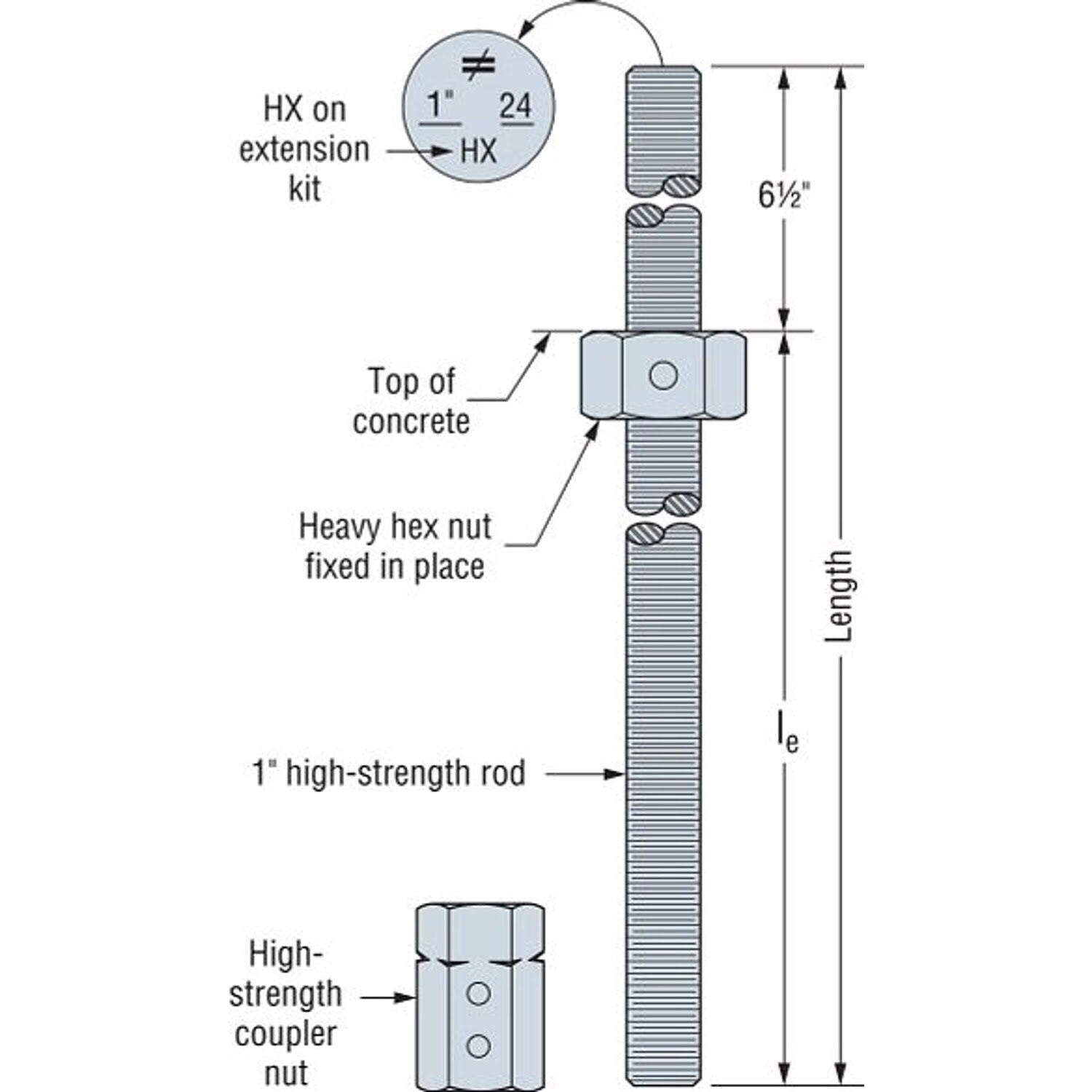

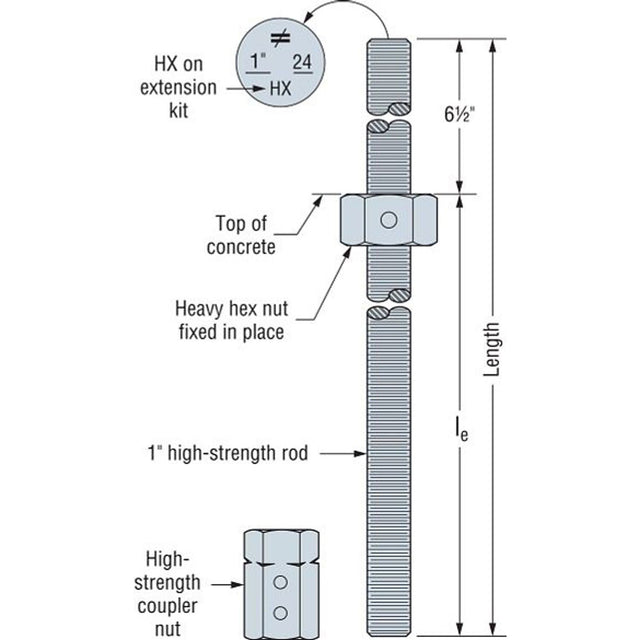

Simpson Strong-Tie WSWH-HSR1X36KT Description
The Strong-Wall High-Strength Wood Shearwall Extension Kit is designed for tall stem wall anchorage, providing reliable and high-strength performance.
Simpson Strong-Tie WSWH-HSR1X36KT Includes
- (1) High-Strength Wood Shearwall Extension Kit
Simpson Strong-Tie WSWH-HSR1X36KT Features
- Fixed-in-place heavy hex compression nut to improve performance
- Head stamp for easy identification and inspection
- High-strength coupler for attachment to WSWH-AB(HS)
Simpson Strong-Tie WSWH-HSR1X36KT Applications
- Anchorage solutions for tall stem walls
- Structural reinforcement in construction projects
Simpson Strong-Tie WSWH-HSR1X36KT Installation Overview
- Install coupler nut and high-strength all-thread rod with fixed nut on WSWH-AB
- Install WSWH-HSR and WSWH-AB(HS) assembly before the concrete is poured using the appropriate WSWH-RT template and supplied nut; locate per designer
- Install shear reinforcement before concrete is poured
- Foundation design by designer
Simpson Strong-Tie WSWH-HSR1X36KT Specifications
| Material | High-strength (HS) ASTM A193 Grade B7 |
| Special Order | FALSE |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
| Dimensions | 1 x 36 |
| Length of Embedment | 29 1/2 in. |
NOTE: Do not use in place of WSWH-AB.
Toolup Part # :
818965
