Simpson Strong-Tie WSWH-PK Description
The Strong-Wall High-Strength Wood Shearwall Portal Kit is designed for portal frame systems, offering superior performance and simplified installation.

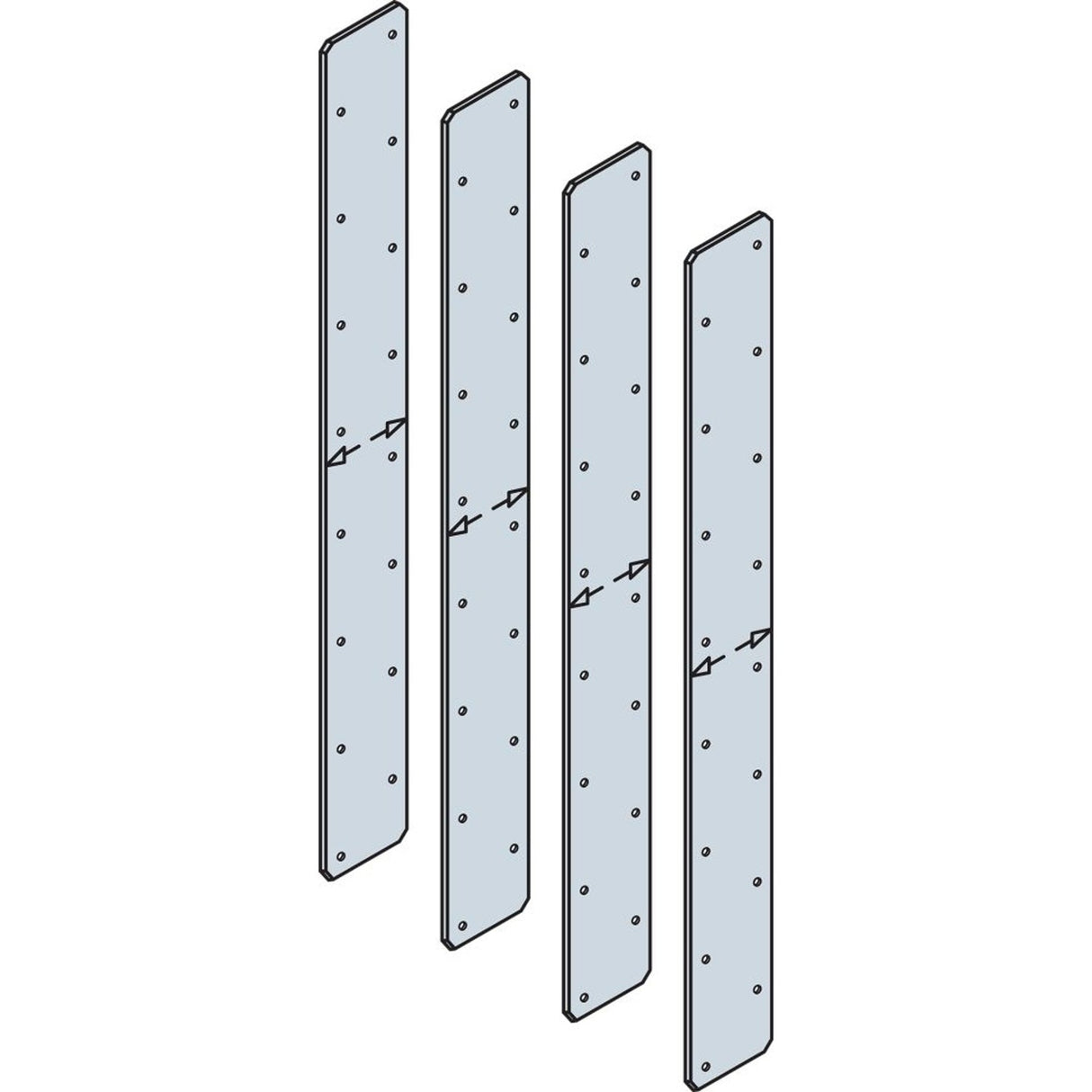

Simpson Strong-Tie WSWH-PK Includes
- (4) WSWH-PS straps
Simpson Strong-Tie WSWH-PK Features
- May be used in single- or double-portal applications and installed with a minimum 3" x 11 1/4" single- or multi-ply header depending upon loading and span requirements
- Simplifies installation to provide superior performance
- Straps designed specifically for Strong-Wall high-strength wood shearwalls in portal applications
Simpson Strong-Tie WSWH-PK Applications
- Garage Portal System on Concrete Foundation
Simpson Strong-Tie WSWH-PK Installation Overview
- Maintain 1/2" distance from edge of panel and end of header
- Install with twenty 0.148" x 2 1/2" (min.) nails — ten in header and ten in panel
Simpson Strong-Tie WSWH-PK Specifications
| Material | 10 gauge |
| Finish | G90 galvanized |
| Special Order | FALSE |
| API Approval | Approved - Full |
NOTE: Portal-frame connection kit comes with panels that are 100" or less in height. The kit must be ordered separately for panels over 100" tall.
Toolup Part # :
818961
