Simpson Strong-Tie WSWH-RTEL24 Description

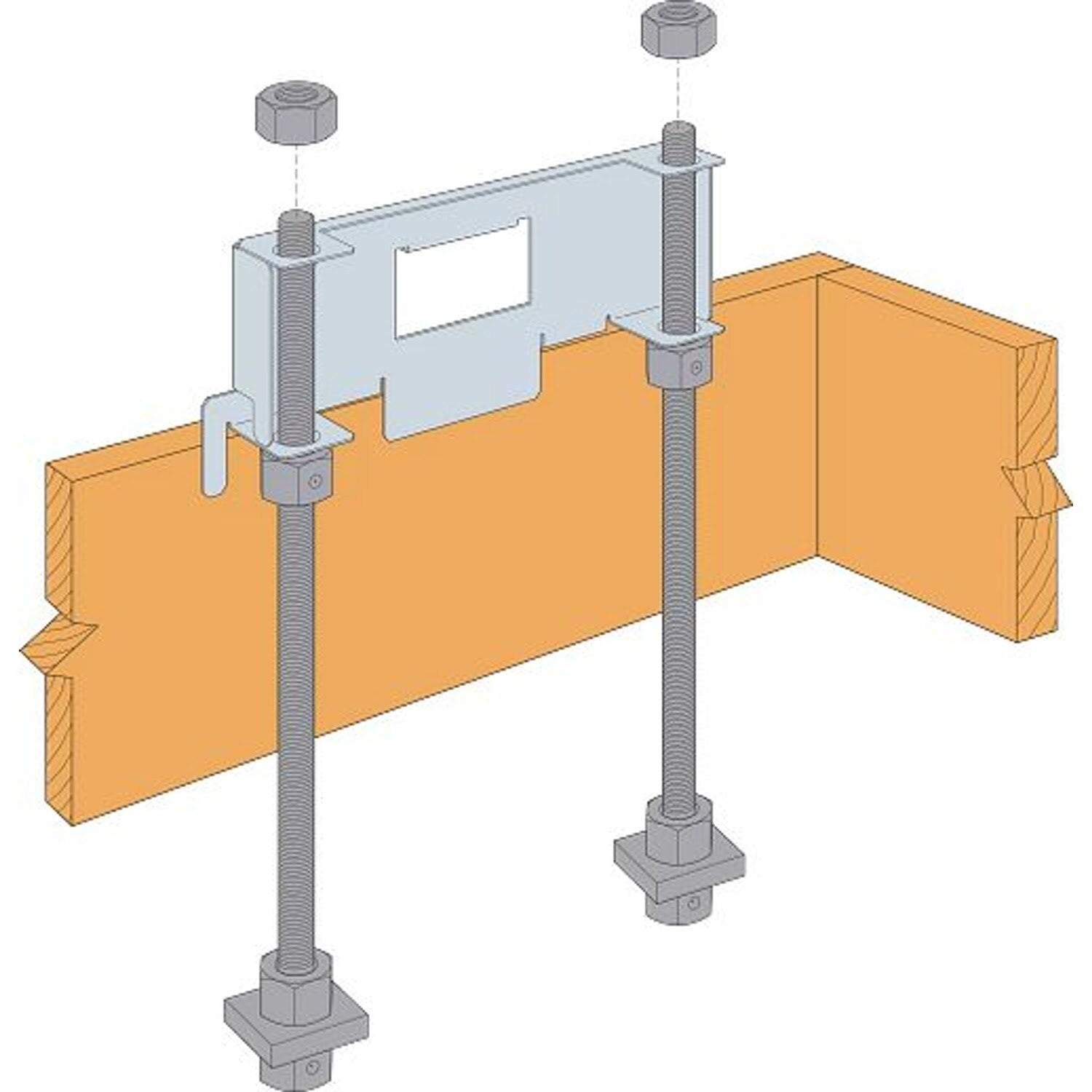

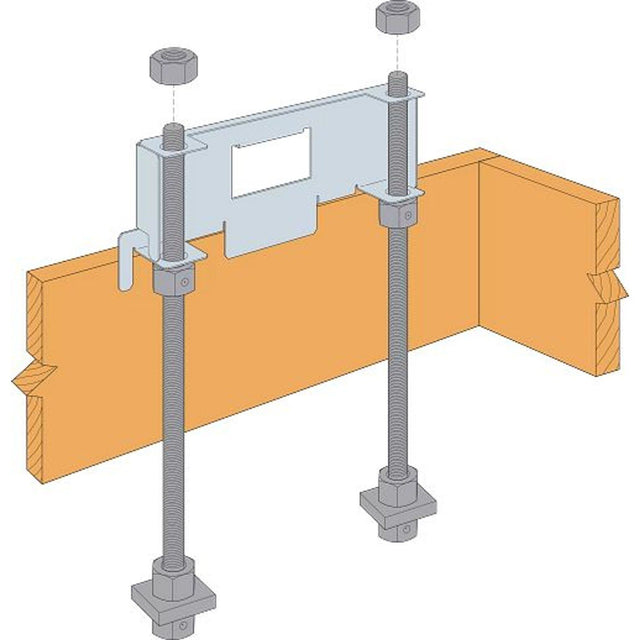

The WSWH-RTEL24 is an extended-leg anchor bolt template designed for precise installation of Strong-Wall high-strength wood shearwalls.
Simpson Strong-Tie WSWH-RTEL24 Includes
- (1) WSWH-RTEL24 Extended-Leg Anchor Bolt Template
Simpson Strong-Tie WSWH-RTEL24 Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTEL24 Applications
- Exterior and interior installations at the top of the form
- Panel form installations below the top of the form
- Brick ledge foundations
- Flush installations with the inside face of a 2x6 sill plate
- Stemwall or footing installations where concrete is not poured to the top of the form
Simpson Strong-Tie WSWH-RTEL24 Installation Overview
- Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
Simpson Strong-Tie WSWH-RTEL24 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Special Order | FALSE |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
