Simpson Strong-Tie WSWH-RTELPF12 Description
The Strong-Wall Extended-Leg Panel-Form Anchor Bolt Template is designed for precise placement of anchor bolts in 12" shearwalls, ensuring compatibility with Strong-Wall high-strength wood shearwalls.
Simpson Strong-Tie WSWH-RTELPF12 Includes
- (1) WSWH-RTELPF12 Template
Simpson Strong-Tie WSWH-RTELPF12 Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTELPF12 Applications

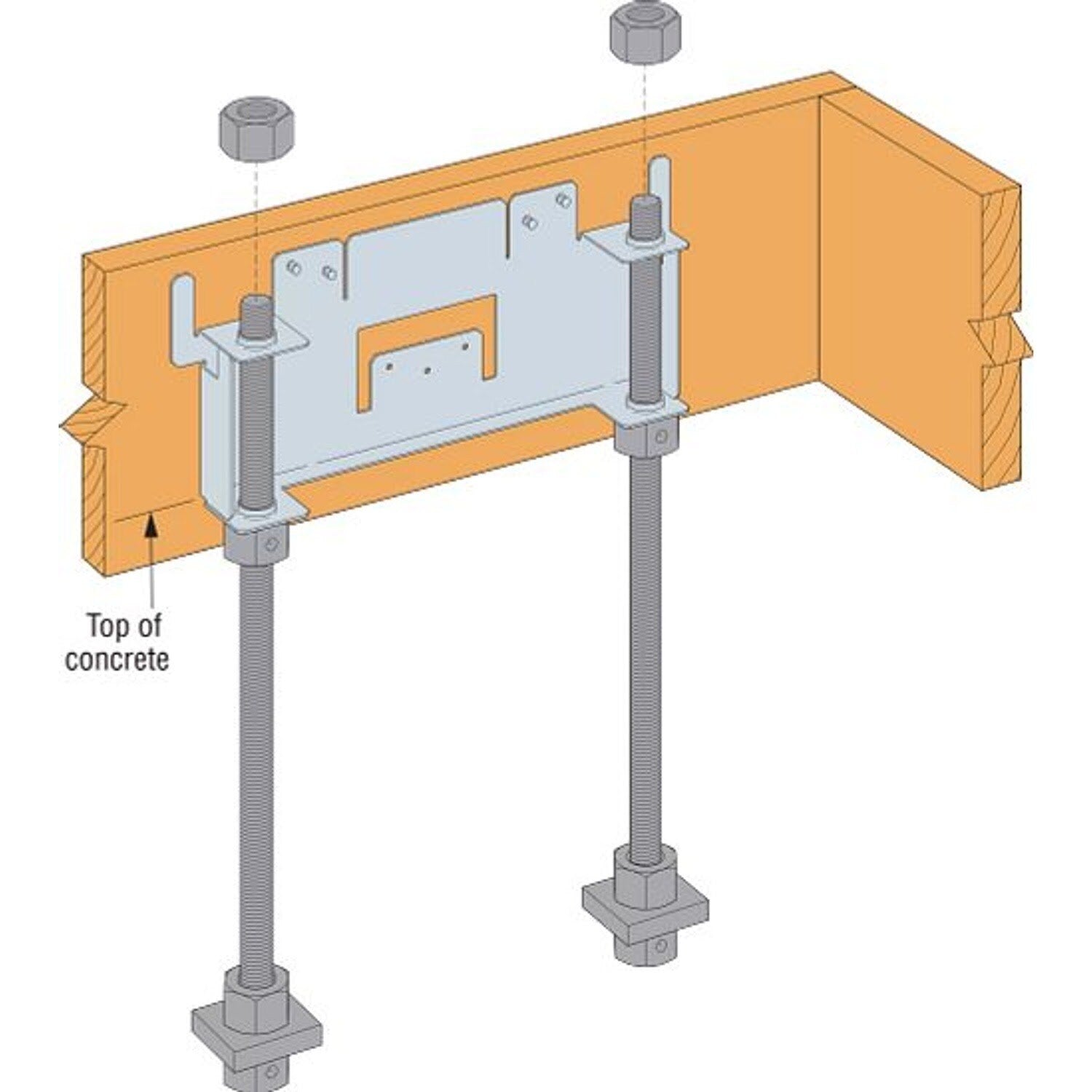

- RTELPF: Extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Simpson Strong-Tie WSWH-RTELPF12 Installation Overview
- Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
Simpson Strong-Tie WSWH-RTELPF12 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Application | Anchorage Solutions |
| Special Order | FALSE |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
Toolup Part # :
818949
