Simpson Strong-Tie WSWH-RTELPF18 Description
The WSWH-RTELPF18 is an extended-leg panel-form anchor bolt template designed for 18" high-strength wood shearwalls, providing accurate bolt placement and compatibility with various concrete foundation types.
Simpson Strong-Tie WSWH-RTELPF18 Includes
- (1) WSWH-RTELPF18 Extended-Leg Panel-Form Anchor Bolt Template
Simpson Strong-Tie WSWH-RTELPF18 Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTELPF18 Applications

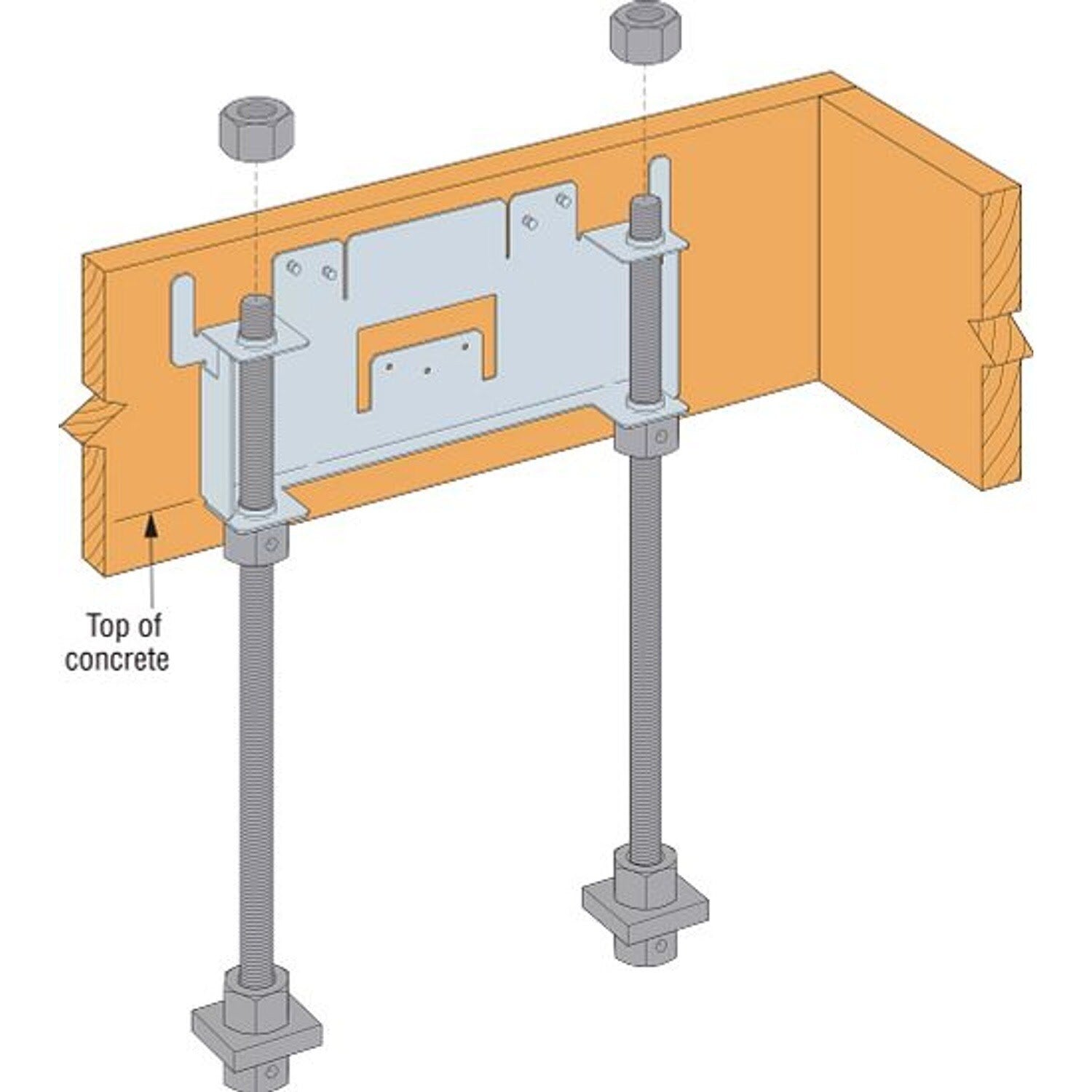

- RTELPF: Extended leg model used for panel form installations where WSWH is flush with the inside face of a 2x6 sill plate when concrete is not poured to the top of the form; typically to set anchors into a stemwall or extend down to the footing
Simpson Strong-Tie WSWH-RTELPF18 Installation Overview
- Installation of Strong-Wall high-strength wood shearwall anchor bolt templates varies by application
Simpson Strong-Tie WSWH-RTELPF18 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
Toolup Part # :
818951
