Simpson Strong-Tie WSWH-RTPF12 Description
The WSWH-RTPF12 is a panel-form anchor bolt template designed for 12" high-strength wood shearwalls, ensuring accurate bolt placement and compatibility with various concrete foundation types.
Simpson Strong-Tie WSWH-RTPF12 Includes
- (1) WSWH-RTPF12 Panel-Form Anchor Bolt Template
Simpson Strong-Tie WSWH-RTPF12 Features
- Accurately locates anchor bolts for Strong-Wall high-strength wood shearwalls
- Standard templates are reversible and can be used for interior or exterior applications
- Variety of configuration options to accommodate common concrete foundation types
Simpson Strong-Tie WSWH-RTPF12 Applications
- Exterior and interior installations for Strong-Wall high-strength wood shearwalls

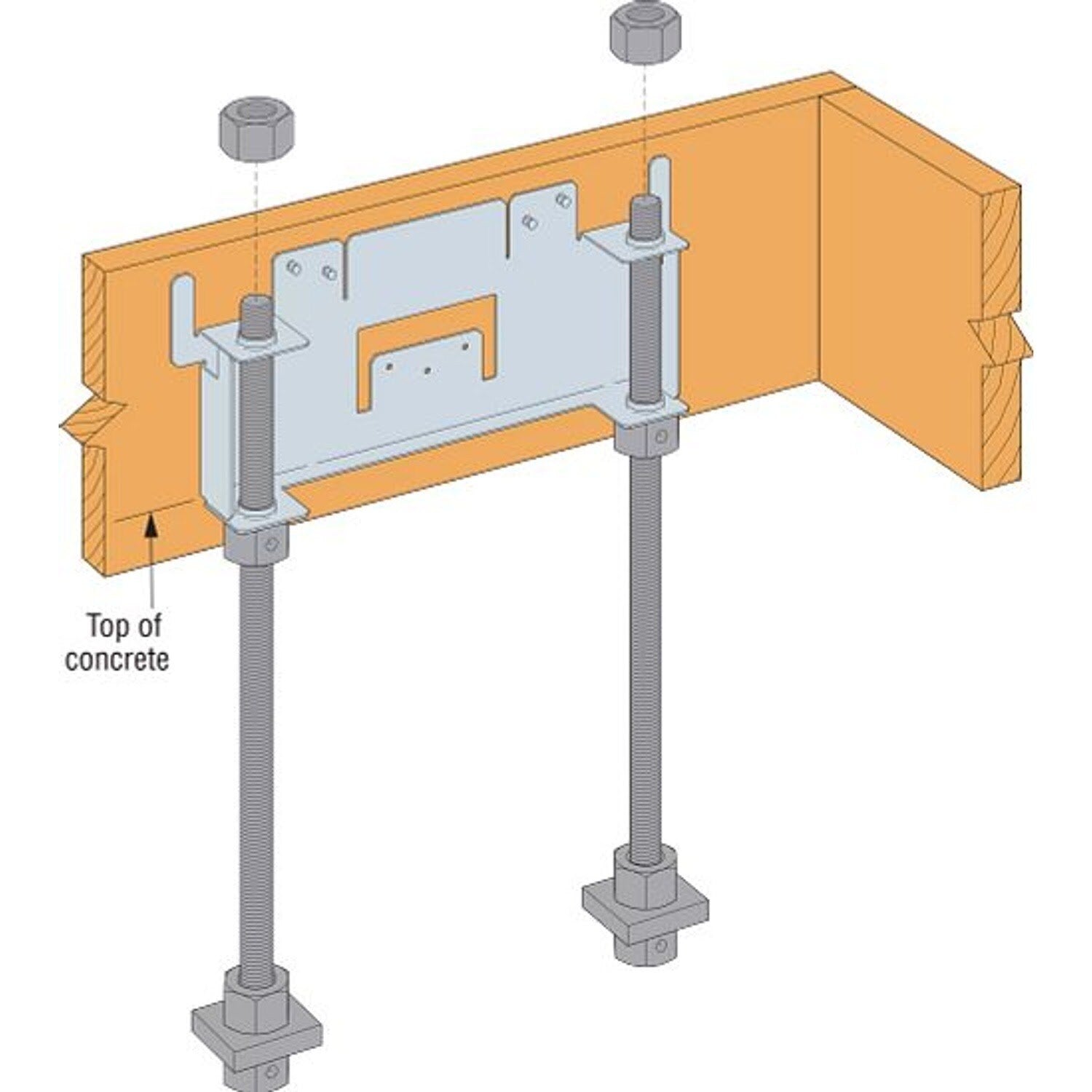

- Panel form installations below the top of the form
- Brick ledge foundations
- Flush installations with the inside face of a 2x6 sill plate
- Stemwall or footing anchor setups
Simpson Strong-Tie WSWH-RTPF12 Installation Overview
- Installation varies by application; refer to specific guidelines for each use case
Simpson Strong-Tie WSWH-RTPF12 Specifications
| Material | 14 gauge |
| Finish | G90 galvanized |
| Special Order | FALSE |
| Application | Anchorage Solutions |
| API Approval | Approved - Full |
NOTE: Templates are recommended and are required in some jurisdictions. Foundation design by the designer.
