Simpson Anchors | SKU:
X1S1016

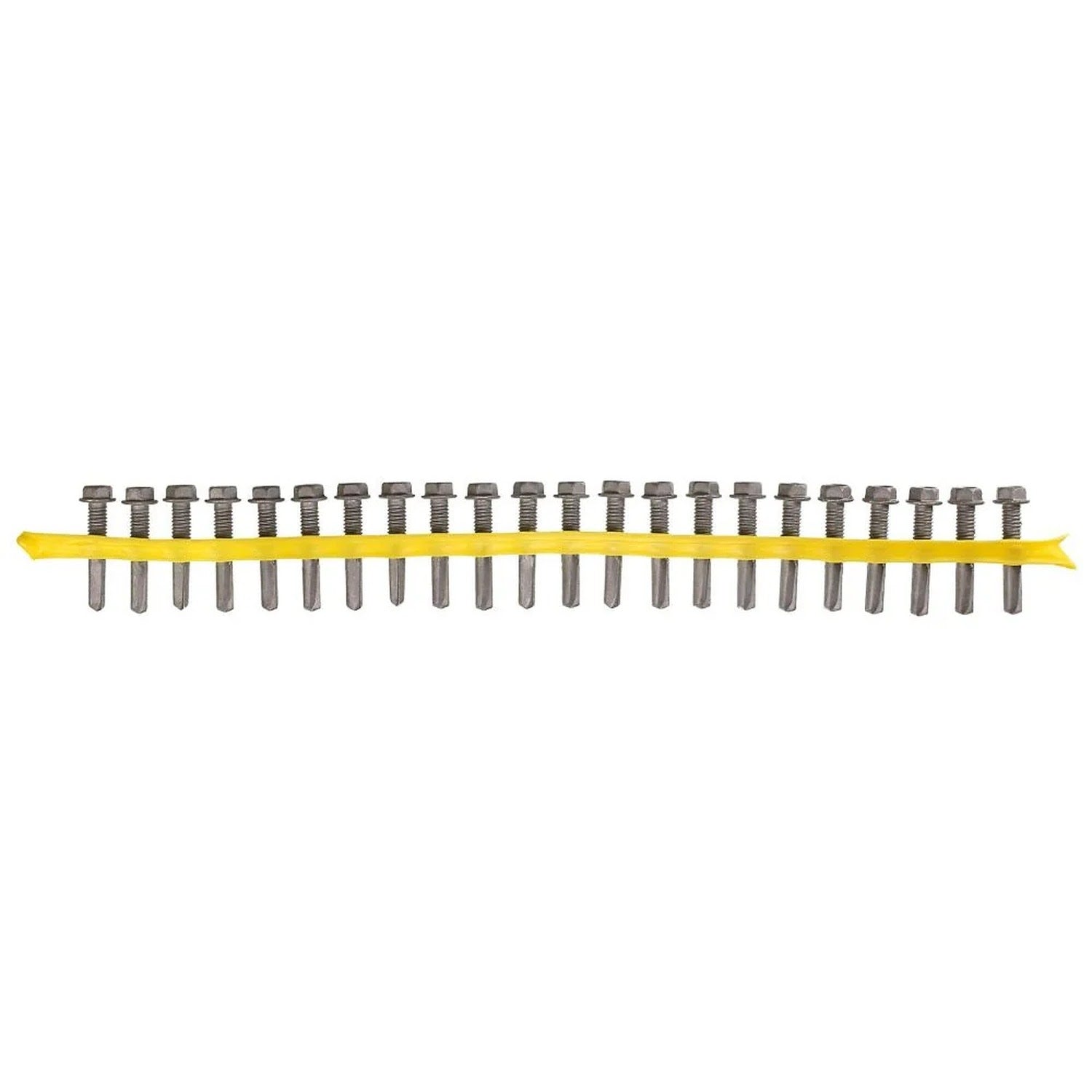

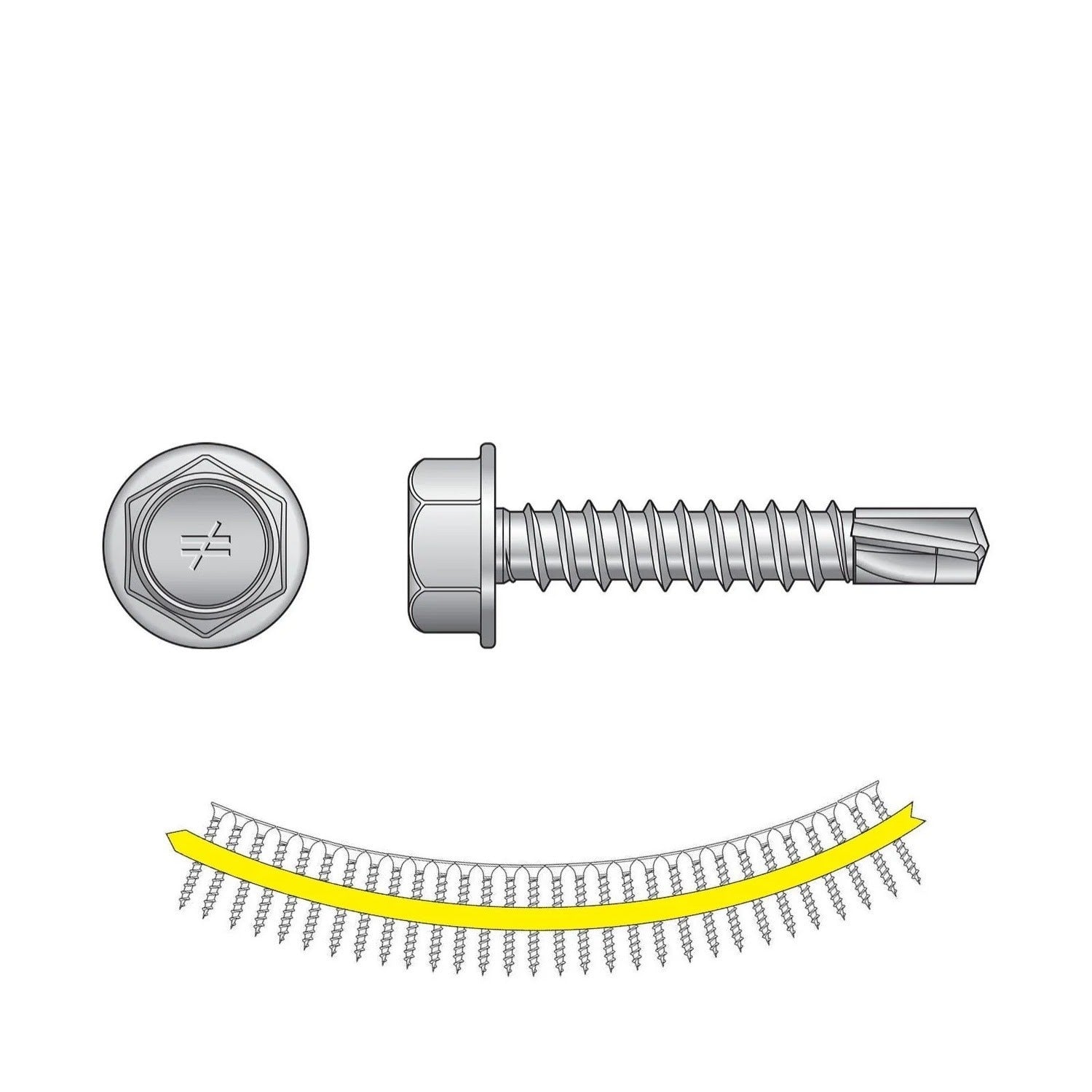

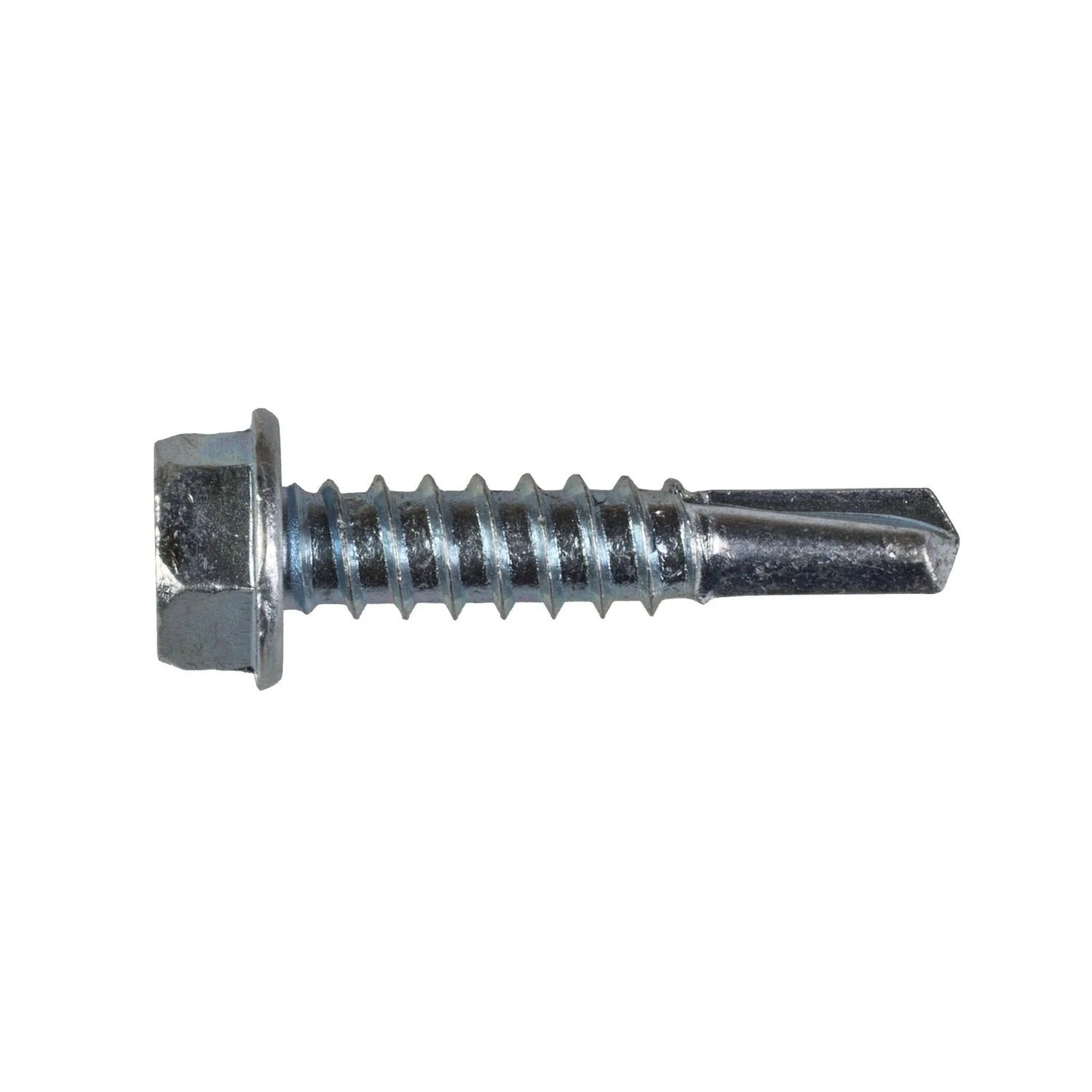

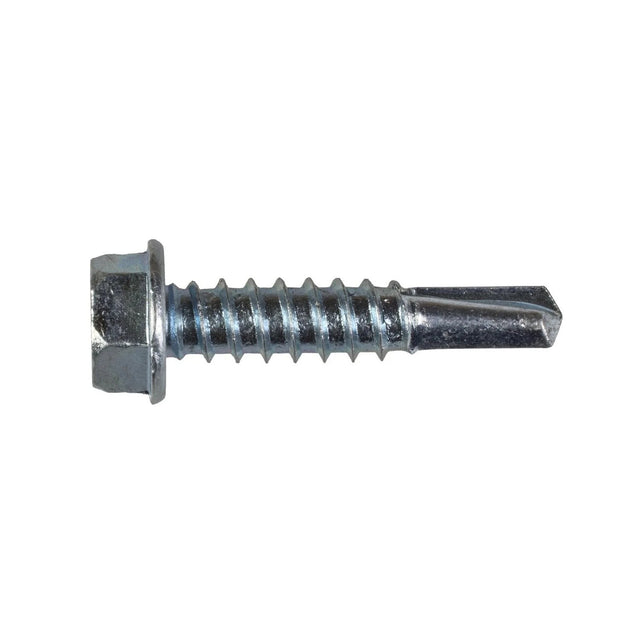

Simpson Strong-Tie X1S1016 Strong-Drive (#10 1") Collated Self-Drilling X Metal Screw - Clear Zinc (1500 Pack)
$116.89
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie X1S1016 Description
The Self-Drilling X Metal Screw is designed for fastening steel decking to structural steel, steel stitching, and cold-formed steel framing. It features a zinc coating for corrosion resistance and a 5/16" hex drive for easy installation.
Simpson Strong-Tie X1S1016 Includes
- (1500) Self-Drilling X Metal Screw
Simpson Strong-Tie X1S1016 Features
- 5/16" hex head for secure fastening
- Drill point for easy penetration
- Hex washer head for stability
- Straight collation for efficient use
- Available in bulk for hand-drive installation
Simpson Strong-Tie X1S1016 Applications
- Fastening steel decking to structural steel
- Steel stitching (side-lap stitching)
- Cold-formed steel framing
Simpson Strong-Tie X1S1016 Specifications
| Fastener Type | Quik Drive® Collated Screw |
| Coating/Material | Clear Zinc Coating |
| Screw Size | #10 |
| Length | 1 in. |
| Head Diameter | 0.415 in. |
| Drive Type | 5/16 in. Hex |
| Head Type | Hex Washer Head |
| Thread Type | Machine Threads |
| TPI | 16 |
| Max. Grip Length | 0.469 in. |
| Point Type | Drill Point |
| Point Size | 3 |
| Compatible Tools | Quik Drive® PROHX516G2, Quik Drive® PROSDX150G2, Quik Drive® PROPP150G2 |
| Packaging Quantity | 1500 |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
