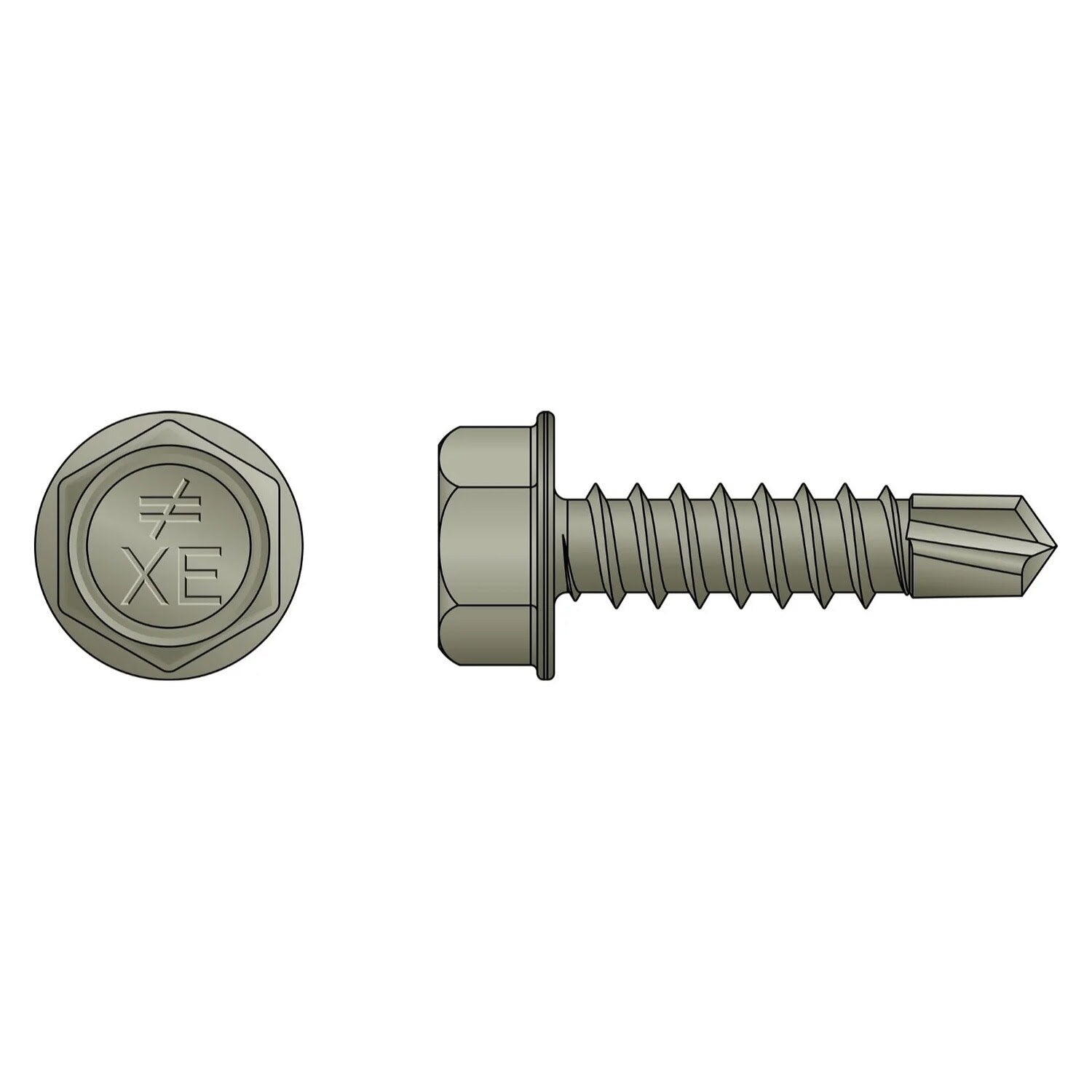

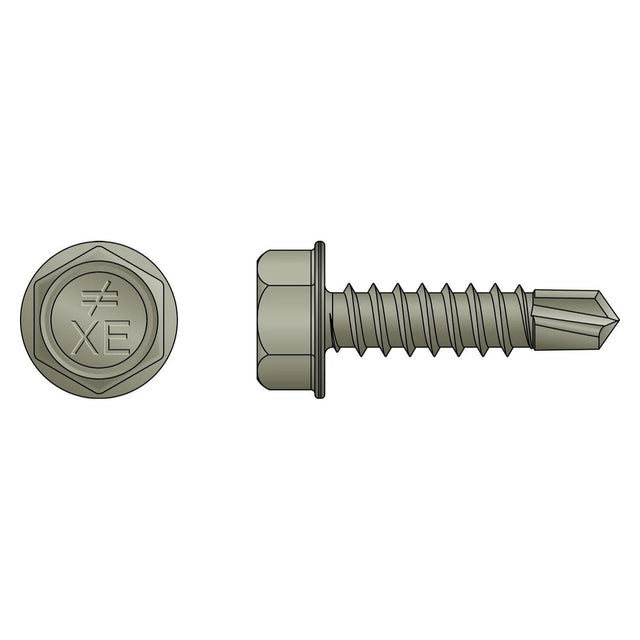

Simpson Strong-Tie XEQ34B1016C Description
The #10 x 3/4" XE Exterior Structural Metal Screw features a Quik Guard coating for corrosion protection and is designed for fastening cold-formed steel.
Simpson Strong-Tie XEQ34B1016C Includes
- (100) #10 x 3/4" XE Exterior Structural Metal Screw
Simpson Strong-Tie XEQ34B1016C Features
- 5/16" hex head
- 16 threads per inch
- Dual hardened heat treatment for improved drilling efficiency
- Quik Guard coated for corrosion protection
- Meets ASTM C1513 drill-time performance
- Load rated for Simpson Strong-Tie L70Z and LS70Z connectors
Simpson Strong-Tie XEQ34B1016C Applications
- Fastening Simpson Strong-Tie connectors
- Cold-formed steel applications
Simpson Strong-Tie XEQ34B1016C Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening for Cold-Formed Steel |
| API Approval | Approved - Full |
| Screw Size | #10 |
| Length (in.) | 4-Mar |
| Head Diameter (in.) | 0.4 |
| Shank Diameter (in.) | 0.19 |
| Drive Type | 5/16 in. Hex |
| Head Type | Hex Washer Head |
| Thread Type | Machine Threads |
| TPI | 16 |
| Max. Grip Length (in.) | 0.291 |
| Point Type | Drill Point |
| Point Size | 2 |
| Coating/Material | Quik Guard Coating |
| Packaging Quantity | 100.0 |
NOTE: Grip length includes side member, steel thickness, air gap (if any) and allowance for three threads protruding through the steel.
Toolup Part # :
825113
