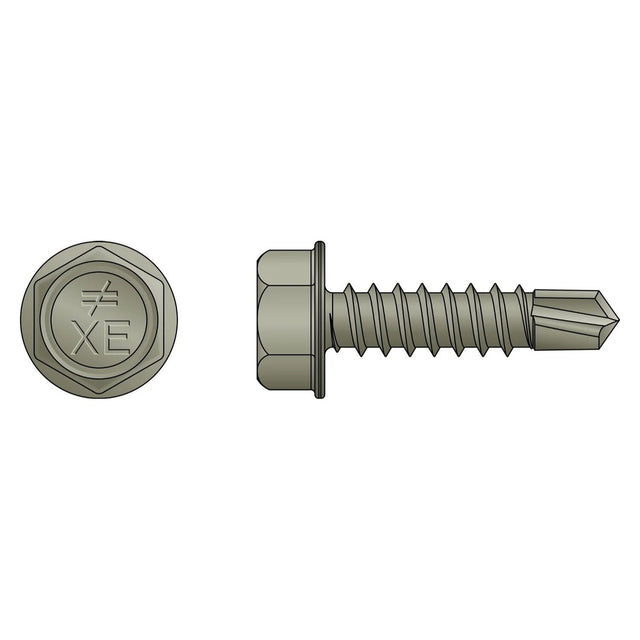

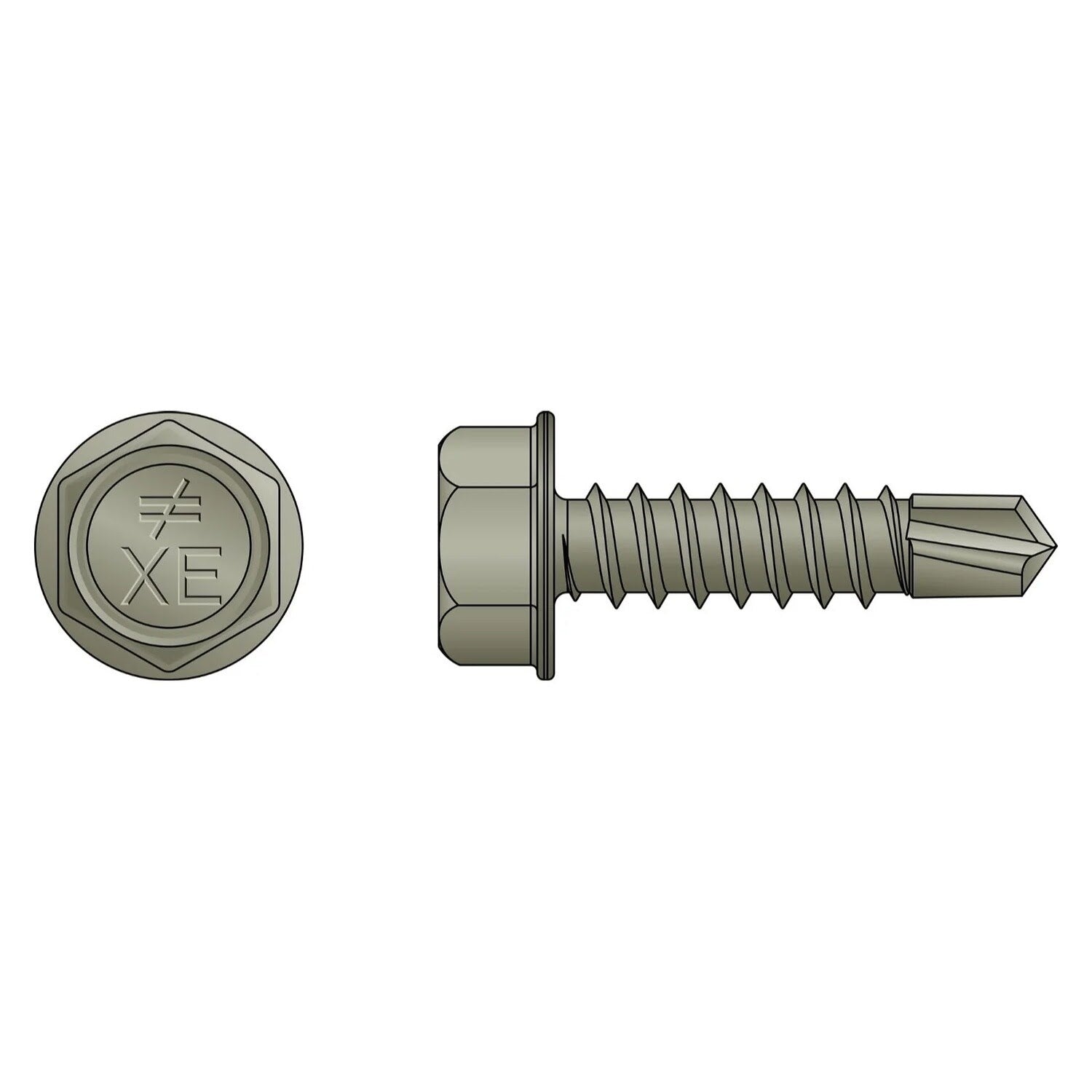

Simpson Strong-Tie XEQ34B1016M Description
The Simpson Strong-Tie XE Exterior Structural Metal Screw is designed for fastening cold-formed steel with superior corrosion resistance and efficiency.
Simpson Strong-Tie XEQ34B1016M Includes
- (1000) XE Exterior Structural Metal Screw
Simpson Strong-Tie XEQ34B1016M Features
- 5/16" hex head for easy installation
- 16 threads per inch for secure fastening
- Dual hardened heat treatment for improved drilling efficiency
- Quik Guard coating for corrosion protection
- Meets ASTM C1513 drill-time performance standards
Simpson Strong-Tie XEQ34B1016M Applications
- Fastening cold-formed steel
- Use with Simpson Strong-Tie connectors
- Steel deck framing applications
Simpson Strong-Tie XEQ34B1016M Specifications
| Fastener Type | Hand-Drive Screw |
| Application | Fastening for Cold-Formed Steel |
| Coating/Material | Quik Guard Coating |
| Screw Size | #10 |
| Length | 3/4 in. |
| Head Diameter | 0.400 in. |
| Shank Diameter | 0.190 in. |
| Drive Type | 5/16 in. Hex |
| Head Type | Hex Washer Head |
| Thread Type | Machine Threads |
| TPI | 16 |
| Point Type | Drill Point |
| Packaging Quantity | 1000 |
NOTE: Grip length includes side member, steel thickness, air gap (if any) and allowance for three threads protruding through the steel.
