Simpson Anchors | SKU:
XLQ114B1224-250
Simpson Strong-Tie XLQ114B1224-250 Strong-Drive (#12 x 1-1/4" 5/16 Hex) Hex Washer Head Metal Screw with Quik Guard Coating (250 Pack)
$56.20
Unit price
/
Unavailable
Description
Description

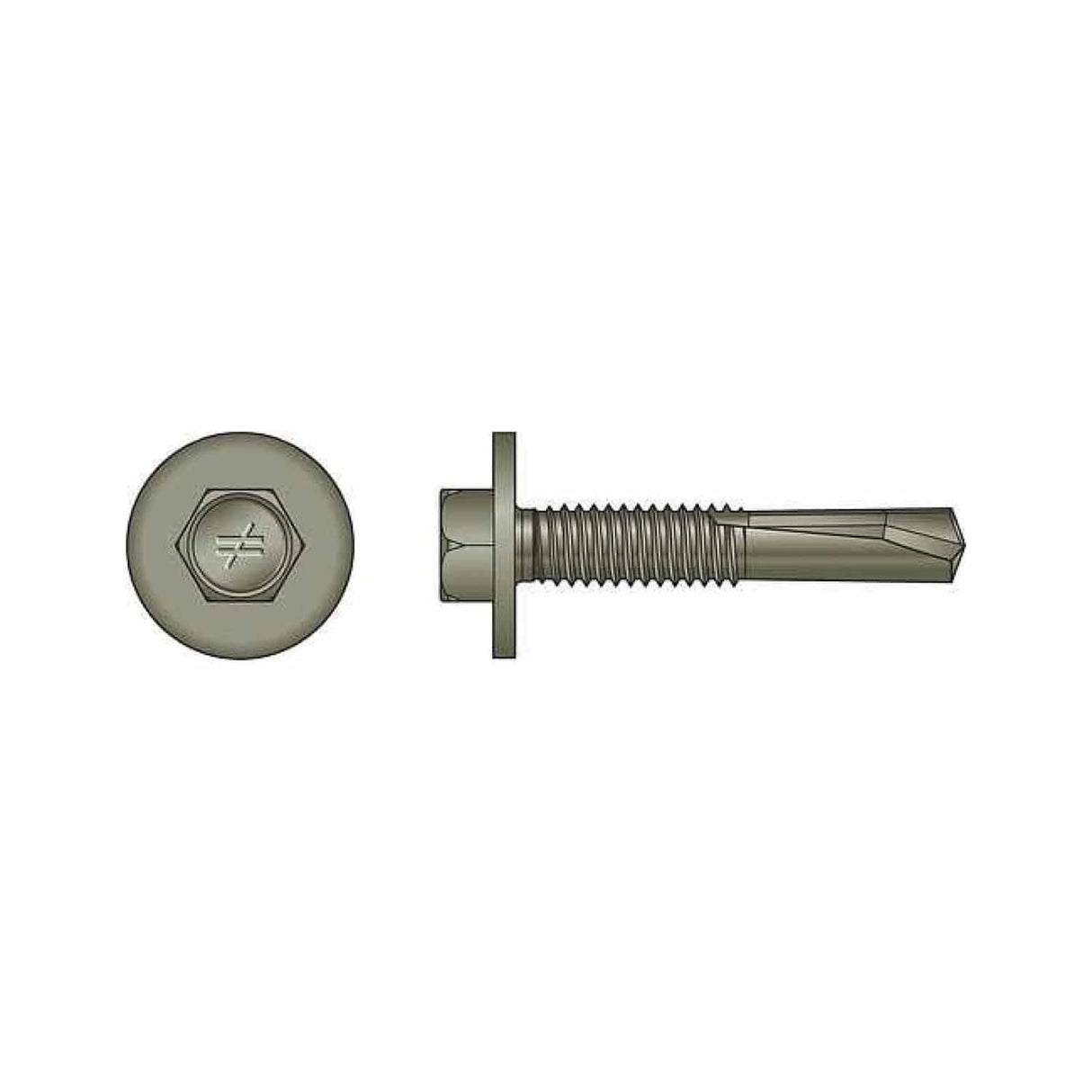

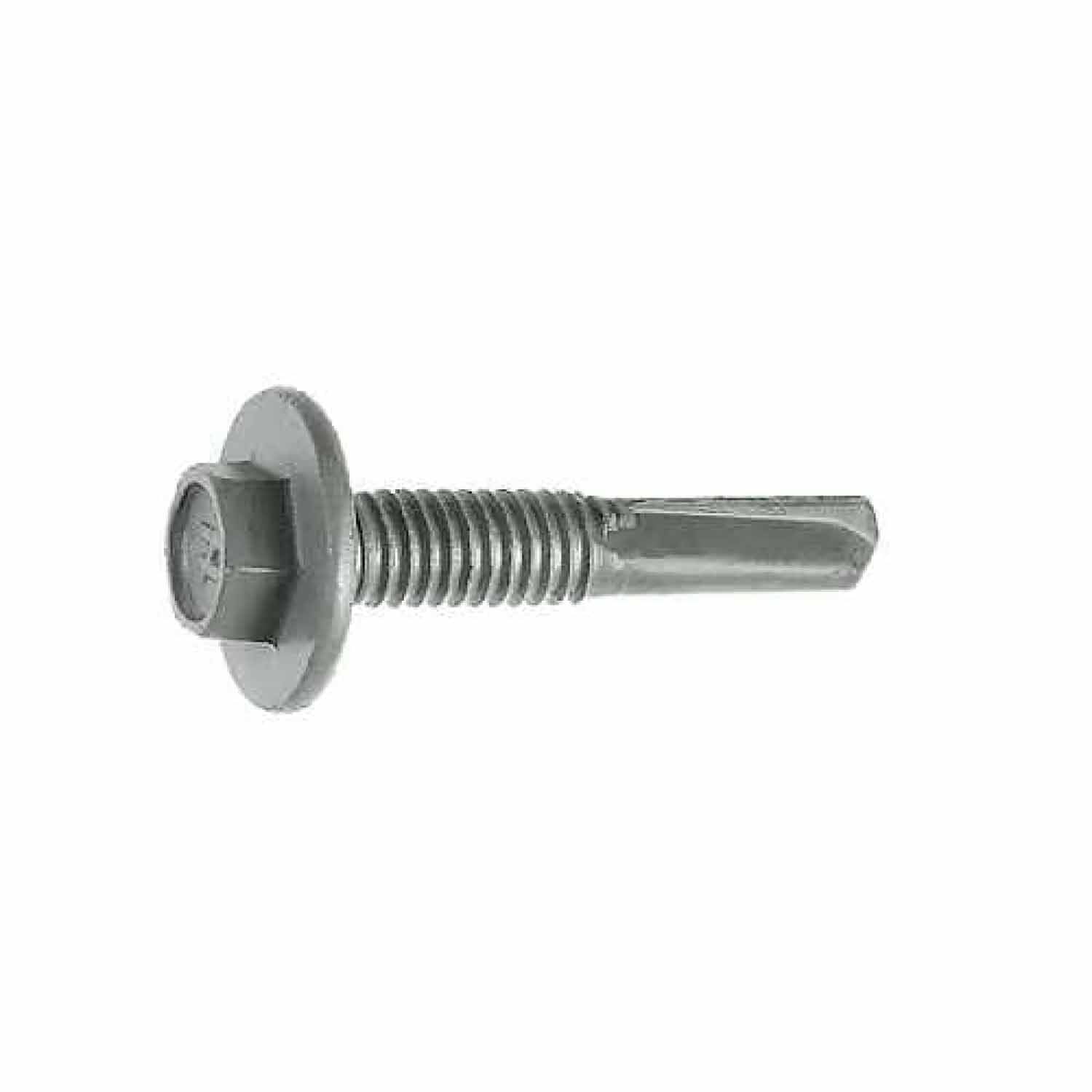

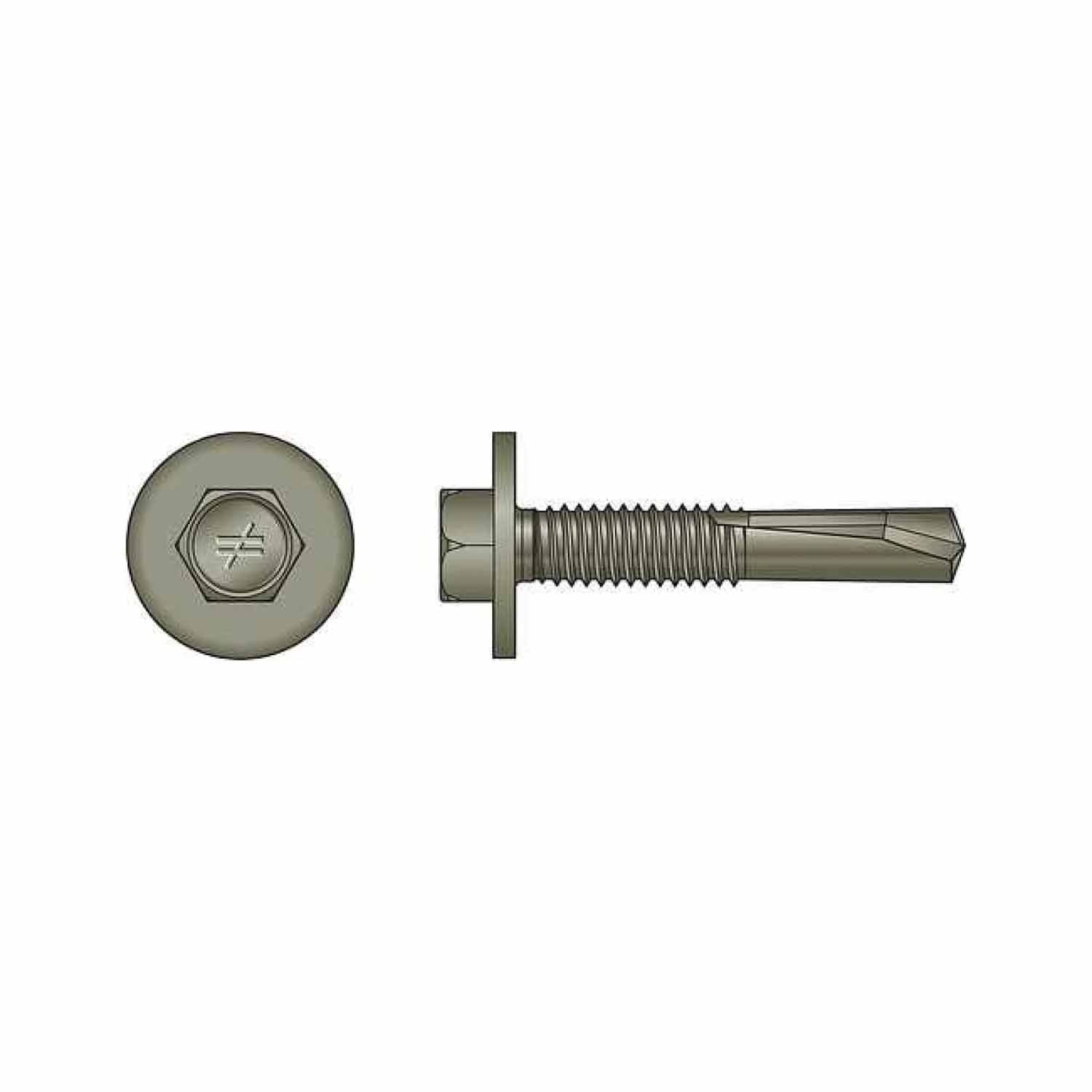

Simpson Strong-Tie XLQ114B1224-250 Description
The Strong-Drive XL Large-Head Metal Screw is designed for cold-formed steel applications, featuring a #5 drill point, Quik Guard coating, and a 5/16" hex drive for reliable performance.
Simpson Strong-Tie XLQ114B1224-250 Includes
- (250) Strong-Drive XL Large-Head Metal Screw #12 x 1-1/4 in.
Simpson Strong-Tie XLQ114B1224-250 Features
- 5/16" hex drive for easy installation
- #5 drill point for precise drilling
- Quik Guard coating for corrosion resistance
- 5/8" diameter integral washer for secure fastening

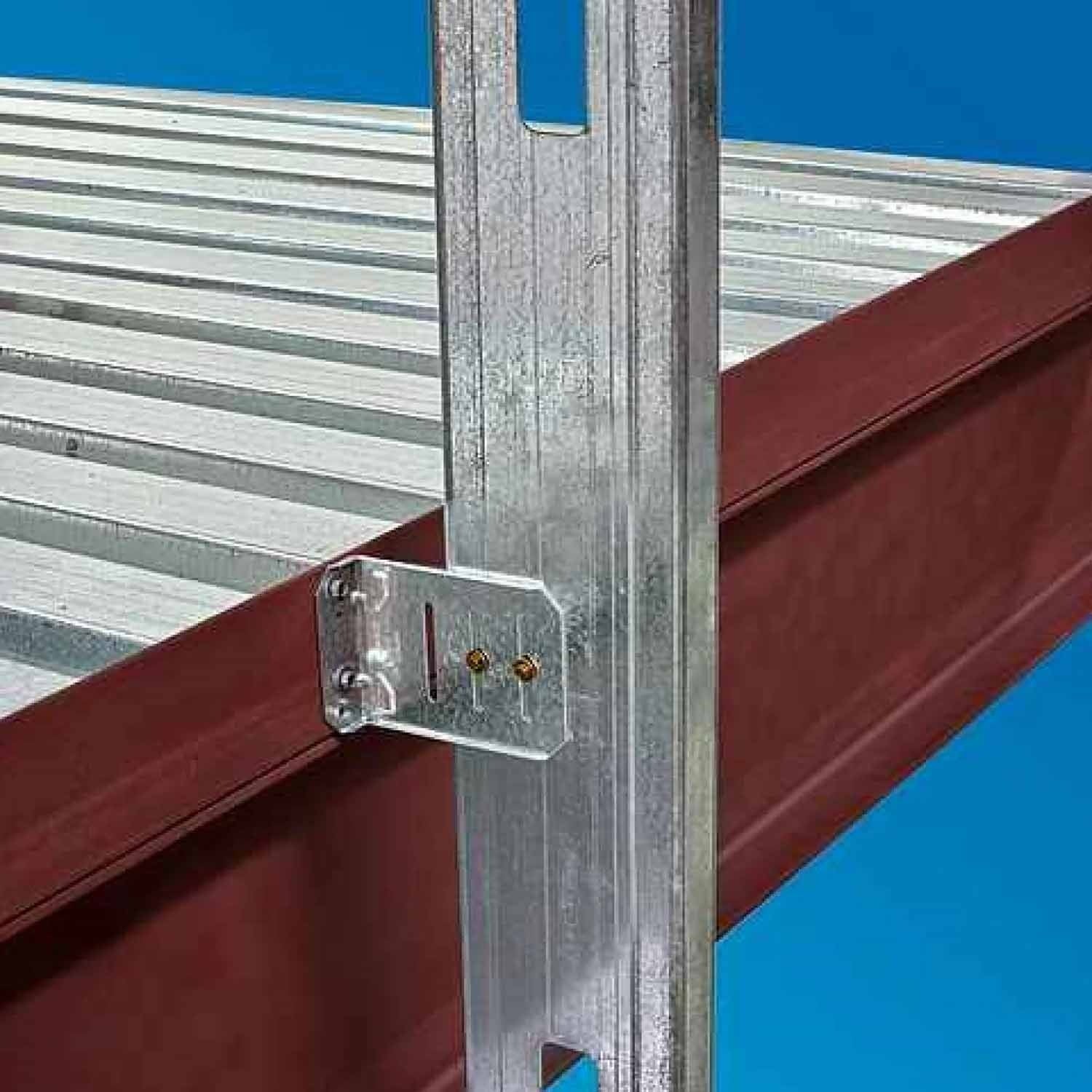

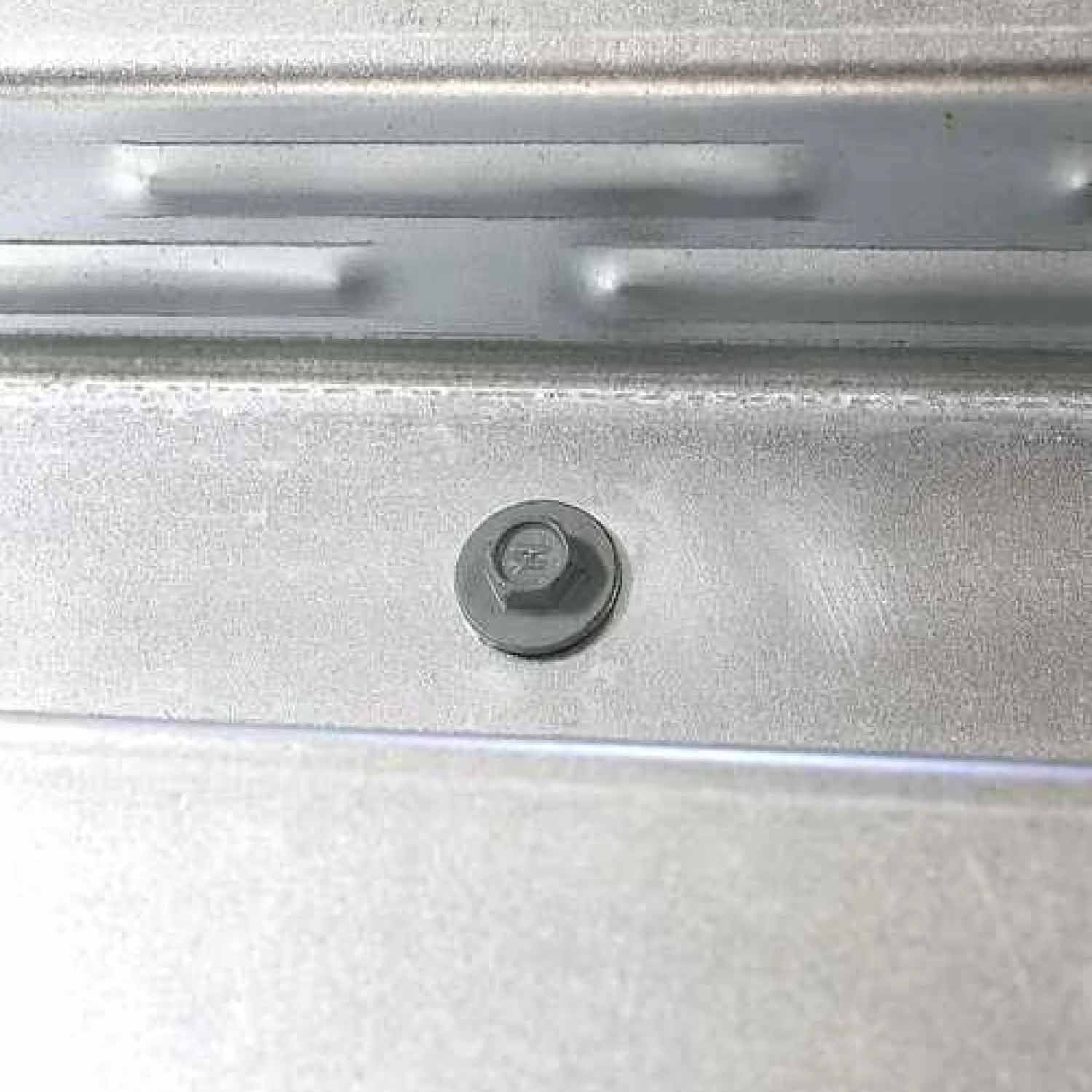

Simpson Strong-Tie XLQ114B1224-250 Applications
- Cold-formed steel framing
- Steel decking
- Connectors to structural steel
Simpson Strong-Tie XLQ114B1224-250 Specifications
| Fastener Type | Hand-Drive Screw |
| Coating/Material | Quik Guard Coating |
| Screw Size | #12 |
| Length | 1-1/4 in. |
| Head Diameter | 0.630 in. |
| Drive Type | 5/16 in. Hex |
| Head Type | Hex Washer Head |
| Thread Type | Machine Threads |
| TPI | 24 |
| Max. Grip Length | 0.466 in. |
| Point Type | Drill Point |
| Point Size | 5 |
| Packaging Quantity | 250 |
NOTE: Use this product in dry, interior, and noncorrosive environments only.
