Simpson Anchors | SKU:
ZN25100

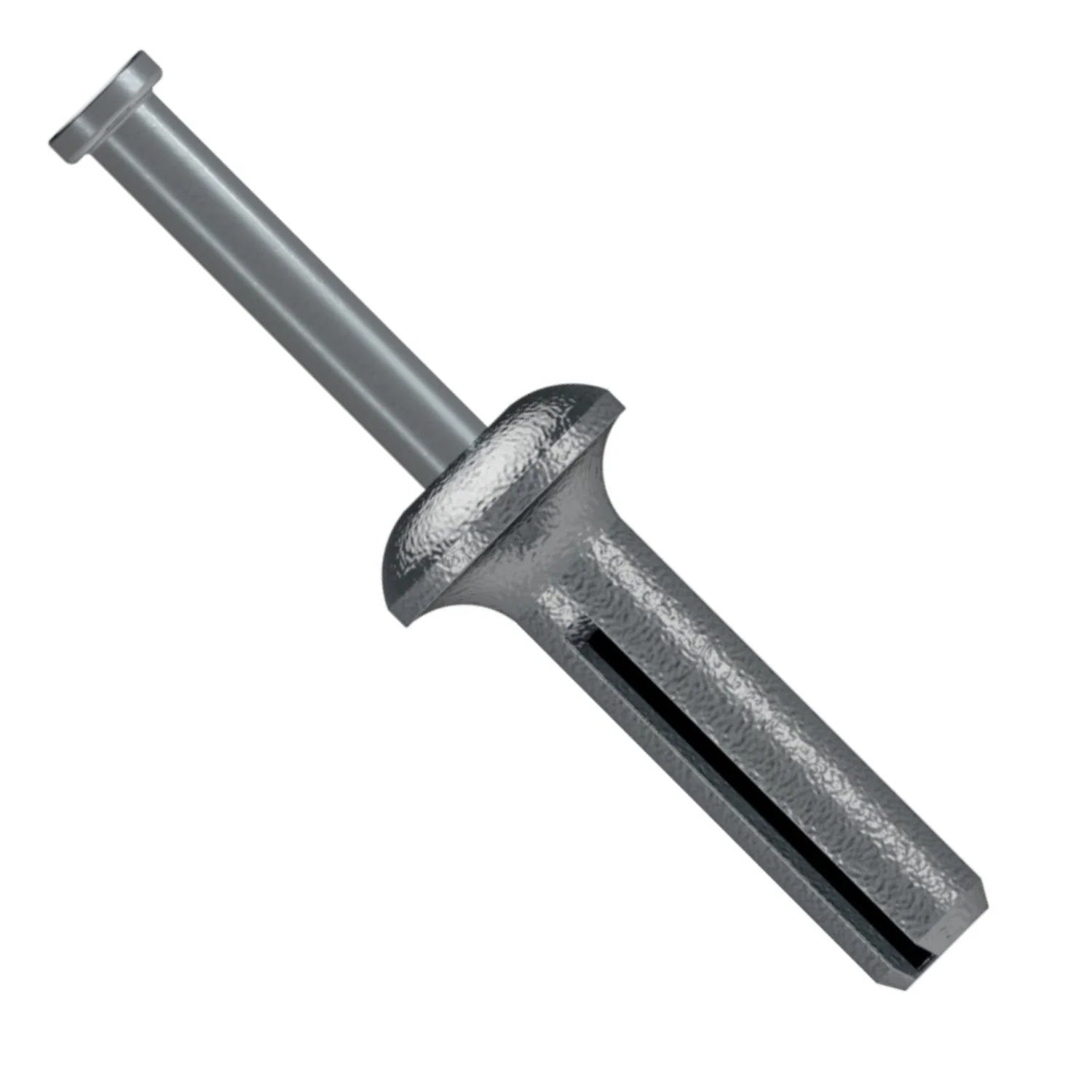

Simpson ZN25100 Zinc Nailon Pin-Drive Anchor - Light-Duty Mechanical Anchor (100 Pack)
$14.75
$19.66
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ZN25100 Description
The Zinc Nailon Pin-Drive Anchor is a low-cost, mushroom head anchor designed for static load applications. It is ideal for use in concrete, CMU, brick, and other base materials.
Simpson Strong-Tie ZN25100 Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN25100 Features
- Low-cost mushroom head design
- Tamper-resistant pin and head configuration
- Easily installed with a hammer
- Suitable for concrete, CMU, and brick
Simpson Strong-Tie ZN25100 Applications
- Concrete: Securely anchors into concrete surfaces
- CMU: Effective for use in concrete masonry units
- Brick: Suitable for solid brick applications
Simpson Strong-Tie ZN25100 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Position the fixture and insert the Nailon anchor.
- Tap with a hammer until flush with the fixture, then drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN25100 Specifications
| Material | Die-cast Zamac 3 alloy |
| Pin Material | Carbon Steel |
| Diameter | 1/4" |
| Length | 1" |
| Drill Bit Size | 1/4" |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
