Simpson Anchors | SKU:
ZN25112
Simpson ZN25112 Zinc Nailon Pin-Drive Anchor (100 Pack)
$16.17
$21.58
Unit price
/
Unavailable
NOTE: This item is ineligible for free shipping
Description
Description
Simpson ZN25112 Description

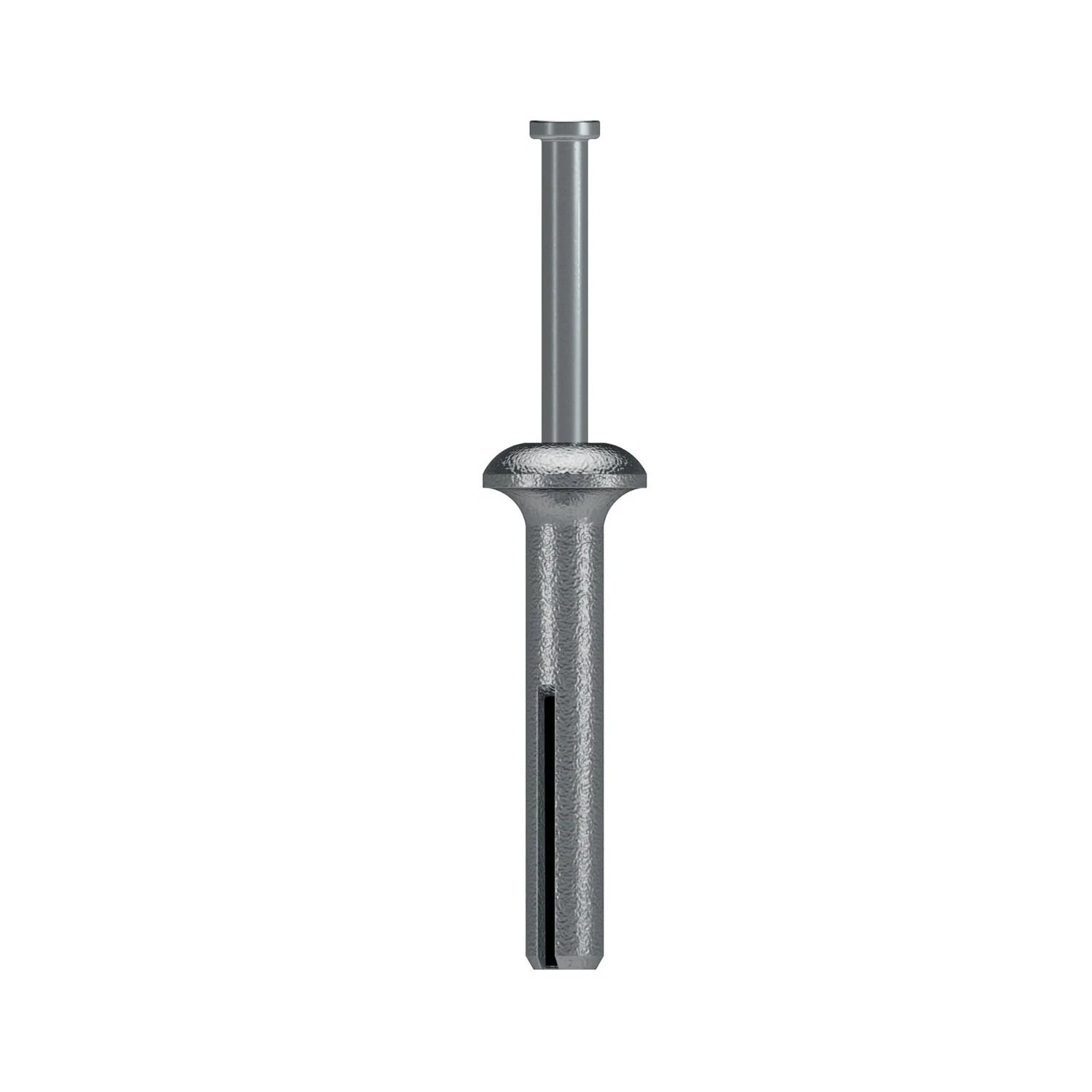

The Zinc Nailon Pin-Drive Anchor is a reliable and cost-effective solution for securing fixtures in concrete, brick, and other base materials. Featuring a tamper-resistant pin and head design, this anchor ensures secure and durable installations.
Simpson ZN25112 Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson ZN25112 Features
- Tamper-resistant pin and head configuration
- Made from die-cast Zamac 3 alloy
- Available with carbon and stainless-steel pins
- Easy installation with hammer-driven pin
Simpson ZN25112 Applications
- Concrete: Secure fixtures in concrete surfaces
- Brick: Ideal for solid brick applications
- CMU: Suitable for concrete masonry units
Simpson ZN25112 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Position the fixture and insert the Nailon anchor.
- Tap the anchor with a hammer until flush with the fixture.
- Drive the pin until flush with the top of the head.
Simpson ZN25112 Specifications
| Material | Die-cast Zamac 3 alloy |
| Pin Material | Carbon Steel |
| Diameter | 1/4" |
| Length | 1-1/2" |
| Drill Bit Size | 1/4" |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
