Simpson ZN25114 Description

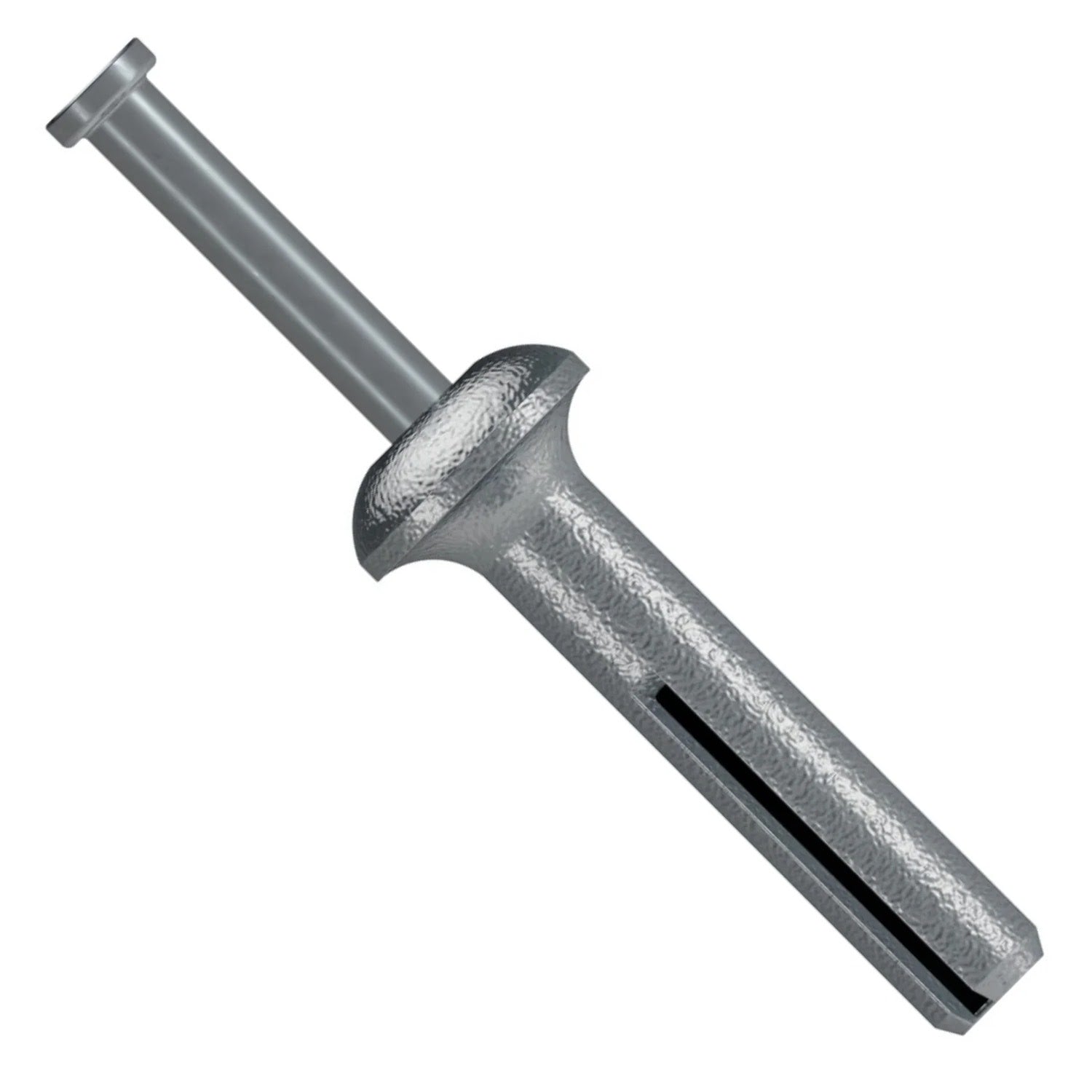

The Zinc Nailon Pin-Drive Anchor is a low-cost, tamper-resistant solution for securing fixtures in concrete, CMU, and brick. Designed for static loads, it features a mushroom head and is easily installed with a hammer.
Simpson ZN25114 Includes
- (100) Zinc Nailon Pin-Drive Anchor 1/4 x 1-1/4
Simpson ZN25114 Features
- Low-cost mushroom head design
- Tamper-resistant pin and head configuration
- Suitable for concrete, CMU, and brick
- Easy installation with a hammer
Simpson ZN25114 Applications
- Securing fixtures in concrete
- Anchoring in CMU
- Fastening in brick
Simpson ZN25114 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Position the fixture and insert the Nailon anchor.
- Tap the anchor with a hammer until flush with the fixture.
- Drive the pin until flush with the top of the head.
Simpson ZN25114 Specifications
| Diameter | 1/4" |
| Length | 1-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 100 |
NOTE: This product is not for use in overhead applications.
