At a Glance
Length
1-1/4 in
Quantity
1500
Description
Description

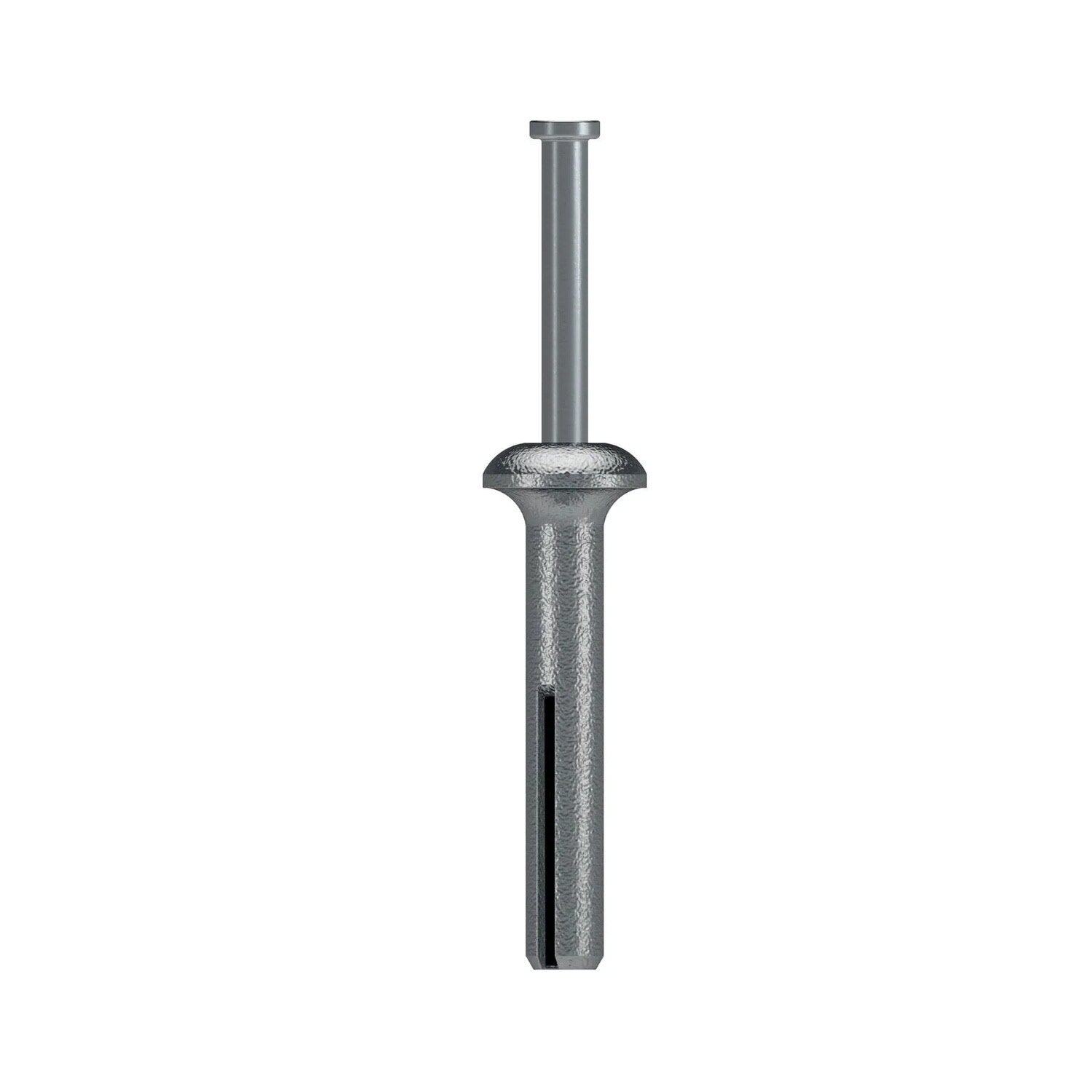

Simpson Strong-Tie ZN25114B Description
Zinc Nailon anchors are low-cost, mushroom head anchors designed for static load applications. They are easily installed by driving the pin through the anchor, expanding its body to secure it in place.
Simpson Strong-Tie ZN25114B Includes
- (1500) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN25114B Features
- Low-cost mushroom head design
- Tamper-resistant pin and head configuration
- Easily installed with a hammer
- Expands to hold securely in place
Simpson Strong-Tie ZN25114B Applications
- Concrete: Securely anchors into concrete surfaces
- CMU: Suitable for use in concrete masonry units
- Brick: Effective for anchoring into brick surfaces
- Static load applications: Designed for non-overhead static loads
Simpson Strong-Tie ZN25114B Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Clean the hole using compressed air or ensure it is deep enough to accommodate dust.
- Position the fixture and insert the Nailon anchor.
- Tap the anchor with a hammer until flush with the fixture, then drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN25114B Specifications
| Diameter | 1/4" |
| Finish | Zinc Plated |
| Length | 1-1/4" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1500 |
NOTE: This product is not for use in overhead applications.
Toolup Part # :
826270
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
