Simpson Anchors | SKU:
ZN25200

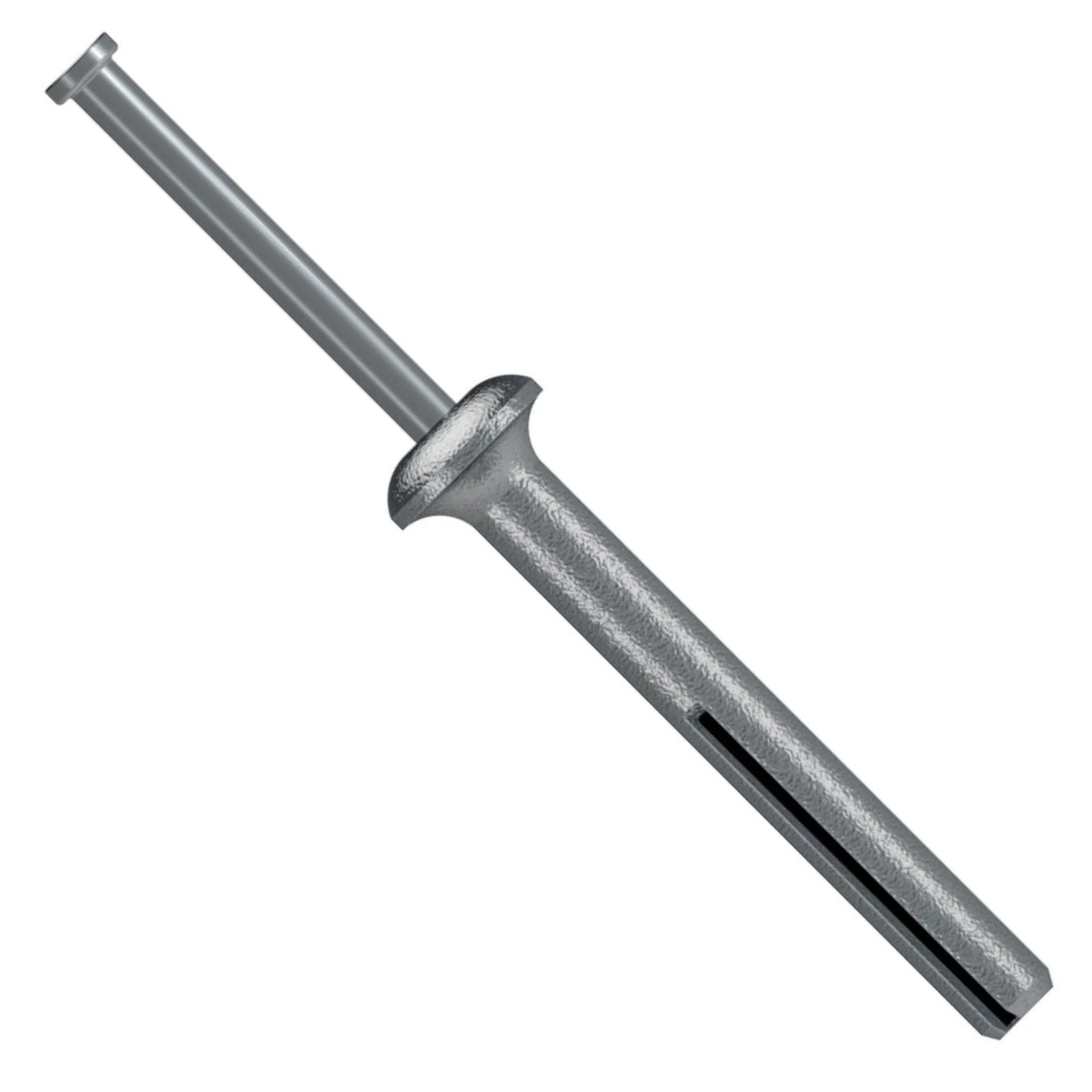

Simpson ZN25200 Zinc Nailon Pin-Drive Anchor (100 Pack)
$20.77
$27.67
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ZN25200 Description
The Zinc Nailon Pin-Drive Anchor is a low-cost, mushroom head anchor designed for static load applications. It is tamper-resistant and ideal for use in concrete, CMU, and brick.
Simpson Strong-Tie ZN25200 Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN25200 Features
- Available with carbon and stainless-steel pins
- Pin and head configuration designed to make anchor tamper-resistant
Simpson Strong-Tie ZN25200 Applications
- Ideal for use in concrete, CMU, and brick
- Suitable for static load applications
Simpson Strong-Tie ZN25200 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Position the fixture and insert the Nailon anchor.
- Tap with a hammer until flush with the fixture, then drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN25200 Specifications
| Material | Die-cast Zamac 3 alloy |
| Pin Material | Carbon Steel |
| Diameter | 1/4" |
| Length | 2" |
| Drill Bit Size | 1/4" |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
