Simpson Anchors | SKU:
ZN25212

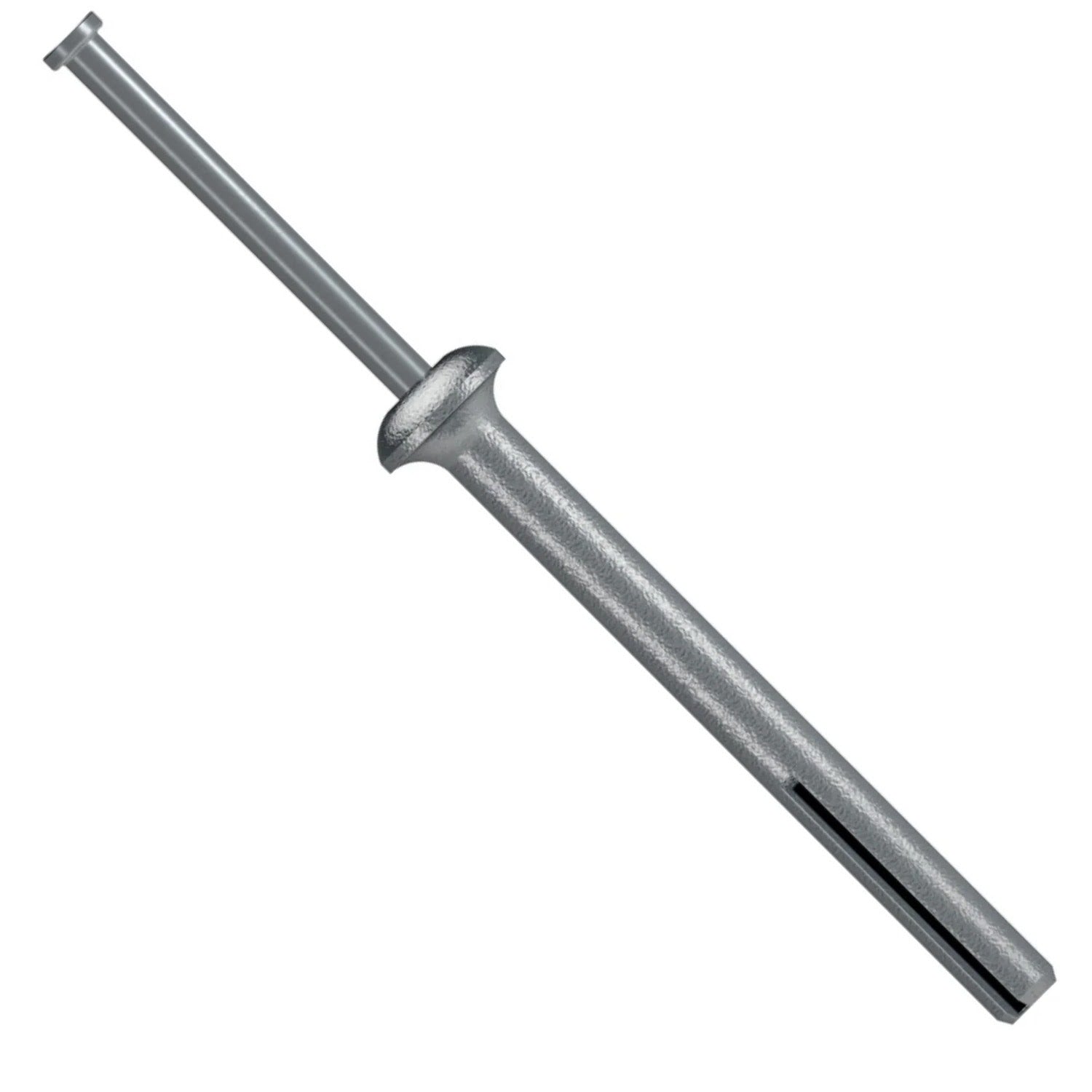

Simpson Strong-Tie ZN25212 (1/4" x 2-1/2") Zinc Nailon Pin-Drive Anchor (100 Pack)
$36.14
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ZN25212 Description
Zinc Nailon anchors are low-cost, mushroom head anchors for applications under static loads. Easily installed by hitting a hammer on the head, driving the pin through the anchor to expand its body and hold it in place.
Simpson Strong-Tie ZN25212 Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN25212 Features
- Low-cost mushroom head anchors
- Tamper-resistant pin and head configuration
- Suitable for concrete, CMU, brick, and other base materials
- Easy installation with hammer-driven pin
Simpson Strong-Tie ZN25212 Applications
- Concrete: Secure anchoring in static load applications
- CMU: Reliable fastening for masonry units
- Brick: Effective anchoring for solid brick structures
Simpson Strong-Tie ZN25212 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air.
- Position the fixture and insert the Nailon anchor.
- Tap the anchor with a hammer until flush with the fixture.
- Drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN25212 Specifications
| Diameter | 1/4" |
| Length | 2-1/2" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
