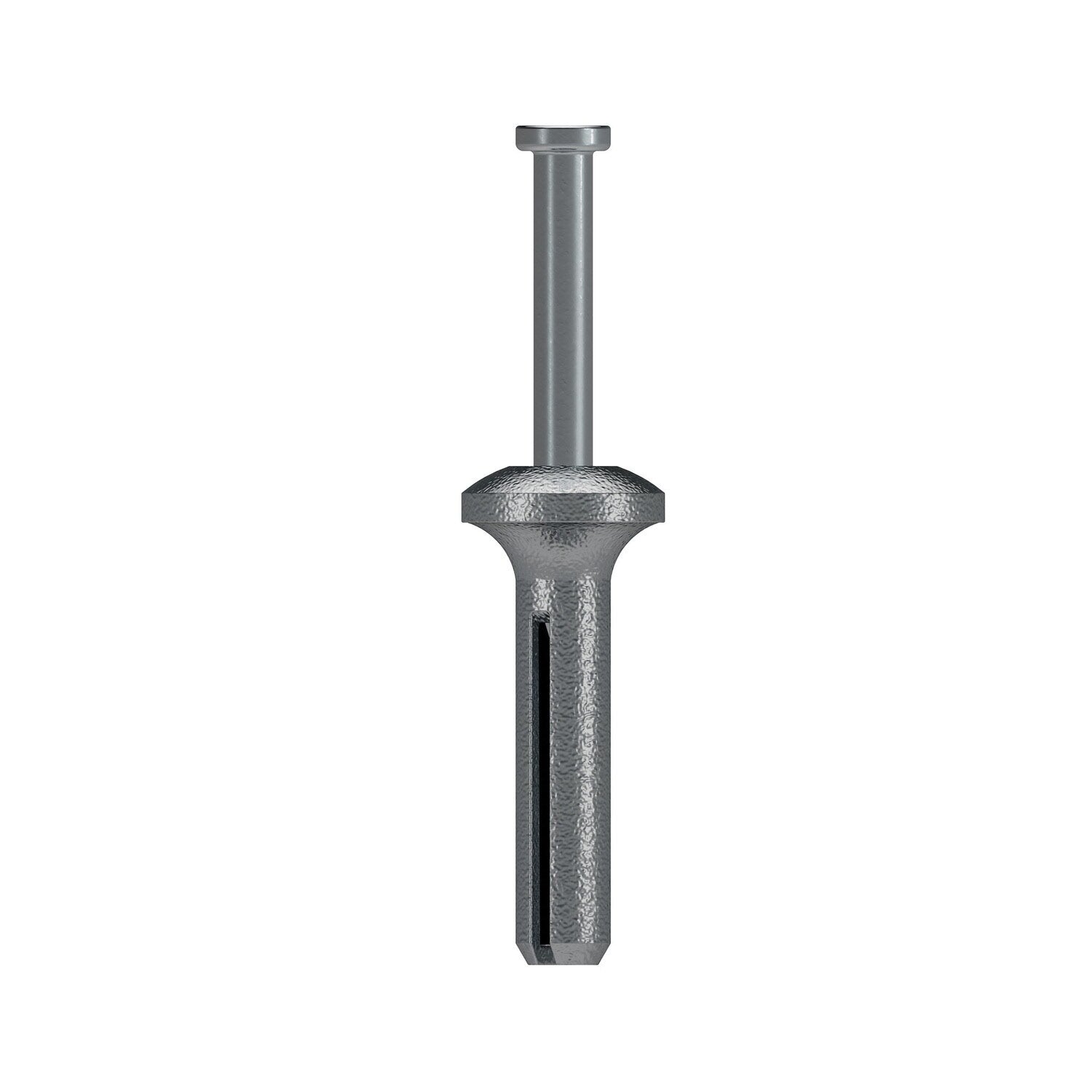

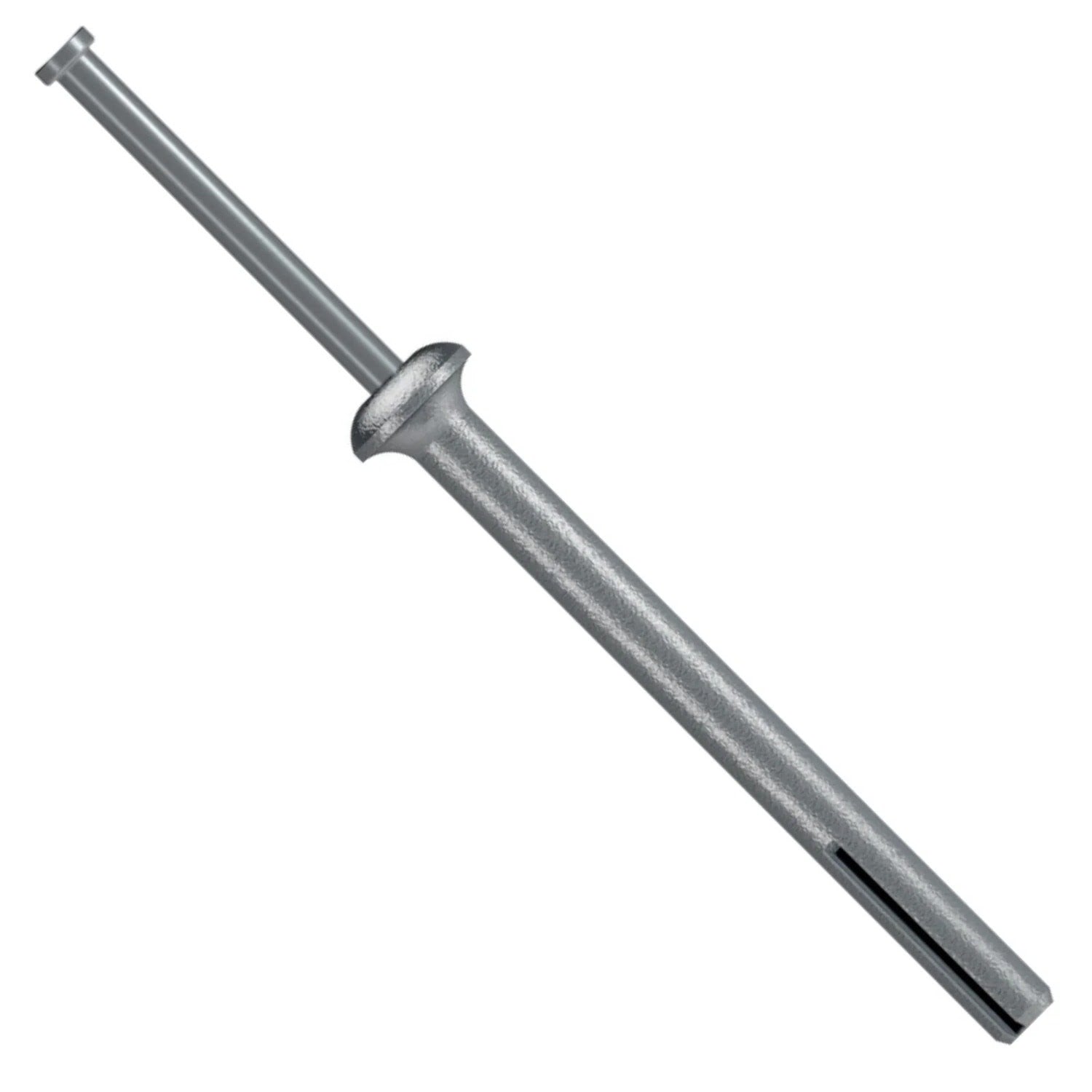

Simpson Strong-Tie ZN25300 (1/4" x 3") Zinc Nailon Pin-Drive Anchor (100 Pack)
$44.90
$45.41
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ZN25300 Description
The Zinc Nailon Pin-Drive Anchor is a low-cost, mushroom head anchor designed for static load applications. It is tamper-resistant and ideal for use in concrete, CMU, and brick.
Simpson Strong-Tie ZN25300 Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN25300 Features
- Low-cost mushroom head design
- Tamper-resistant pin and head configuration
- Easily installed with a hammer
- Suitable for concrete, CMU, and brick
Simpson Strong-Tie ZN25300 Applications
- Concrete: Securely anchors into concrete surfaces
- CMU: Ideal for use in concrete masonry units
- Brick: Effective for anchoring into solid brick
Simpson Strong-Tie ZN25300 Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Position the fixture and insert the Nailon anchor.
- Tap the anchor with a hammer until flush with the fixture, then drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN25300 Specifications
| Material | Die-cast Zamac 3 alloy |
| Pin Material | Carbon Steel |
| Diameter | 1/4 in. |
| Length | 3 in. |
| Drill Bit Size | 1/4 in. |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
