Simpson Anchors | SKU:
ZN25300B

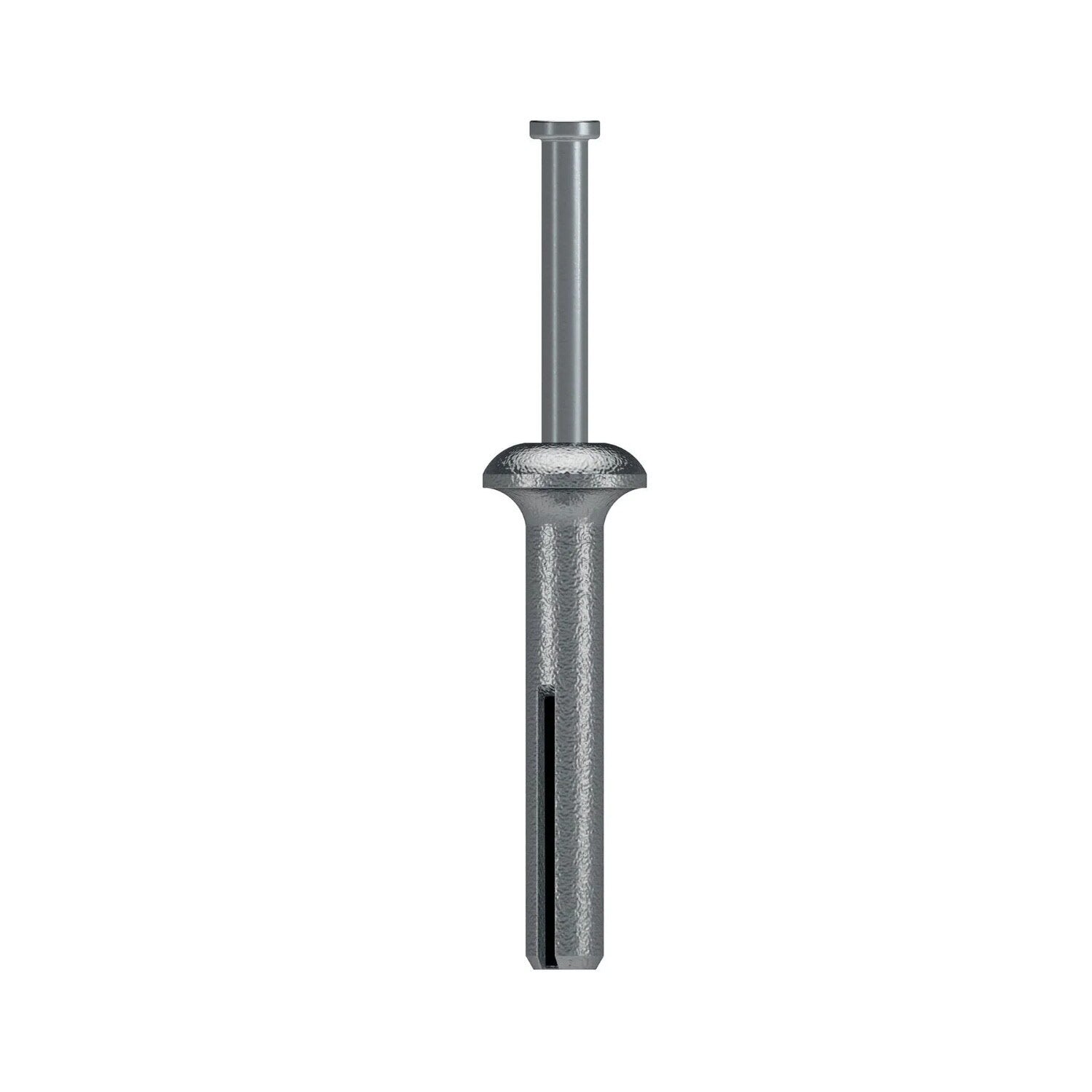

Simpson Strong-Tie ZN25300B (1/4" x 3") Zinc Nailon Pin-Drive Anchor (1000 Pack)
Free Shipping
$416.16
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ZN25300B Description
Zinc Nailon anchors are low-cost, mushroom head anchors designed for static load applications, ideal for concrete, CMU, brick, and other base materials.
Simpson Strong-Tie ZN25300B Includes
- (1000) Zinc Nailon Pin Drive Anchor
Simpson Strong-Tie ZN25300B Features
- Low-cost mushroom head anchors
- Designed for static load applications
- Tamper-resistant pin and head configuration
- Easy installation with a hammer
- Expands to hold securely in place
Simpson Strong-Tie ZN25300B Applications
- Concrete fastening
- CMU anchoring
- Brick attachment
- Static load applications
Simpson Strong-Tie ZN25300B Installation Overview
- Drill a hole in the base material using a carbide drill bit of the same diameter as the anchor.
- Blow the hole clean using compressed air or drill deep enough to accommodate dust.
- Position the fixture and insert the Nailon anchor.
- Tap with a hammer until flush with the fixture, then drive the pin until flush with the top of the head.
Simpson Strong-Tie ZN25300B Specifications
| Diameter | 1/4" |
| Finish | Zinc Plated |
| Length | 3" |
| Material | Carbon Steel |
| Drill bit size | 1/4" |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 1000 |
NOTE: This product is not for use in overhead applications.
