Simpson Anchors | SKU:
ZN25300SS

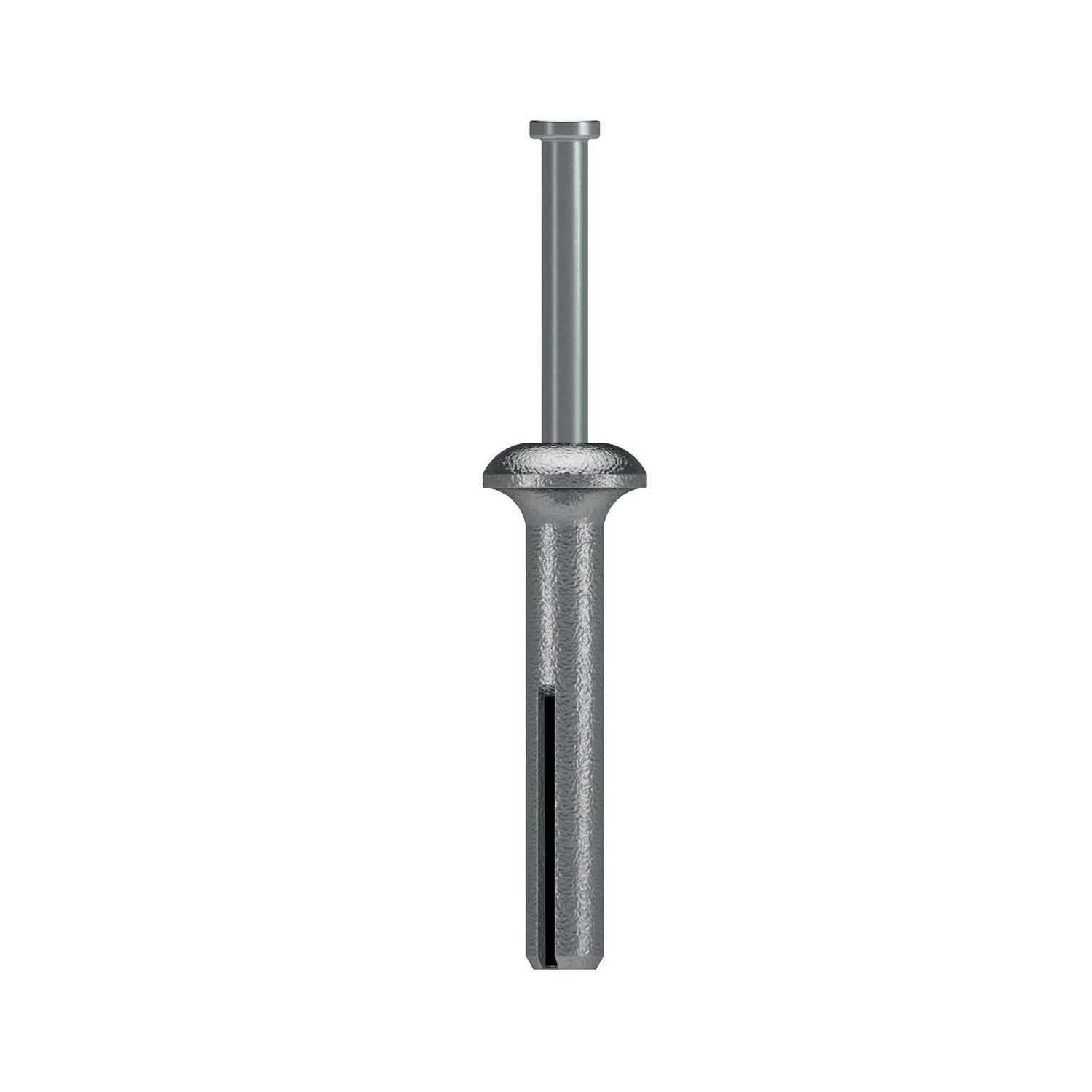

Simpson Strong-Tie ZN25300SS (1/4" x 3") Zinc Nailon Pin-Drive Anchor Stainless-Steel (100 Pack)
$69.00
Unit price
/
Unavailable
Description
Description
Simpson Strong-Tie ZN25300SS Description
Zinc Nailon anchors are low-cost, mushroom head anchors for applications under static loads. Easily installed by hitting a hammer on the head, driving the pin through the anchor to expand and hold it in place.
Simpson Strong-Tie ZN25300SS Includes
- (100) Zinc Nailon Pin-Drive Anchor
Simpson Strong-Tie ZN25300SS Features
- Available with carbon and stainless-steel pins
- Pin and head configuration designed to make anchor tamper-resistant
Simpson Strong-Tie ZN25300SS Applications
- Ideal for use in concrete, CMU, brick, and other base materials
Simpson Strong-Tie ZN25300SS Installation Overview
- Drill a hole in base material using a carbide drill bit the same diameter as the nominal diameter of the anchor to be installed.
- Drill the hole to specified embedment depth, plus 1/4" for pin extension, and blow hole clean using compressed air.
- Position fixture and insert Nailon anchor.
- Tap with hammer until flush with fixture, then drive pin until flush with top of head.
Simpson Strong-Tie ZN25300SS Specifications
| Diameter | 1/4" |
| Length | 3" |
| Material | 304 Stainless Steel |
| Drill bit size | 1/4" |
| For Treated Lumber | Yes |
| Manufacturer name | Simpson Strong-Tie |
| Quantity | 100 |
NOTE: Not for use in overhead applications. Nailon anchors are not recommended for eccentric tension (prying) loads as capacity will be greatly reduced in such applications.
