Southwire | SKU:
58290401

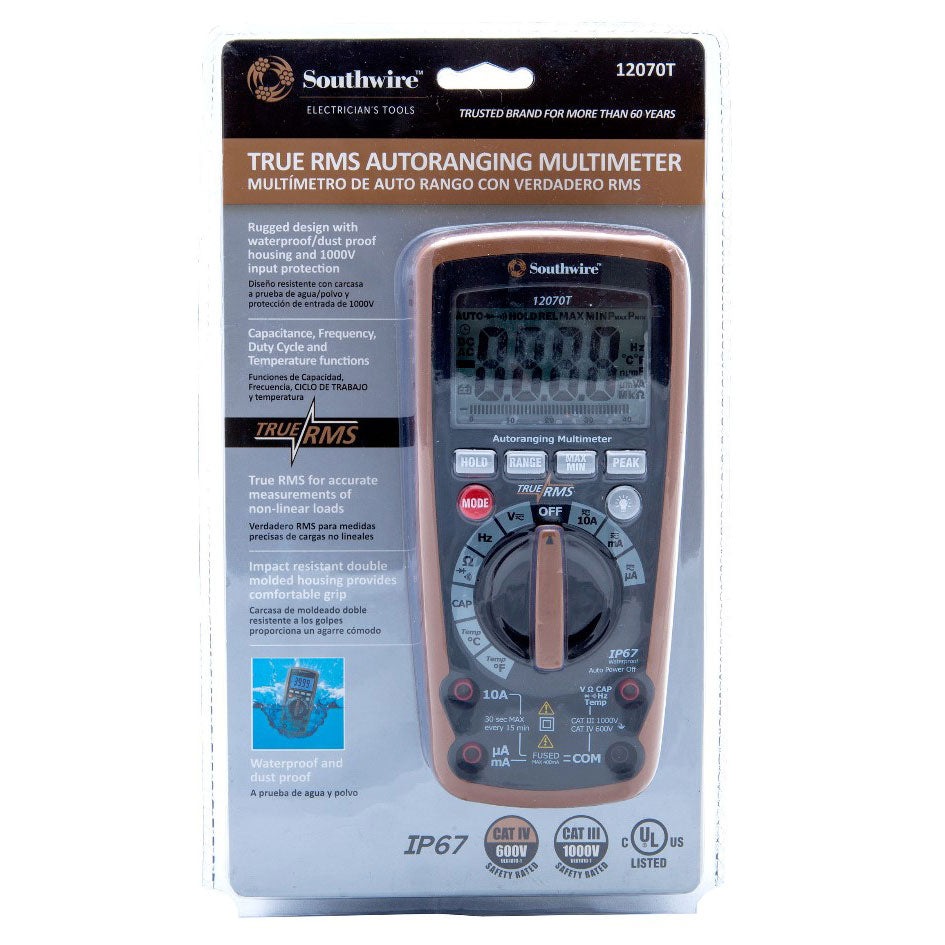

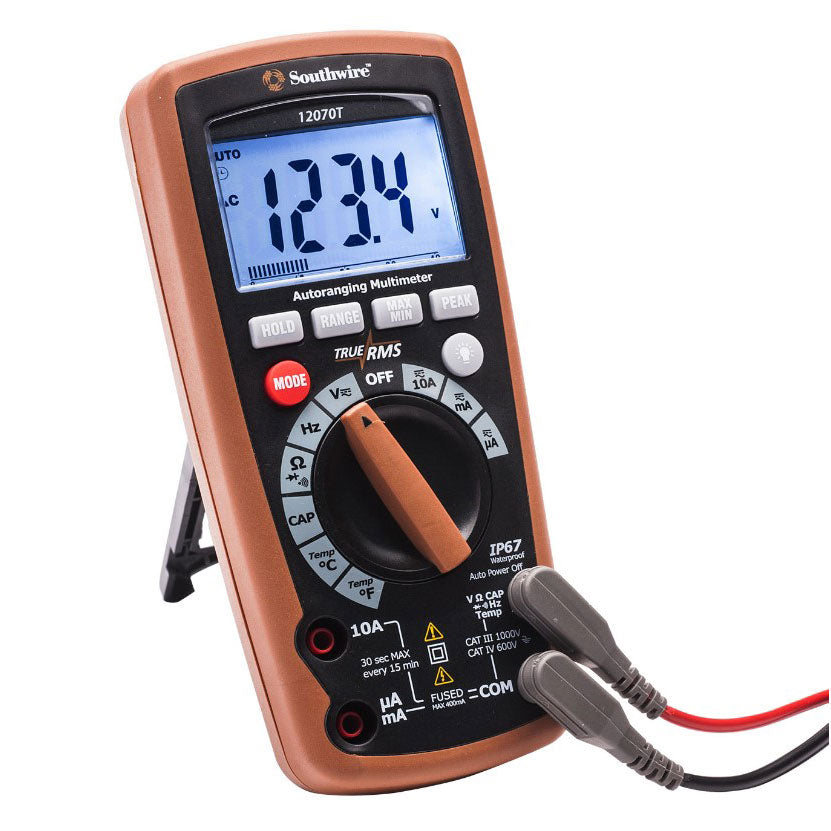

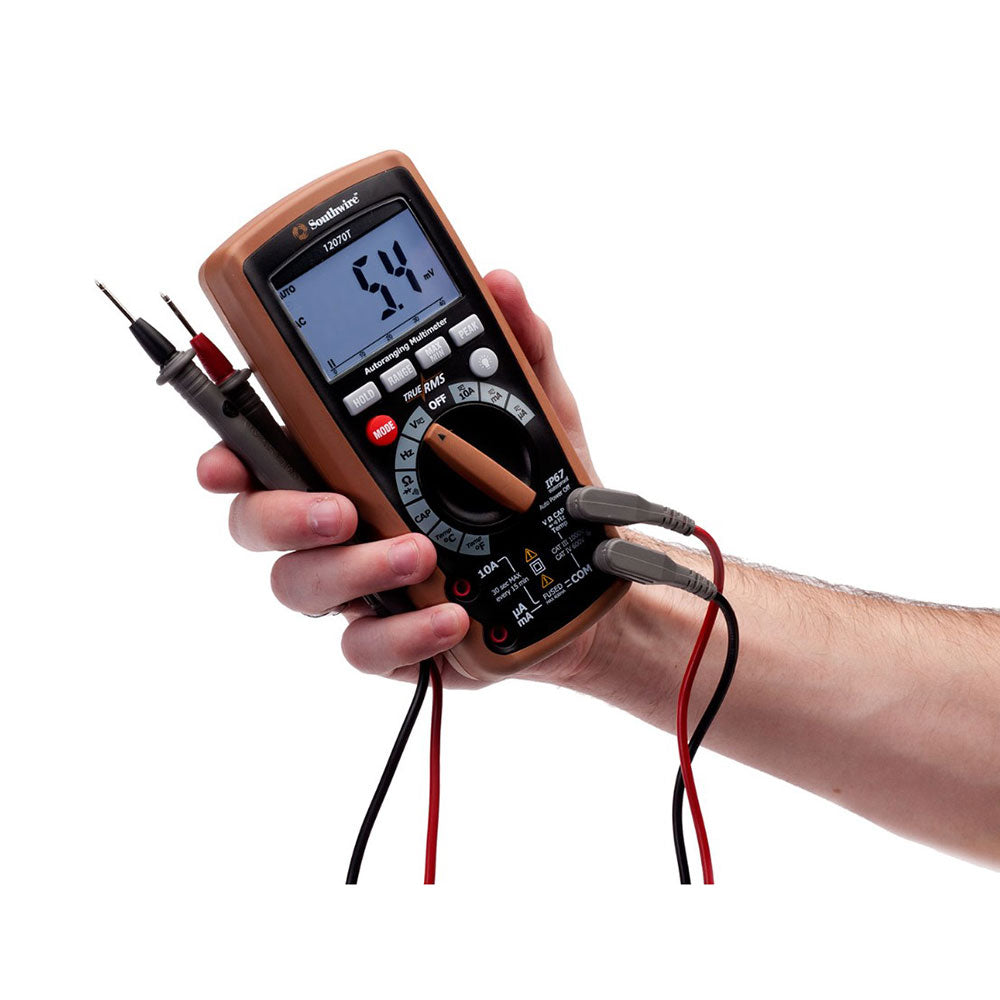

Southwire 12070T 12070T True RMS Auto-Range Multimeter
$115.36
$160.38
Unit price
/
Unavailable
Description
Description
Southwire 12070T Description
Auto-Ranging Multimeter True RMS IP67 CAT IV 12070T This True RMS multimeter provides the durability, accuracy and performance needed for the professional user. Features include a rugged IP67 waterproof and dust proof housing, CAT IV safety rating and 1000 volt input protection.
Southwire 12070T Includes
- (1) 12070T Multimeter
- (1) IP67 Test leads
- (1) Type k temperature probe with banana plug adapter
- (1) Magnetic hanging strap
- (1) Carrying case
- (1) 9 Volt battery
Southwire 12070T Features
- True RMS for accurate measurements on circuits with harmonic distortion
- Easy to read backlit 4,000-count display with bargraph
- Max/Min and Peak functions for capturing voltage fluctuations
- Magnetic hanging strap for convenient hands free operation
- IP67, dustproof and waterproof for demanding applications
- CAT IV 600V, CAT III 1,000V, UL Listed
Southwire 12070T Specifications
| Continuity | Audible threshold approx. 30 ohms |
| Diode Test | Yes |
| Dimensions | 6.7 x 3.11 x 1.97 in. (172 x 77 x 52mm) |
| Weight | 1.08lb (375g) |
| AC Voltage | 1000V |
| DC Voltage | 1000V |
| AC Current | 10A |
| DC Current | 10A |
| Resistance | 40M? |
| Capacitance | 40mF |
| Frequency | 10MHz |
| Temperature | -4 to 1400°F (-20 to 760°C) |
