Southwire | SKU:
14880118-2

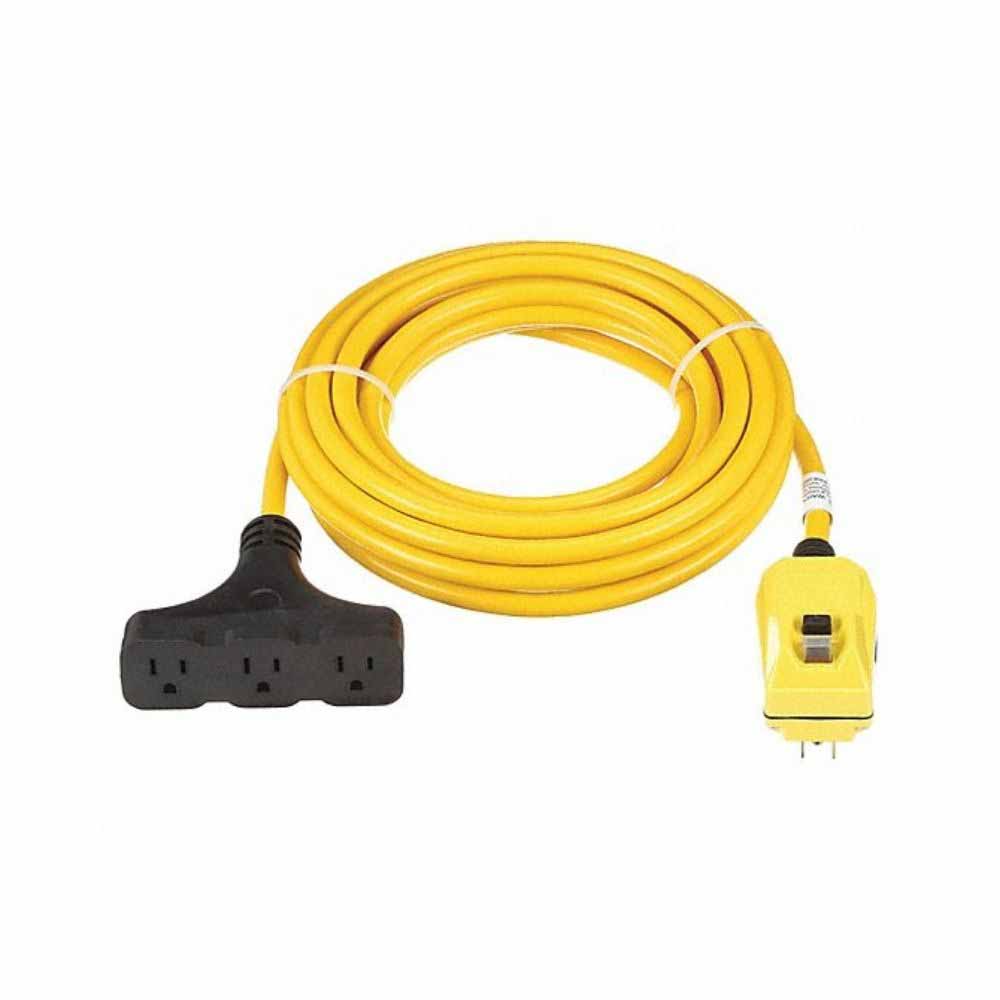

Southwire 14880118-2 25' 15A Right Angle GFCI 12/3 Cord Set Tri-Source End
$88.76
$130.54
Unit price
/
Unavailable
Description
Description
25' 15A Right Angle GFCI 12/3 Cord Set Tri-Source End 14880118-2 Description
Heavy duty molded T-head with three receptacles. The GFCI is an integral part of male plug. Provides protection for the extra heavy duty cord and three attached tools. 12 gauge cord is ideal for outdoor-rugged construction type environments.
25' 15A Right Angle GFCI 12/3 Cord Set Tri-Source End 14880118-2 Includes
- (1) Right Angle GFCI Cordset with Tri-Source
25' 15A Right Angle GFCI 12/3 Cord Set Tri-Source End 14880118-2 Features
- 12 gauge cord is ideal for outdoor rugged construction type environments
- 1500 Vrms 1 min insulation voltage
- 3 kV ringwave test and 4 kV/2 kA surge immunity test voltage surge withstand
- 3000 operations minimum endurance
- 4 Ohm typical grounded neutral
- 4 to 6 ma trip level
- 5% maximum trip level variation effect of 10 A turn DC shock on ground fault trip
- Heavy duty molded T-head with three receptacles
- Heavy impact resistant polymer material
- Less than 25 ms trip response time for ground fault and grounded neutral trip
- Manual reset
- Mechanical indicator
- Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz radio frequency noise susceptibility
- Provides compliance with national electric code (NEC 2008) article 590.6 for temporary installations
- Provides protection for the extra heavy duty cord and three attached tools
- Six times rated current overload current
- The gfci is an integral part of male plug
- To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage
25' 15A Right Angle GFCI 12/3 Cord Set Tri-Source End 14880118-2 Specifications
| Maximum Ameprage | 15A |
| Cord Length | 25' |
| Gauge | 12/3 |
| Color | Yellow |
| Number of Conductors | 3 |
| Number of Outlets | 3 |
| Plug Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Voltage | 120V |
| Dimensions | 25' L x 1-1/16" W |
| Cord Type | SJTW-A |
| Trip Level | 4 - 6 mA |
| Reset Type | Manual |
