Southwire | SKU:
26020050-1

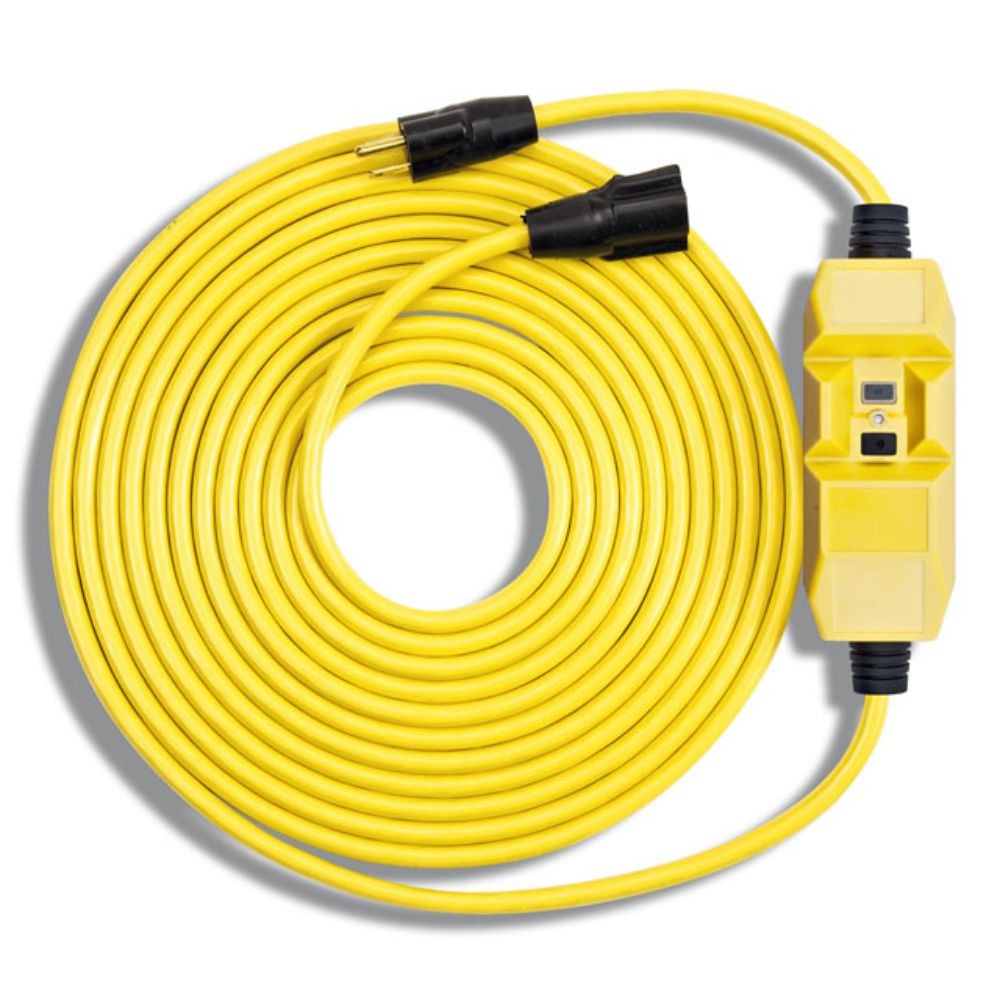

Southwire 26020050-1 50' 120V/15A 14/3 Gauge SJTW GFCI In-Line Cord Set, Yellow Color
$100.93
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
Southwire 26020050-1 Description
Shockshield in-line GFCI ensures protection from dangerous current leakage that can cause electrical shock and possible electrocution.
Southwire 26020050-1 Includes
- (1) Cord
Southwire 26020050-1 Features
- GFCI with 4-6mA trip point
- 25mS trip response time
- Manual reset
- Provides compliance with NEC 2008 Article 590.6 for Temporary Installations
- Custom cable gauges, lengths and terminations available by special order
Southwire 26020050-1 Specifications
| Voltage | 120V |
| Cord Length | 50' |
| Amps | 15A |
| NEMA | 5-15 P&R, Black |
| Grounded Neutral | 4 Ohms |
| Trip Response Time for Ground Fault and Grounded Neutral Trip | Less Than 25mS |
| Radio Frequency Noise Susceptibility | Operates Within Normal Limits With 0.5 Volts Injected On Power Line 150Khz-230Mhz |
| Effect of 10 Amp Turn DC Shock Fault Trip | 5% Maximum Trip Level Variation on Ground |
| Endurance | 3,000 Operations Minimum |
| Overload Current | Six Times Rated Current |
| Insulation Voltage | 1500 Vrms - 1 Min. |
| Cord Gauge | 14/3 AWG |
| Applications Include | High Pressure Sprayer Washers, Construction Site Power Tools, Drain Snakes, Pumps, Construction Sites, Industrial Appliances |
