Southwire | SKU:
26020147-2
Southwire 26020147-2 25' 15A In-Line GFCI 12/3 Cord Set Tri-Source End
$82.04
$120.66
Unit price
/
Unavailable
Description
Description

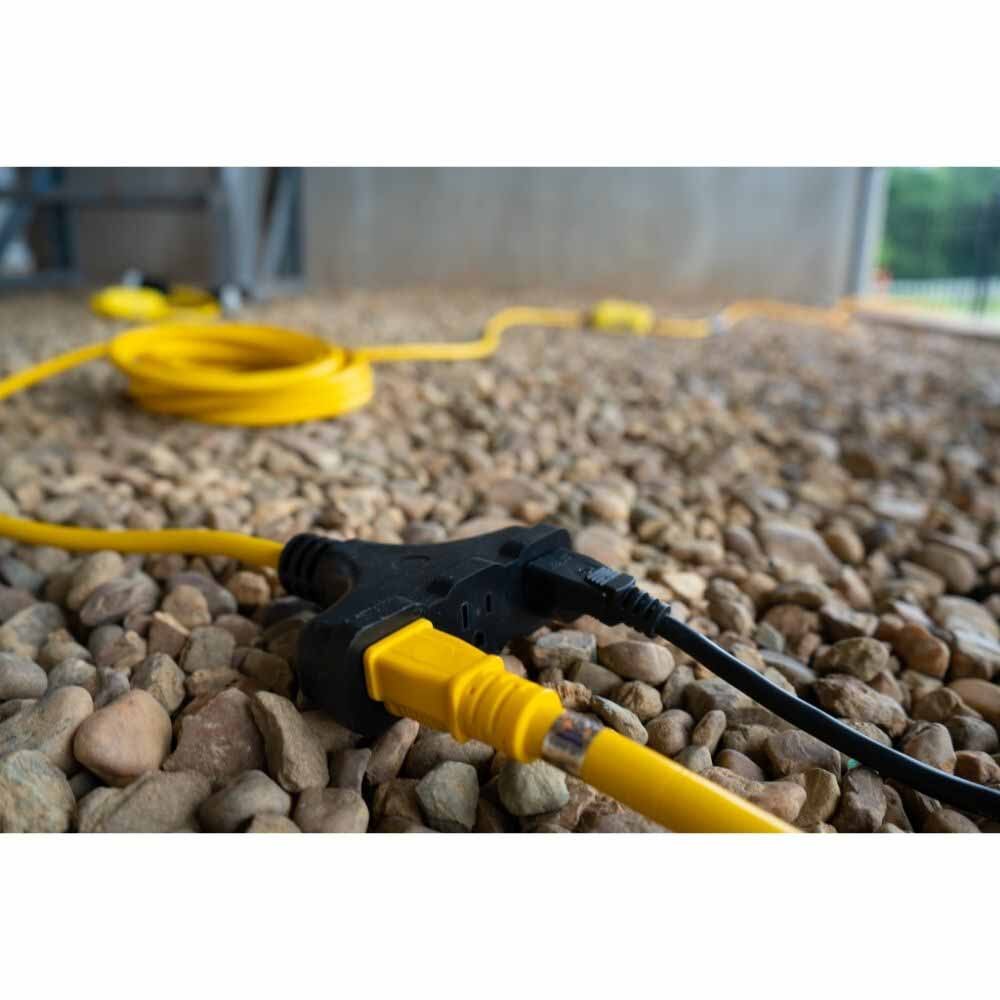

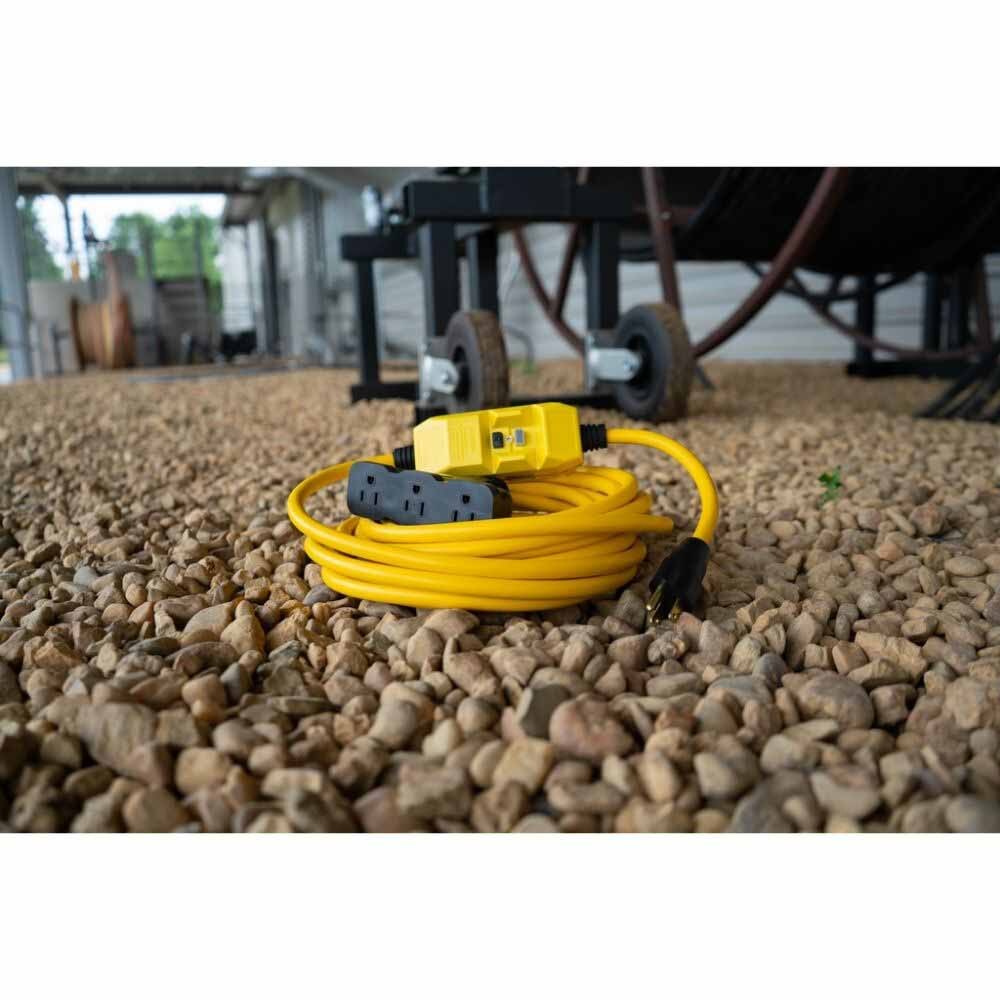

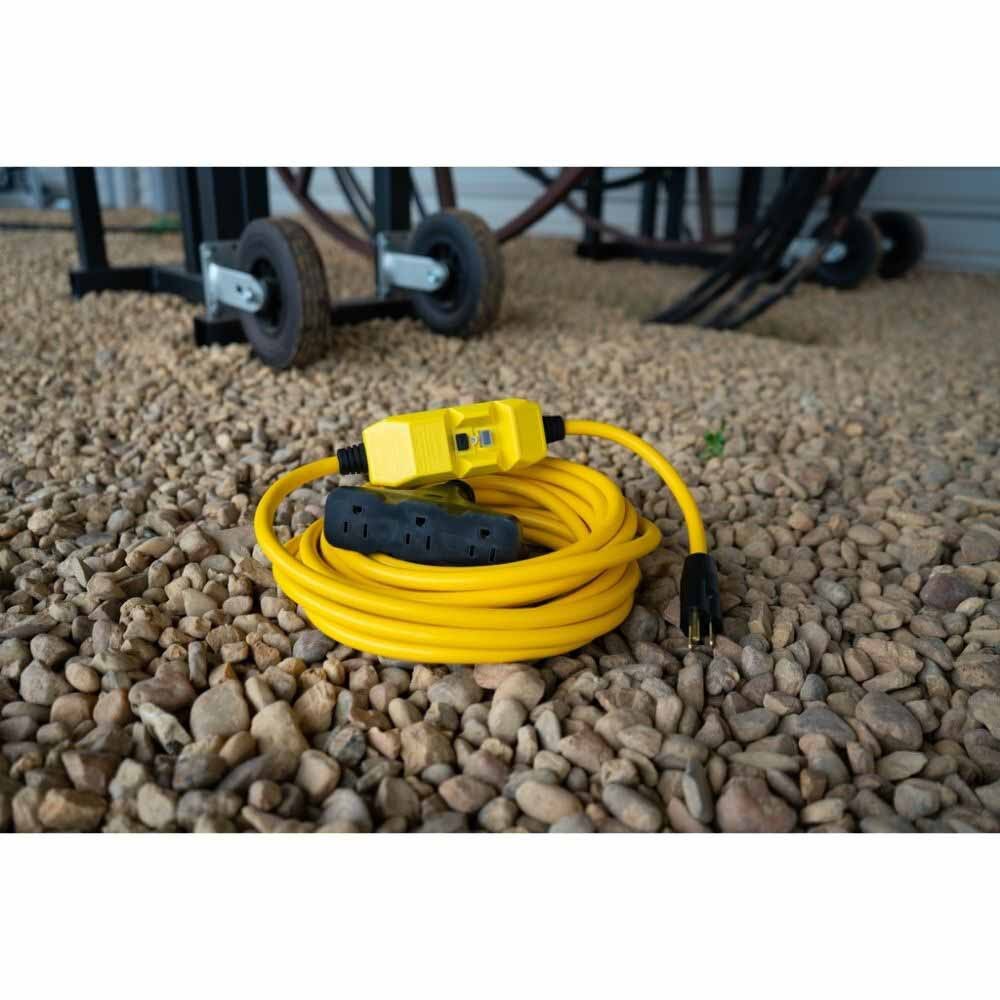

25' 15A In-Line GFCI 12/3 Cord Set Tri-Source End 26020147-2 Description
Heavy duty molded T-head with three receptacles. Provides protection for the extra heavy duty cord and three attached tools. 12 gauge cord is ideal for outdoor - rugged construction type environments.
25' 15A In-Line GFCI 12/3 Cord Set Tri-Source End 26020147-2 Includes
- (1) In-Line Tri-Cord
25' 15A In-Line GFCI 12/3 Cord Set Tri-Source End 26020147-2 Features

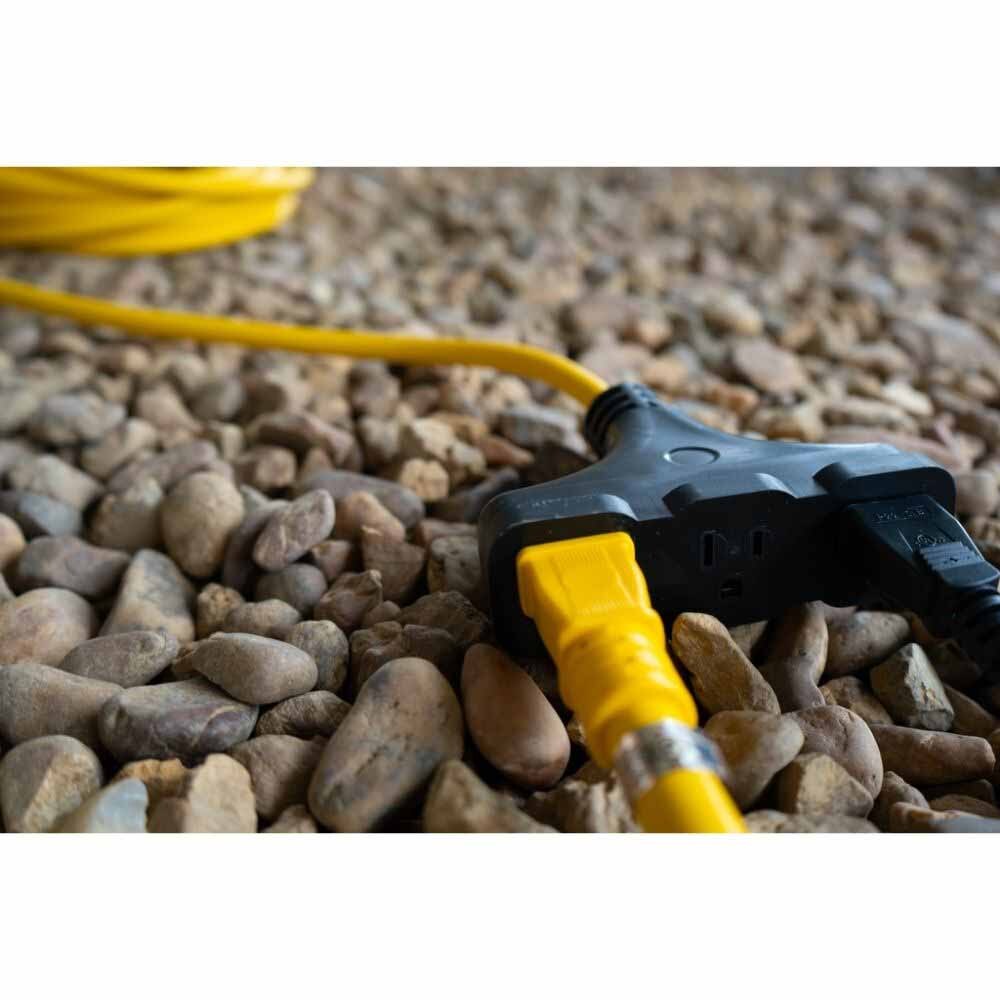

- In line sets feature a heavy duty molded T-head with three receptacles
- To prevent unmonitored equipment startup, manual reset is required after GFCI trip and power outage
- 4 to 6 ma trip level
- 4 Ohm typical grounded neutral
- Operates within normal limits with 0.5 volts injected on power line 150 kHz to 230 MHz
- 3000 operations minimum endurance
- Six times rated overload current
- 5% maximum trip level variation
- 1500 VRMS - 1 min insulation voltage
- Lighted indicator power on indication
- 12 ga cord is ideal for outdoor
25' 15A In-Line GFCI 12/3 Cord Set Tri-Source End 26020147-2 Specifications
| Voltage | 120V |
| Amperage | 15A |
| Cord Length | 25' |
| Gauge | 12/3 AWG |
| Material | SJTW |
| Number of Poles | 1 |
| Number of Conductors | 3 |
| Color | Yellow |
| Type | In-Line Protected |
| Temperature Rating | -35 to 66 °C |
| NEMA Rating | NEMA 5-15P & (3) 5-15R |
| Frequency Rating | 50/60 Hz |
| Enclosure | Rainproof |
| Trip Level | 4- 6 mA |
| Plug Style | Straight |
