Southwire | SKU: 41171N | Barcode: 032886710315

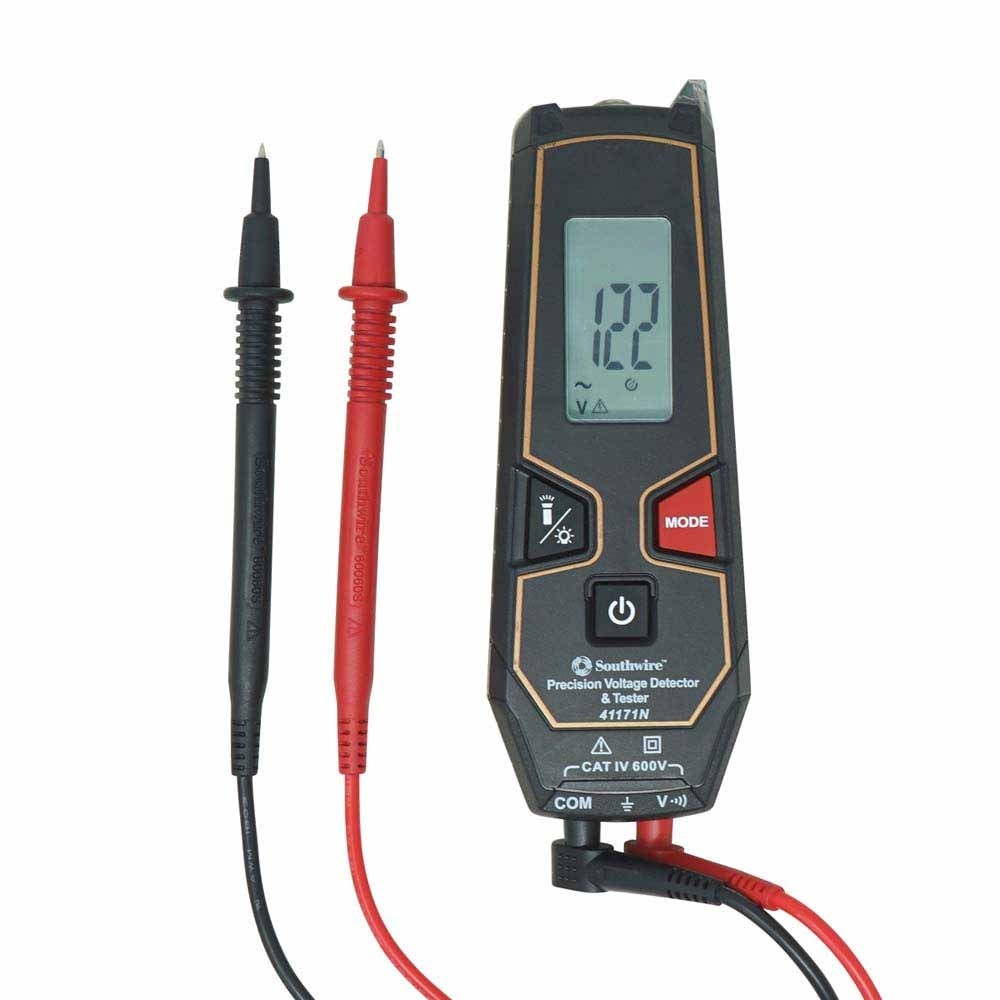

Southwire 41171N Voltage/Continuity/Phase Rotation Tester

$50.42 ~~$58.19~~

Description

Southwire 41171N Description

Voltage/Continuity/Phase Rotation Tester 41170S This versatile tester features a built-in flashlight, single probe AC voltage check, phase rotation on three phase circuits, and automatic indication of continuity and AC and DC voltage up to 600 volts in 8 steps.

Southwire 41171N Includes

(1) 41171N Tester with integrated test leads
(2) AAA batteries

Southwire 41171N Features

8 step LED indication of AC voltage up to 600 V and DC voltage up to 400V
One Probe live voltage check
Indicates phase rotation on three phase circuits
Audible and visual continuity test
Built-in LED flashlight
CAT III 600V, UL Listed

Southwire 41171N Specifications

AC Voltage Range	24,48,120,208,240,277,480,600V AC
DC Voltage Range	6,12,24,36,48,110,220,400V DC
Tolerances	-30% to 0% of indication
Single Pole Voltage Test	100 to 480V AC
Rotary Field Indication	100 to 400V AC
AC Operating Frequency	50/60Hz
Continuity Test	beeper will sound if the resistance is under 300k?
Overload Protection	600V AC/DC
Dimensions	9.5 x 3.1 x 1.5 in. (241 x 79 x 38mm)
Weight	0.6 lbs. (272g)
