Southwire  |  SKU: 59910000  |  Barcode: 783585013039

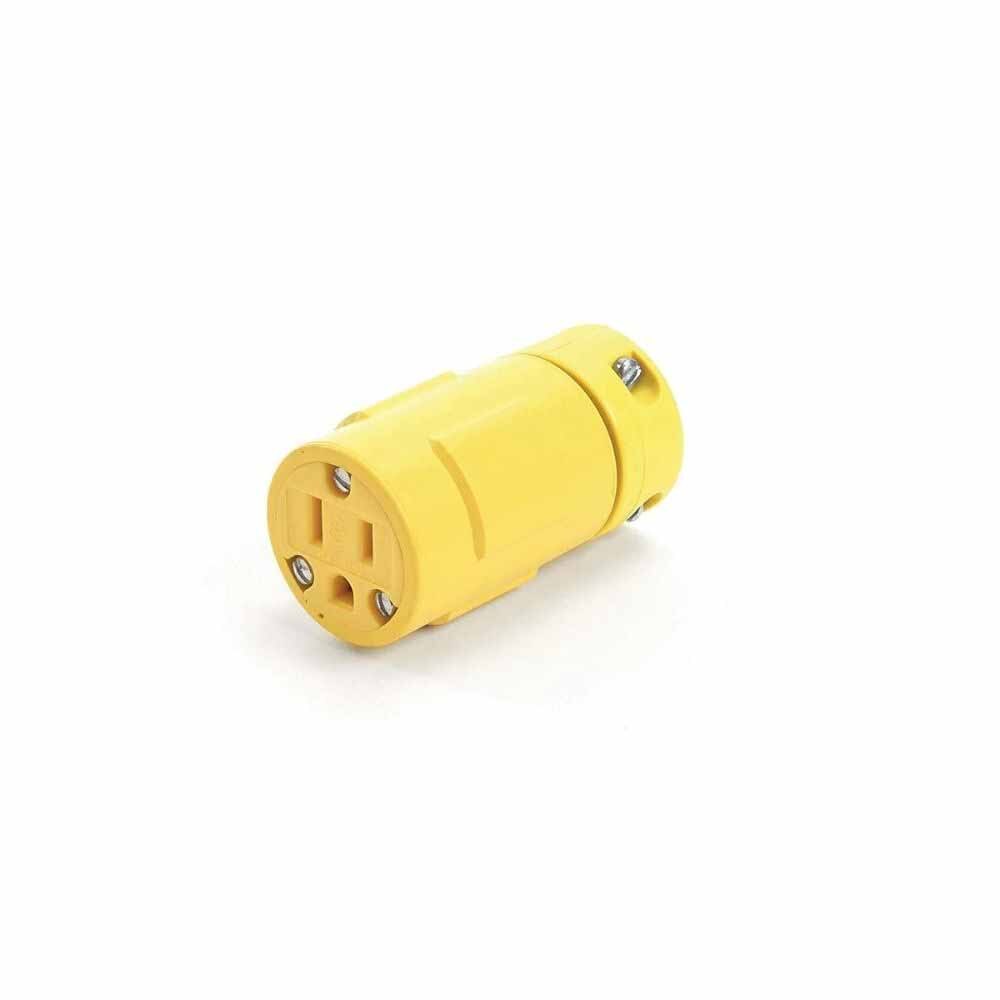

Southwire 59910000 15A/125V UG 5-15 Straight Blade Female Connector

$31.93 $37.57

Description

15A/125V UG 5-15 Straight Blade Female Connector 59910000 Description

Heavy duty commercial grade replacement connector end features thermoplastic elastomer housing and a dust and moisture seal around the cord.

15A/125V UG 5-15 Straight Blade Female Connector 59910000 Includes

  • (1) Female Connector

15A/125V UG 5-15 Straight Blade Female Connector 59910000 Features

  • Straight blade connector offers safe and secure usage with power tools and machinery with varying voltage. Floating blade construction ensures self-alignment and a longer tool life
  • NEo-TEX Paracril OZO rubber body of Safeway connector ensures an abrasion-free performance. It offers application in harsh indoor/outdoor environments with exposure to extreme temperature and chemicals
  • The industrial connector with CSA and UL electrical safety certification provides exceptional durability and performance. The improved mechanical and electrical connections limits wear and heat generation
  • This power entry connector can be connected using a straight blade, Phillips, and square-drive screwdrivers. Captive, tri-drive head, stainless steel speed screw of this plug provides easy assembly and long life
  • This circular connector features 2 poles, 3 wires with NEMA 5-15 configuration. Yellow rubber connector with color-coded terminal screws runs on 15A/125V

15A/125V UG 5-15 Straight Blade Female Connector 59910000 Specifications

Voltage 125V
Amperage 15A
Device Type Connector
Grade Commercial
Connector NEMA 5-15R
Type Dust Tight Female
Material Brass/Nylon/PVC
Operating Temperature -20 to 60 deg. C
Color Yellow
Cable Size Range 0.300" - 0.655"
Number of Poles 2
Number of Wires 3
