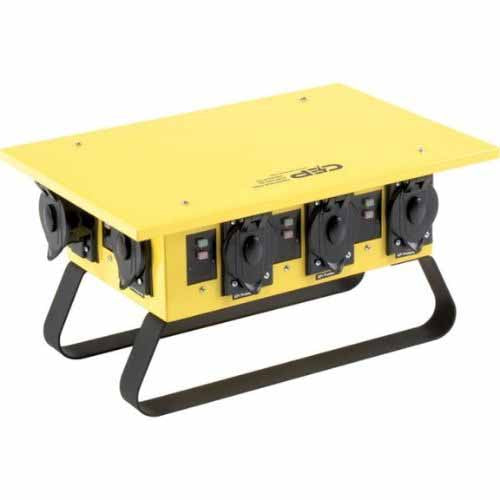

Southwire 6506UGSD X-Treme Box 50A 125/250V UG Power Distribution Box w/ Sled Base
Description
Description
CEP 6506UGSD Description
CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.
CEP 6506UGSD Includes
- (1) Temporary Power Box
CEP 6506UGSD Features
- 50 Amp 125V/250V CS6375 Twist Lock Non GFCI Protected Inlet
- 50 Amp 125V/250V CS6369 Twist Lock Non GFCI Protected Output
- 1-30 Amp 250V L6-30R Twist Lock Non GFCI Protected Output, Overload protected
- 6-20 Amp 125V 5-20R Straight GFCI Protected Output
- U designates straight blade 20A 125V receptacles
CEP 6506UGSD Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| Outlet Type | T-Slot |
| Outlet Description | Classic 6 Outlet U-Ground |
| Power Inlet | CS6375 |
| Power Outlet | CS6369 |
| Receptacles | (6) L5-20R, (1) L6-30R |
| GFI | Yes |
| GFI Specs | 4-6 Milliamp Trip Level, |
| Construction | Powder Coated Steel |
| Feed-Through | Yes |
| 3R Rated | Yes |
| Base | Sled Base |
