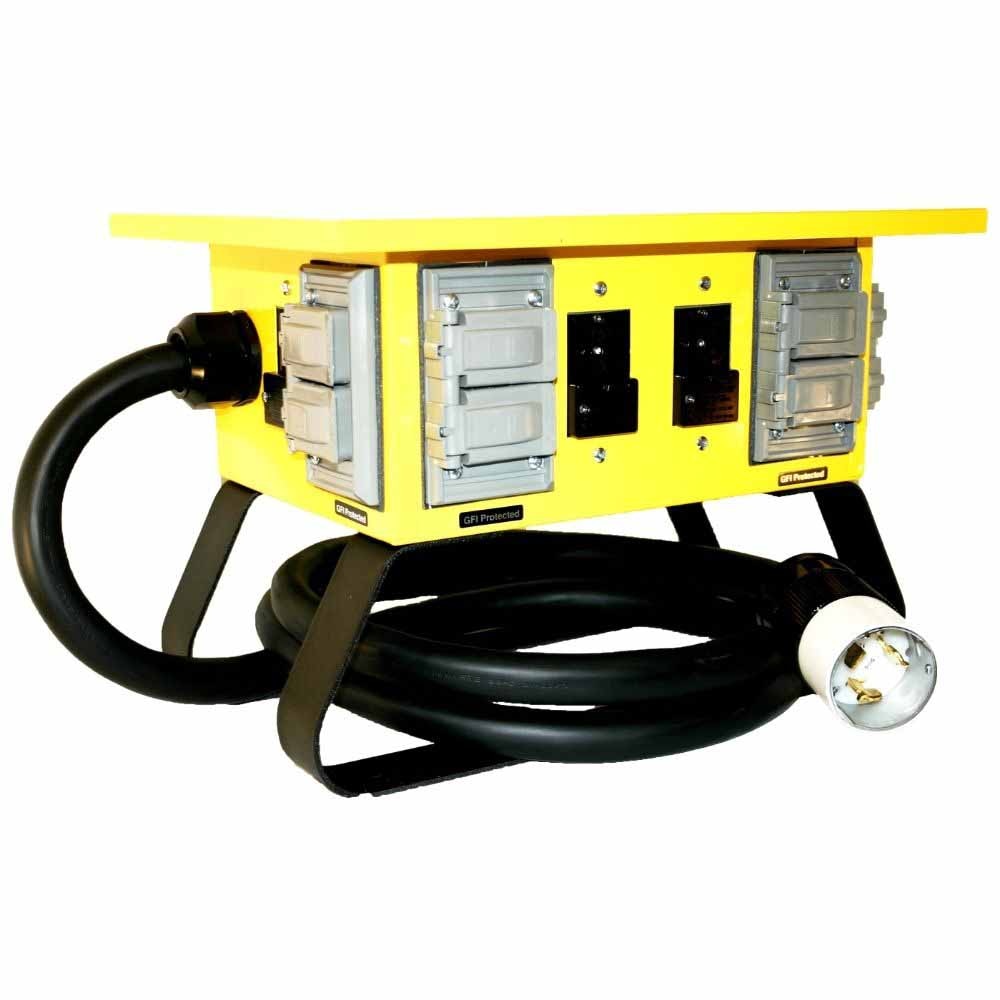

Southwire 6508UGSX 50A 125/250V UG Temporary Power Distribution w/ Sled Base
Free Shipping
$531.09
$853.89
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description
CEP 6508UGSX Includes
- (1) Power Distribution Box
CEP 6508UGSX Features
- 14 Ga. Steel endures for years of use
- Heavy-duty, impact & flame-resistant enclosure
- GFCI Protection includes open neutral, reverse phasing, & 240V shut-off with indicator light
- Outdoor and Indoor-Rated Options allow application based choices without extra cost
- GFCI meets UL 943 requirements with 4-6 milliamp trip level,
- 20-Amp, 30-Amp, and 50-Amp 125/250V 3 Pole 4 Wire
CEP 6508UGSX Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| Outlet Type | U-Ground |
| Outlet Description | Classic 4 Outlet Duplex U-Ground |
| Power Input | CS6365M 125/250V |
| Recepracles | NEMA 5-20 GFCI Protected Duplex |
| GFI | Yes |
| GFI Specs | 4-6 Milliamp Trip Level, |
| Construction | Powder Coated Steel |
| Rating | 50A Type 3R Outdoor |
| Base | Sled BaseCEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL 1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards. |
