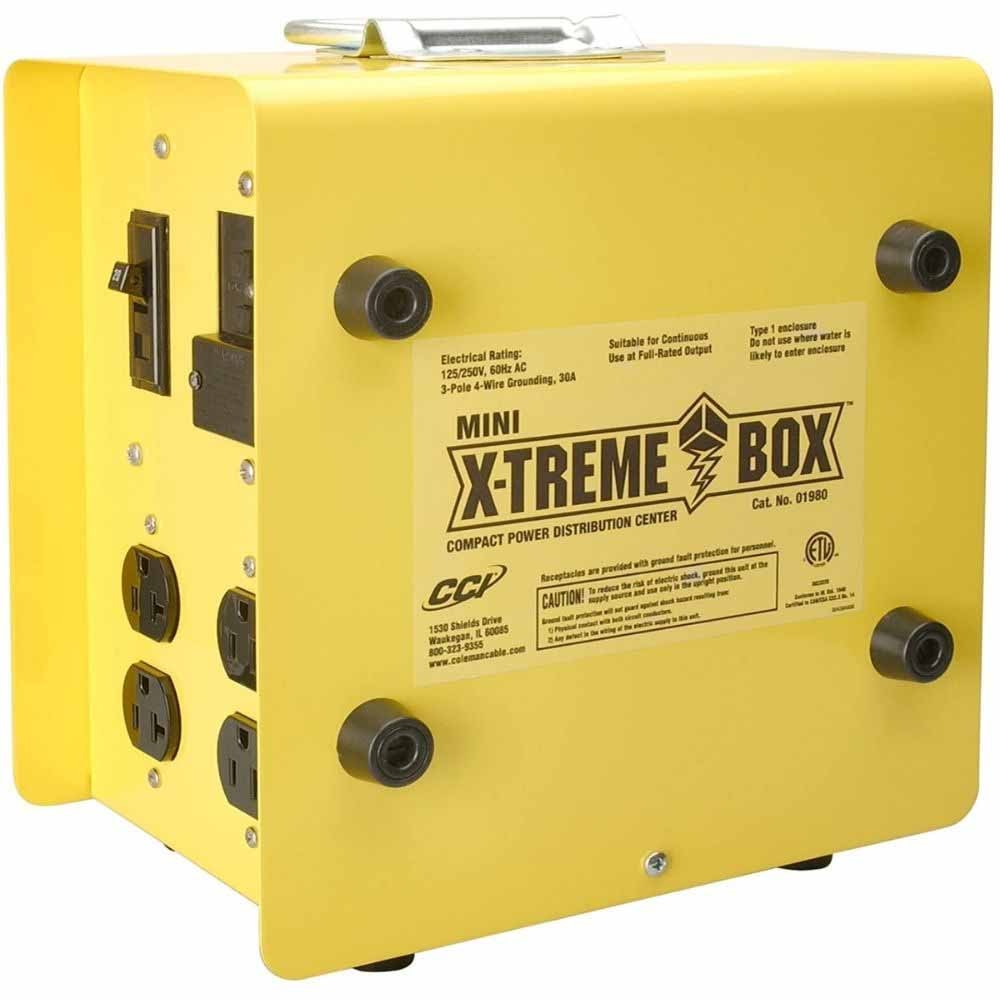

Southwire 6532UGM1 Mini X-Treme Box 30A UG Temporary Power Distribution, 8 Outlet Straight Blade
Free Shipping
$257.88
$429.81
Unit price
/
Unavailable
Description
Description
CEP 6532UGM1 Description
The Mini X-Treme Box™ provides more impact and less costly work-site power distribution than our popular full size models. Used along with our restoration adapters, these units are ideal for disaster restoration work where the only available power is from range outlets, dryer outlets or portable generators. Or, they can be used in any situation where a more compact, easier-to-handle unit is desired to safely expand and distribute power on jobsites.
CEP 6532UGM1 Includes
- (1) Power Distribution Box
CEP 6532UGM1 Features
- OSHA and NEC Compliant, UL Listed, and Certified to CAN/CSA
- Ready to use out of the box
- 8 overload, circuit-breaker protected 20 amp straight blade outlets
- All outlets are GFCI protected with open neutral and over-voltage protection
- Compact size for ease of use
- May be used in vertical or horizontal positions
CEP 6532UGM1 Specifications
| Maximum Amperage | 30A |
| Voltage | 125/250V |
| Outlet Type | U-Ground |
| Output Configuration | 5-20 U-Ground |
| Power Connector | 30 Amp 125/250V 3P 4W NEMA L14-30P |
| Power Specification | 125/250V 30 Amp 3P 4W |
| Feed-Thru Connector | 4 x NEMA 125V 20-Amp 5-20 Duplex Receptacles with Dedicated GFCI Protection on 2 Circuit Breakers |
| Outputs | 4 x NEMA 125V 20-Amp 5-20 Duplex Receptacles with Dedicated GFCI Protection on 2 Circuit Breakers |
| Rating | 30A Type 1 Indoor |
| Base | Mini with Feet |
| GFI Specs | 4-6 Milliamp Trip Level, |
