Southwire | SKU:
6606GUF-524

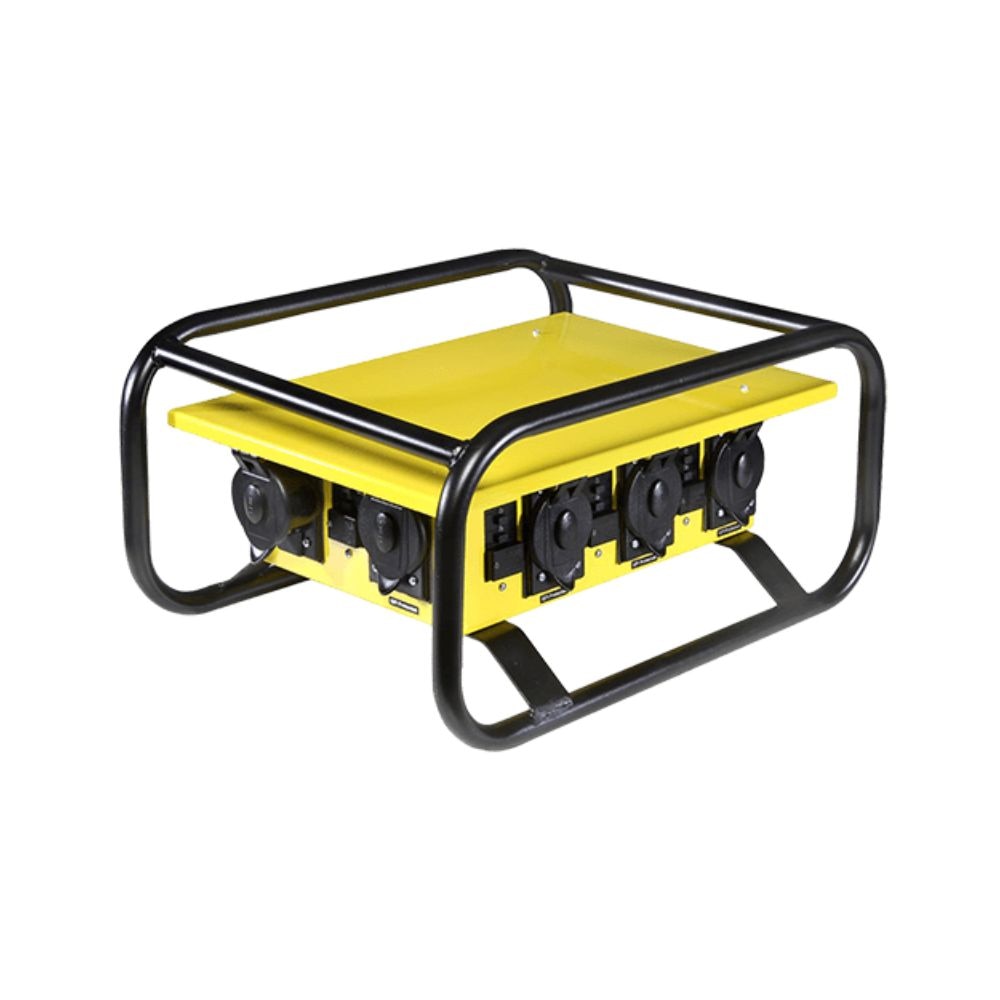

Southwire 6606GUF-524 Spider Box, 50A 125/250V Input, 4 - 20A 250V (L6-20R) TL Outlets
Free Shipping
$1,334.62
Unit price
/
Unavailable
Description
Description
Southwire 6606GUF-524 Description
Heavy duty rugged specialty boxes are UL/cUL to UL 1640 and may be custom configured to meet the needs of specific user applications. The items below are commonly ordered products. Please contact us for any modifications required. These boxes are available in either stainless steel or powder coated steel with Legs or Wrap- Around Frame. Add “S” for stainless steel or “F” for Wrap-Around Frame to the part number.
Southwire 6606GUF-524 Includes
- (1) Power Distribution Box
Southwire 6606GUF-524 Features
- Powers additional Temporary Power Boxes, or plugs directly into Single-Phase Systems
- 14 Ga. Steel or Stainless-Steel Construction endures for years of use
- Heavy-duty, impact & flame-resistant enclosure
- 125/250V 3 Pole 4 Wire to 4- or 6- outlet configurations
Southwire 6606GUF-524 Specifications
| Power Rating | 50A, 125/250V |
| Fead-Through | Yes - CS6369 |
| Power Inlet | CS6375 |
| Receptacles | 4 x NEMA L6-20 |
