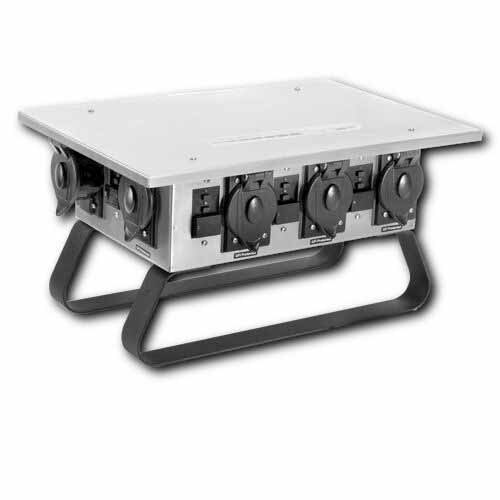

Southwire 7506TLSX X-Treme Box 50A 125/250V TL Power Distribution Box w/ Classic Leg
Description
Description
CEP 7506TLSX Description
CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL 1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.
CEP 7506TLSX Includes
- (1) Temporary Power Box
CEP 7506TLSX Features
- UL1640 Compliant
- GFCI's provide open neutral and reverse phasing protection.
- "Power On" indicator lights on GFCI's.
- Heavy Duty M.O.V. helps protect GFCI's from power surges.
- 1 - 50 Amp 125/250 Volt feed through receptacle.
- 1 - 30 Amp 125/250 Volt non-GFCI receptacle.
- 6 - 20 Amp 125 Volt GFCI individually protected receptacles.
CEP 7506TLSX Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| Outlet Type | Twist Lock |
| Outlet Description | Classic SS 6 Outlet Twist Lock |
| Power Inlet | 50A 125/250V CS6375H |
| Power Outlet | 50A 125/250V CS6369H |
| Receptacles | (6) L5-20R, (1) L6-30R |
| GFI | Yes |
| GFI Specs | 4-6 Milliamp Trip Level, |
| Construction | Heavy-Duty Stainless Steel |
| Feed-Through | Yes |
| 3R Rated | Yes |
| Base | Classic Legs |
| Weight | 29 lbs |
