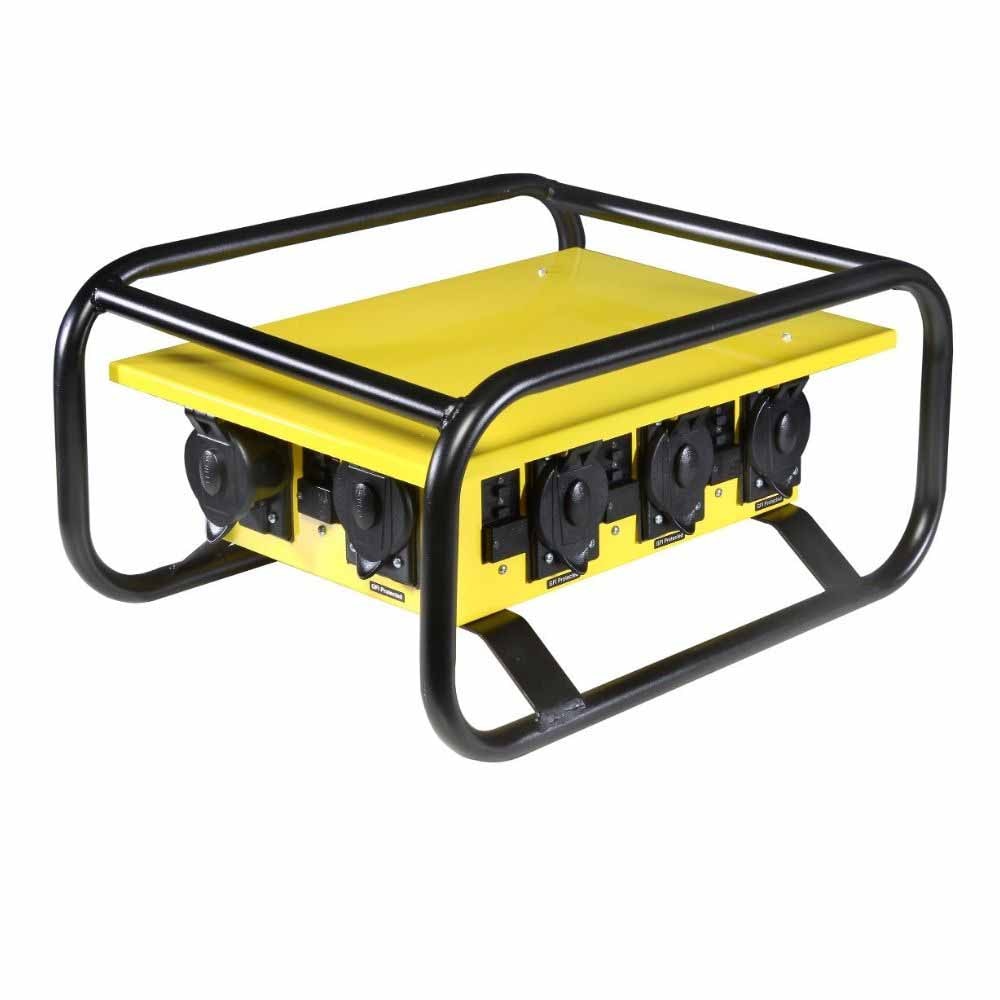

Southwire 7706UGCX X-Treme Box 50A 125/250V UG Power Distribution Box Stainless w/ Roll Cage
Description
Description
CEP 7706UGCX Description
CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user open neutral and reverse phasing protection. They are U.L. listed for outdoor use and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards. Engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. They are U.L. Listed for outdoor use and designed to stand up to the toughest of jobsite conditions.
CEP 7706UGCX Includes
- (1) Temporary Power Box
CEP 7706UGCX Features
- UL1640 Compliant
- GFCI's provide open neutral and reverse phasing protection.
- "Power On" indicator lights on GFCI's.
- Heavy Duty M.O.V. helps protect GFCI's from power surges.
- 1 - 50 Amp 125/250 Volt feed through receptacle.
- 1 - 30 Amp 125/250 Volt non-GFCI receptacle.
- 6 - 20 Amp 125 Volt GFCI individually protected receptacles.
- "U" designates straight blade 20Amp 125V receptacles
CEP 7706UGCX Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| Outlet Type | T-Slot |
| Outlet Description | Rugged SS 6 Outlet U-Ground |
| Power Inlet | CS6375 |
| Power Outlet | CS6369 |
| Receptacles | (6) L5-20R, (1) L6-30R |
| GFI | Yes |
| GFI Specs | 4-6 Milliamp Trip Level, |
| Construction | Heavy-Duty Stainless Steel |
| Feed-Through | Yes |
| 3R Rated | Yes |
| Base | Roll Cage |
| Weight | 34 lbs |
