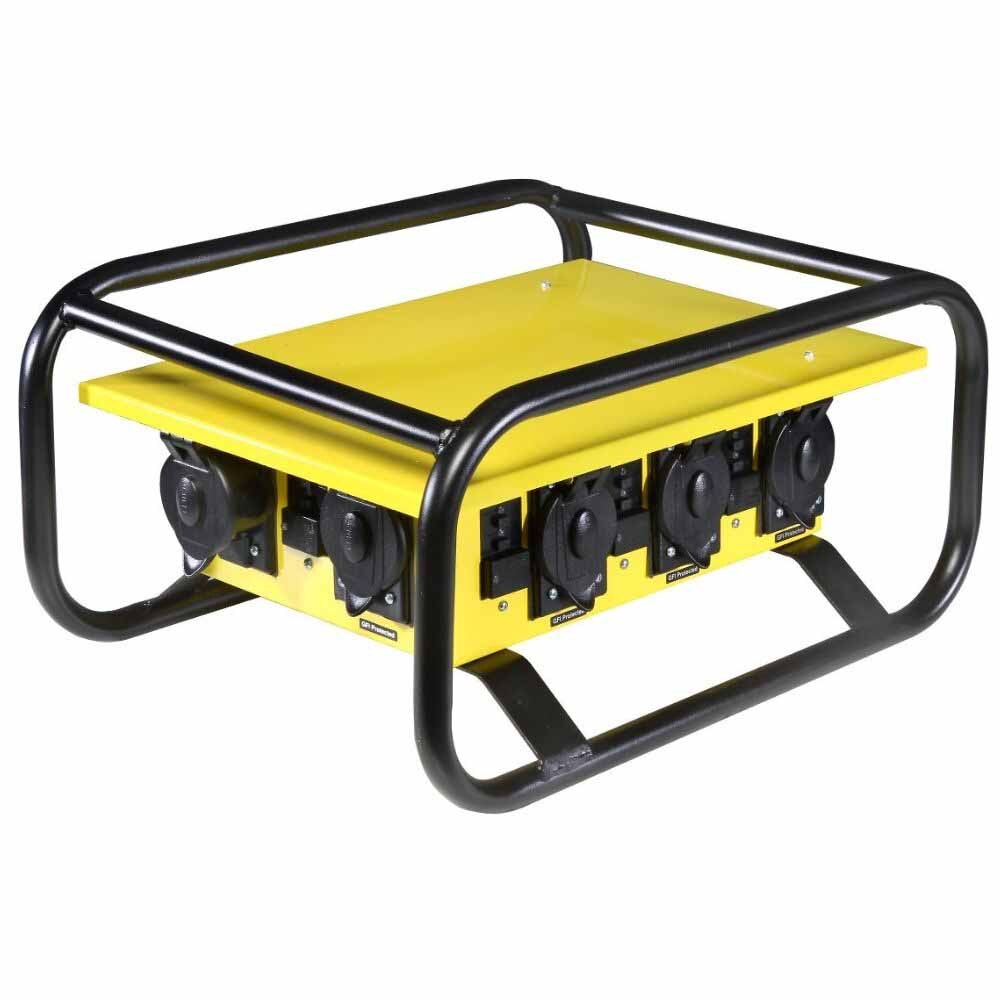

Southwire 8706UGCX X-Treme Box 50A 125/250V UG Power Distribution Box w/ Roll Cage
Description
Description
CEP 8706UGCX Description
CEP’s Portable Power Distribution Centers (Temp Power Boxes) have been engineered utilizing the latest in GFCI technology, providing the user with the highest level of electrical safety. These power distribution centers are protected by a GFCI module giving the user not only ground fault protection, but also open neutral and reverse phasing protection. They are listed to UL 1640 standards for portable power distribution and designed to stand up to the toughest of jobsite conditions. Each unit has been carefully assembled to provide the ultimate in electrical safety as well as meeting current OSHA standards.
CEP 8706UGCX Includes
- (1) Temporary Power Box
CEP 8706UGCX Features
- HEAVY GAUGE carbon-steel case with corrosion resistant finish and a steel-reinforced sled base offer excellent durability
- Dedicated GFCI module and circuit breaker for each 20 amp receptacle
- Flagged circuit breakers for easier troubleshooting
- Premium breakers and all-copper backplane for superior performance
- OHA/NEC/CEC Compliant, cULus Listed to NEMA 3R
- OUTLETS overload protected; Open neutral and over-voltage protection on all 20 A outlets
- Advanced GFCI technology with open neutral and over-voltage protection
- WEATHER-PROOF receptacles and ciruit breaker cover
- Locking or straight blade receptacle models available
CEP 8706UGCX Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| Outlet Type | T-Slot |
| Outlet Description | Rugged 6 Outlet U-Ground |
| Power Inlet | 50A 125/250V CS6375H |
| Power Outlet | 50A 125/250V CS6369H |
| Receptacles | (6) L5-20R, (1) L6-30R |
| GFI | Yes |
| GFI Specs | 4-6 Milliamp Trip Level, |
| Construction | Powder Coated Steel |
| Feed-Through | Yes |
| 3R Rated | Yes |
| Base | Roll Cage |
| Weight | 34 lbs |
