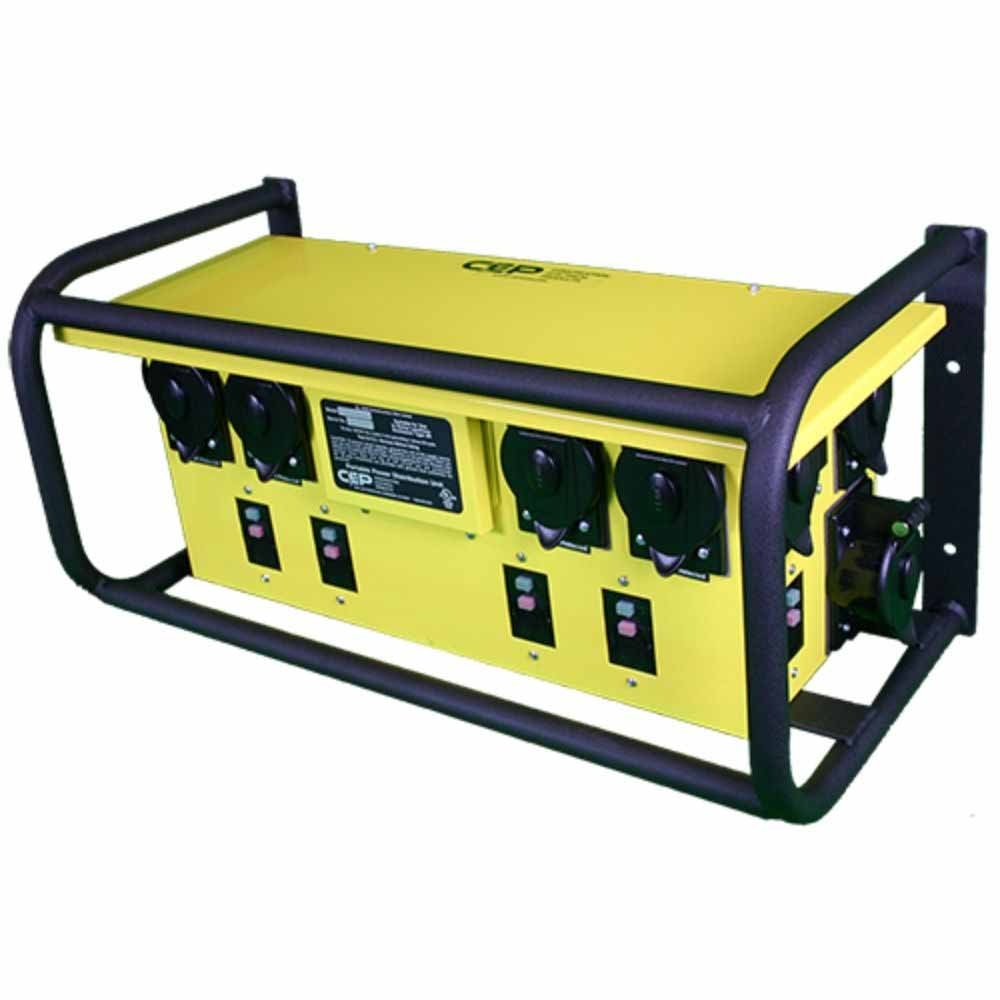

Southwire 8806TLFX 50A 125/250V Wall Mount TL Barricade Box w/ Frame, 6 Outlet
Description
Description
CEP 8806TLFX Description
Engineered using the latest in GFCI Technology, and providing the user with the highest level of Electrical Safety, Southwire’s newest line of wall-mounted Barricade Boxes is an innovation for the construction industry. With OSHA mandating that cords, cables, and hoses be removed from the floor, the Barricade Box gives the user a perfect solution while keeping the outdoor rating of the product. The box is UL Listed for Outdoor Use and required to mount off the floor away from water, dust, mud and other harmful environmental elements, with both 6-circuit and 8-circuit versions available, with or without rugged frame.
CEP 8806TLFX Includes
- (1) Power Distribution Box
CEP 8806TLFX Features
- 16 ga. powder coated and painted steel
- Heavy–duty impact and flame resistance
- GFCI Protection – Open Neutral, Reverse Phasing & 240V Shut-Off technology with indicator light.
- Available in 6 outlet and 8 outlet. Each outlet wired onto its own circuit.
- Meets the current OSHA standards for Electrical Safety and can help meet their latest standard to reduce tripping hazards.
CEP 8806TLFX Specifications
| Amperage | 50A |
| Voltage | 125/250V |
| Outlet Type | Twist Lock |
| Output Configuration | L5-20, L6-30 |
| Power Inlet | CS6375 |
| Power Outlet | CS6369 |
| Receptacles | (6) NEMA L5-20 125V 20A 2P3W 'Twist-Lock' Single Receptacles with Dedicated GFCI Protection, (1) 250V 2P3W 30-Amp NEMA L6-30 |
| Structure | Frame |
