Southwire  |  SKU: 8806UGBX  |  Barcode: 811409020175

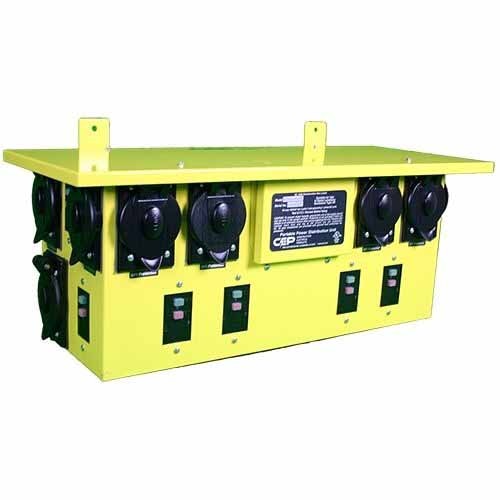

Southwire 8806UGBX 50A 125/250V Wall Mount UG Barricade Box w/ Hanging Ears, 6 Outlet

Free Shipping
$806.73 $1,344.54

Description

CEP 8806UGBX Description

Engineered using the latest in GFCI Technology, and providing the user with the highest level of Electrical Safety, Southwire’s newest line of wall-mounted Barricade Boxes is an innovation for the construction industry. With OSHA mandating that cords, cables, and hoses be removed from the floor, the Barricade Box gives the user a perfect solution while keeping the outdoor rating of the product. The box is UL Listed for Outdoor Use and required to mount off the floor away from water, dust, mud and other harmful environmental elements, with both 6-circuit and 8-circuit versions available, with or without rugged frame.

CEP 8806UGBX Includes

  • (1) Power Distribution Box

CEP 8806UGBX Features

  • 16 ga. powder coated and painted steel
  • Heavy–duty impact and flame resistance
  • GFCI Protection – Open Neutral, Reverse Phasing & 240V Shut-Off technology with indicator light.
  • Available in 6 outlet and 8 outlet. Each outlet wired onto its own circuit.
  • Meets the current OSHA standards for Electrical Safety and can help meet their latest standard to reduce tripping hazards.

CEP 8806UGBX Specifications

Amperage 50A
Voltage 125/250V
Outlet Type U-Ground
Output Configuration L5-20, L6-30
Power Inlet CS6375
Power Outlet CS6369
Receptacles (6) NEMA 5-20 125V 20A 2P3W 'T-Slot' Single Receptacles with Dedicated GFCI Protection, (1) 250V 2P3W 30-Amp NEMA L6-30
Structure Hanging Ears
