SKU: 58742940  |  Barcode: 032886935053

Southwire B600 B600 Professional Telephone Test Set

$172.01 $175.03
POWERED BY

We've got you covered.

Package Protection gives you peace of mind while saving you time and money.

  • Package Protection

    Coverage in case your package is damaged in transit, stolen, or doesn't arrive.

  • Instant Issue Resolution

    Get a refund or replacement in just a few clicks.

  • 24/7 Claim Support

    Route is here for you whenever an issue arises — with an average response time of under an hour.

Route Package Protection extends coverage for online purchases that are lost or damaged in transit, or stolen immediately after the carrier's proof of delivery where Route traces the transportation. Route App, Inc. (Route) is the named insured on the package insurance policy ("Policy"); Route Insurance Solutions ("RIS"), Route's licensed producer entity, procures the Policy from SEG Insurance Ltd. Route, through RIS, may receive compensation for its services.
At a Glance
Number Of Pieces 3
Wire Types Telephone
Display Type LED
Test Type Insulation
Sold As Set/Kit
For Use With Cable Tester

Description
INCLUDES:

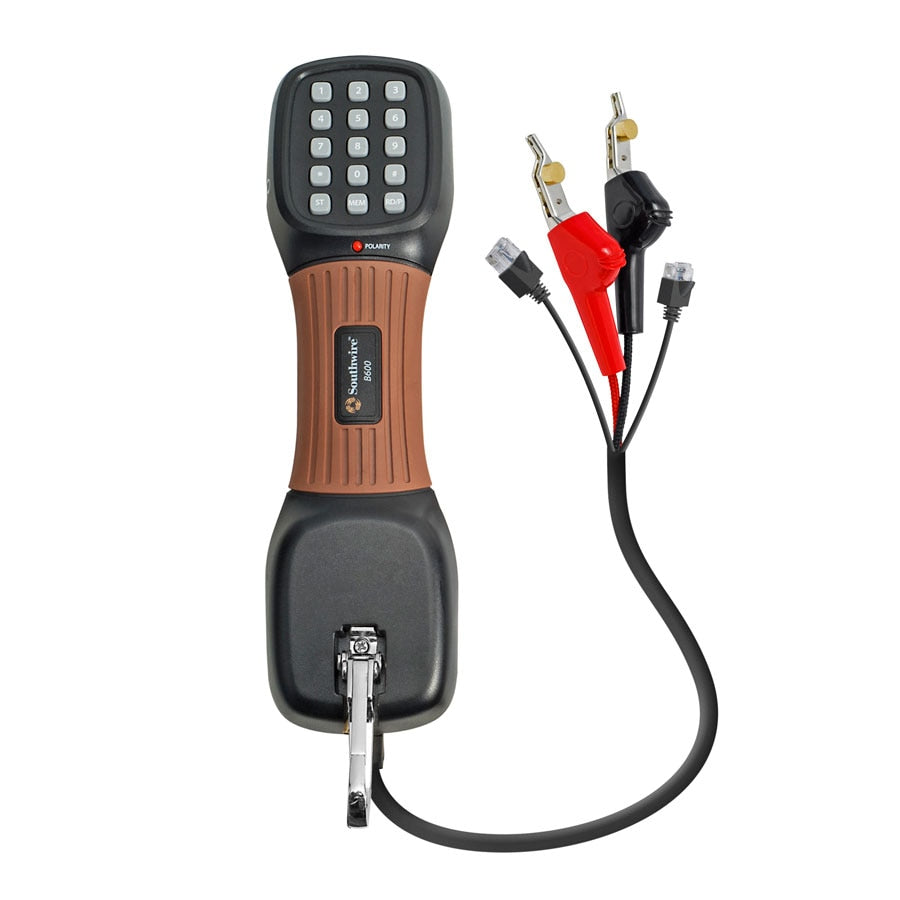

• (1) Professional telephone test set
• (1) ABN test leads
• (1) CR2032 battery

FEATURES:
• "Hi-Z" monitoring will not disrupt network traffic
• High and low volume settings, Polarity LED, Tone & Pulse modes

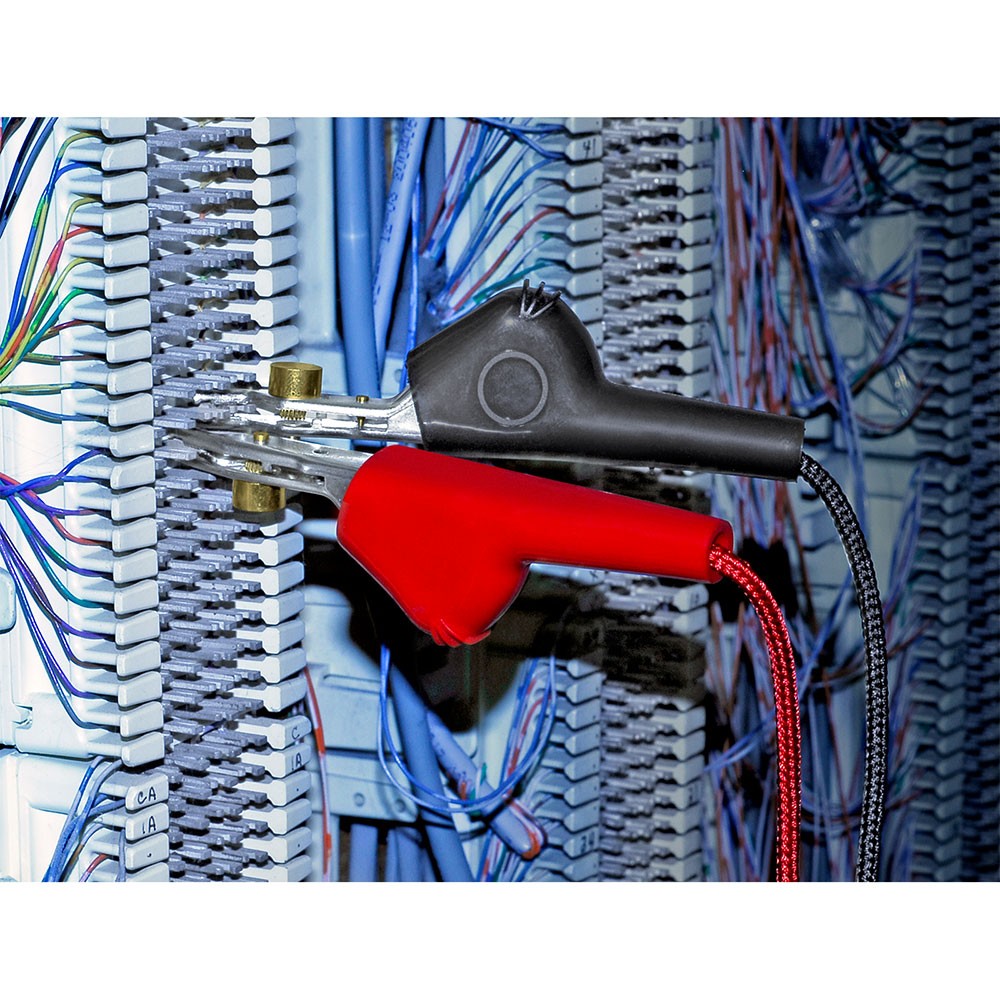

• ABN (Angled Bed of Nails) Clips with Rugged RJ45 and RJ11 Plugs
• Last number redial and memory to store up 10 phone numbers
• Double-molded housing for comfort and durability

SPECIFICATIONS:
• Dimensions: 8.8" x 2.43" x 2.49" (22.3cm x 6.17cm x 6.33 cm)
• Weight: 0.89lbs (403.7g)
• Battery: CR2032 (included)
• Electrical Operating Temperature: 32°F to 122°F (0°C to 50°C) Storage Temperature: -4°F to 140°F (-20°C to 60°C) Humidity: 10% to 90% non-condensing Loop Limit: 2.4K? maximum at 48VDC (nominal 15 mA minimum loop current) DC Resistance: (Talk Mode) 150? typical at 80mA current AC Impedance (Monitor Mode): HI Z: 100k?@ 1KHz RING: 600? @ 1KHz
• Rotary Dial Output Pulsing Rate: 20pps +/-0.5pps Percent Break: 60% +/-2% Interdigit Interval: 500 ms typical Leakage During Break: >50K?
• DTMF Outout Tone Frequency Error: +/-1% maximum Level per Tone Pair: +2dBm maximum,-8dBm minimum High versus Low Tone Difference: 4dBm maximum

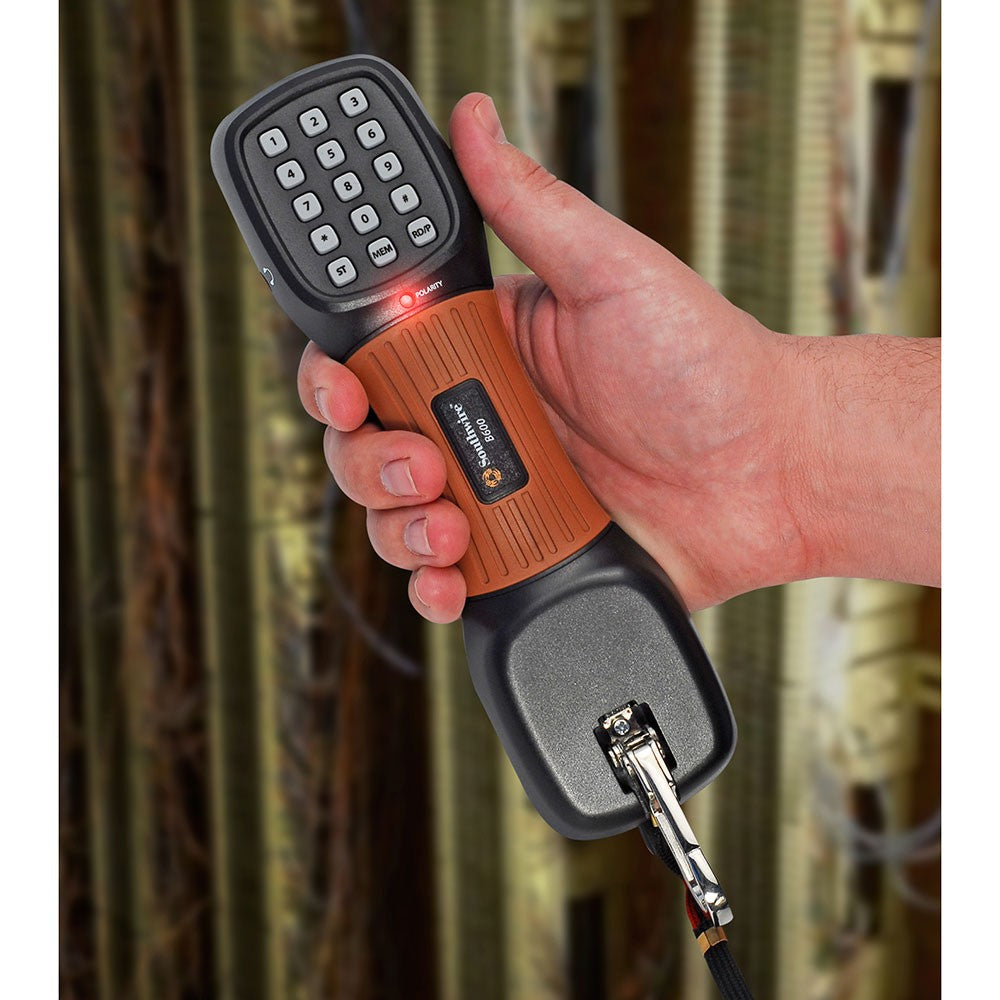

Professional Telephone Test Set B600 Professional Telephone Test Set features Hi-Z monitoring, Pulse and Tone (DTMF), 10 number speed dial and polarity indication. This Test Set comes in a rugged double molded housing, built for durability.
Toolup Part # : 382284
