Southwire | SKU:
58745040

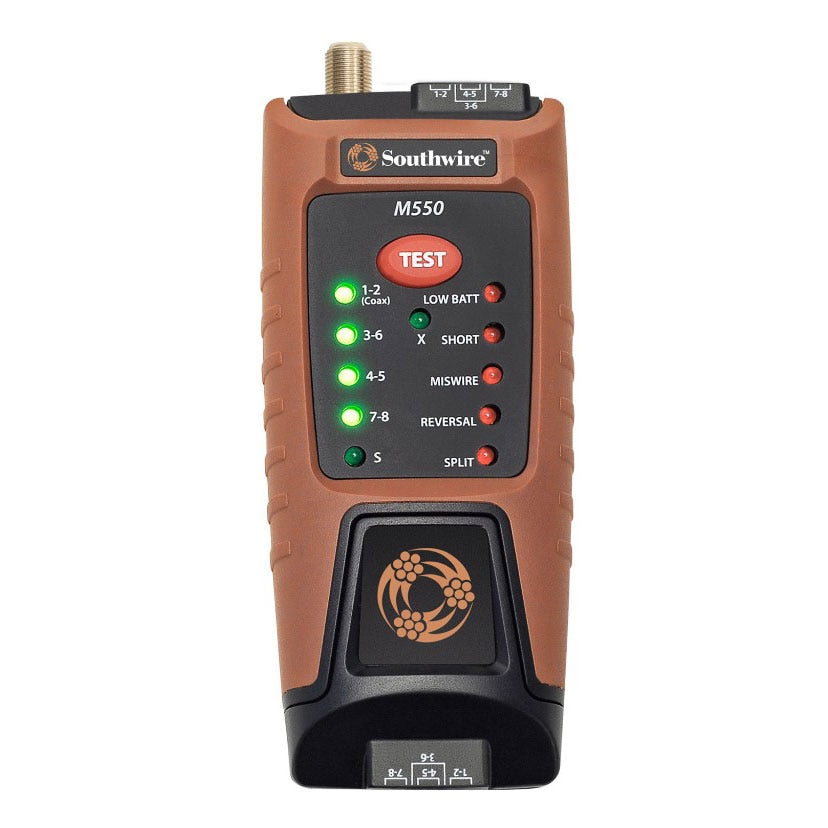

Southwire M550 M550 Continuity Tester for Data and Coax Cables
$45.48
$52.48
Unit price
/
Unavailable
Description
Description
• (1) Data/video cable tester
• (2) AAA batteries
• (1) Adapter cables
FEATURES:
• Quickly detects wiring faults in network and coax cables
• Test patch cables or installed cables
• Identifies correct wiring, opens, shorts, reversals, miswires, split pairs, and shielded cables
• Auto power off
• Tests shielded, unshielded twisted pair, and coax
SPECIFICATIONS:
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Humidity: 10% to 90%, non-condensing
• Maximum Voltage between any two pins without damage: 60V DC or 55V AC
• Batteries: Two “AAA” 1.5V
• Cable Types: Shielded or Unshielded: Cat 7, Cat 7a, Cat 6a, Cat 6, Cat 5e, Cat 5, Car 4, Cat 3, Coax
• Maximum Coax Cable Length: 1000 feet (305m)
• Minimum Cable Length for Split Pair Detection: 1.6ft (0.5m)
• Dimensions: 5.11” x 2.05” x 1.30” (13.0cm x 5.2cm x 3.3cm)
• Weight: 0.4lbs (181.4g)

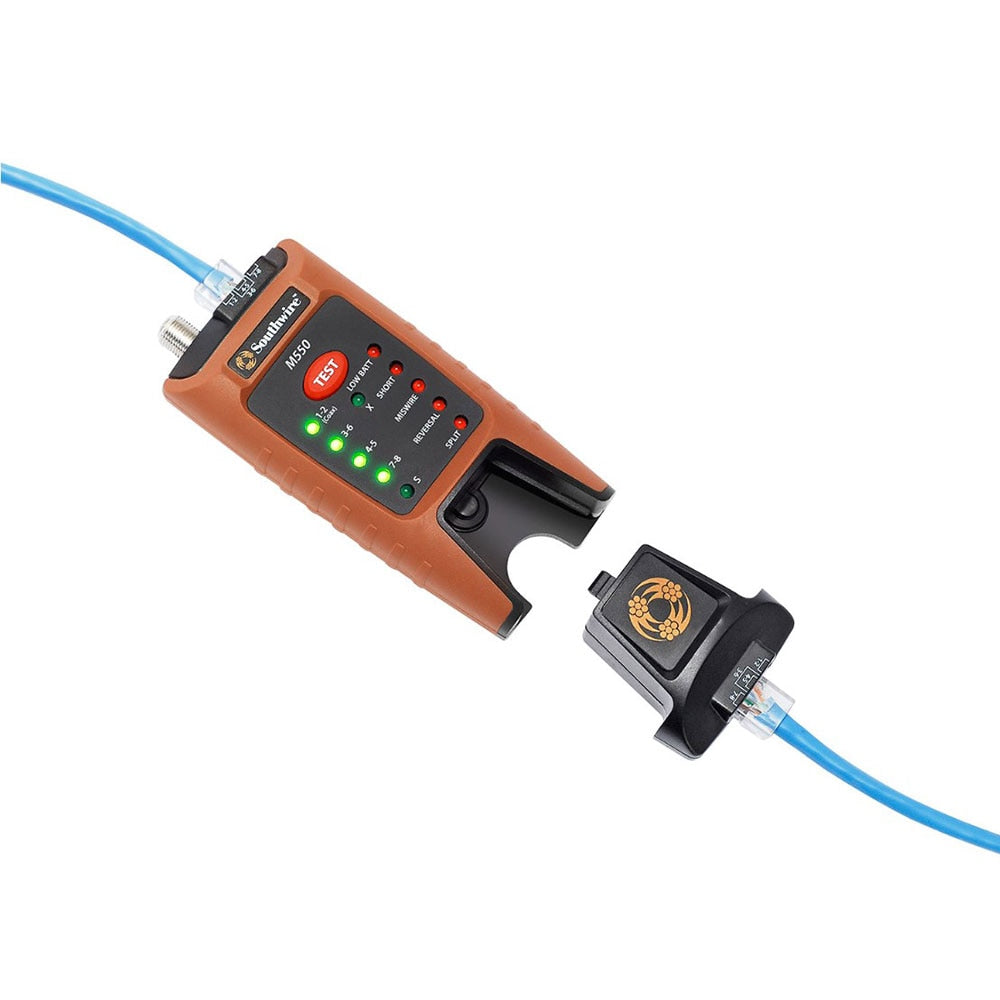

Data/Video Cable Tester M550 The M550 gives instant continuity status for both twisted pair and coaxial cables. Features rugged double molded tester body with on-board remote storage and an easy-to-interpret LED display.
