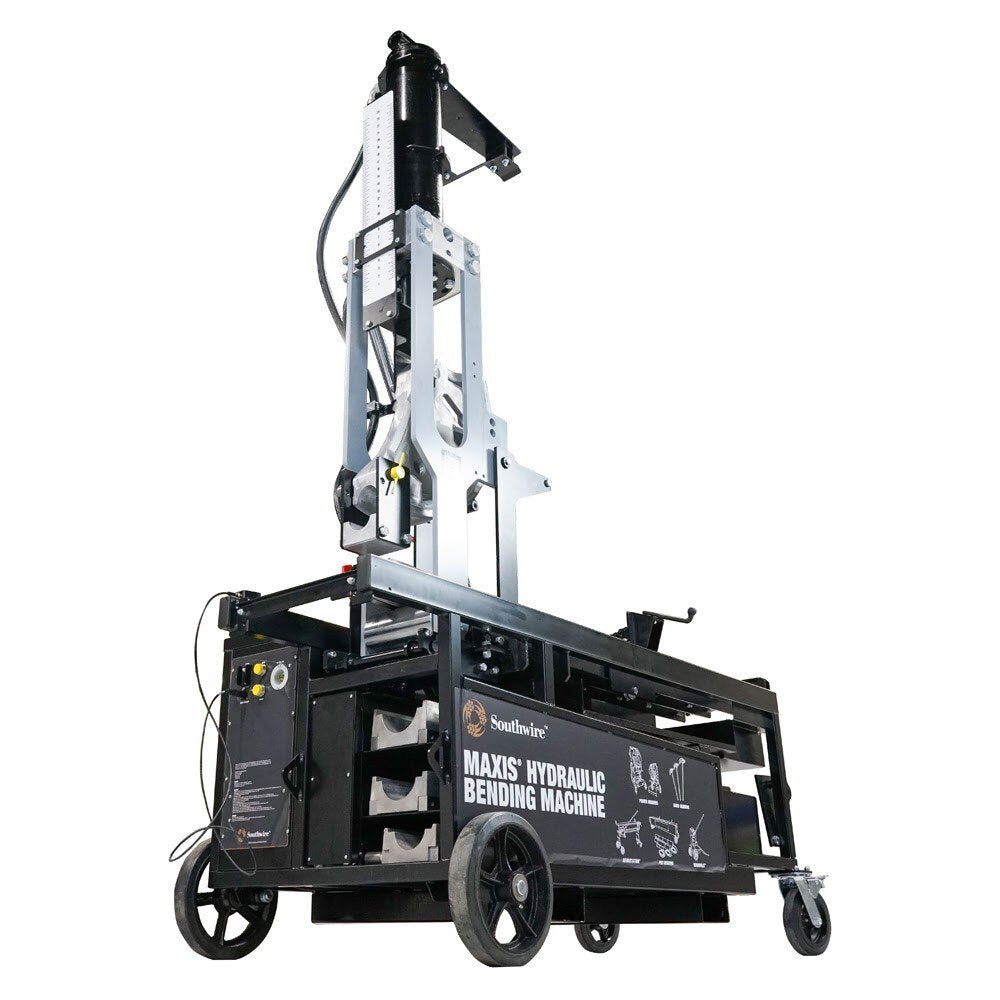

Southwire MHB4000 66978340 Complete Hydraulic Conduit Bending Machine For 2.5” - 4” EMT, IMC And GRC Pipe

Name: Southwire MHB4000 66978340 Complete Hydraulic Conduit Bending Machine For 2.5” - 4” EMT, IMC And GRC Pipe
Brand: Southwire
SKU: 682618
Price: 35200.0 USD
Availability: InStock

$9,800.00 off

$35,200.00 ~~$45,000.00~~

One Man Operation, One Shot Bends, All-In-One Mobility

Description

Southwire MHB4000 Description

A complete solution for bending 2.5-4 inch Rigid, IMC and EMT conduit with ergonomic storage and transport cart and 90 degree shoes. Precision-engineered for heavy conduit installations, this American-made Maxis Hydraulic Bender delivers the power, accuracy, and mobility professional electrical contractors demand. Built specifically for large conduit work, it handles jobsite challenges with advanced features that boost productivity while reducing user fatigue. The hydraulic bender's dual-action, long-stroke cylinder offers precise control through a simple handheld pendant - just press the raise or return buttons to make fine adjustments in small increments. This control system allows for quick installation of shoes, follow bars, and hooks without time-consuming height adjustments between different shoe sizes, saving valuable minutes on every bend.

Southwire MHB4000 Includes

(1) Maxis Hydraulic Bending Machine

Southwire MHB4000 Features

Truly one man setup and operation
Dual action long stroke cylinder
3,000 PSI integrated pump
Self raising mast section
Convenient storage for shoes, sleds, and collars
One shot shoes
Includes Southwire easy load conduit collars

Southwire MHB4000 Specifications

Bending Capacity	2.5–4 in EMT, IMC, and GRC pipe
Integrated Pump Pressure	3,000 PSI
Width	60 in
Height	65 in
Length	39.5 in
Weight	1350 lbs

Setting up your Southwire MHB4000 Bender

Initial Setup

Find a clear work area and engage the brakes on the bender
Connect to power using a 10-gauge, 50-foot extension cord
Raise the mast by pushing the mast lock handle forward while pressing the "raise" button on the main control panel

Follow Bar Installation

Select the appropriate follow bar for your conduit size
Identify the rear end by its two right-angle tabs
Insert that end between the main cylinder forks, rotating slightly as needed
The end with two right-angle tabs should face the rear

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

CORE FEATURES OF THE SOUTHWIRE MHB4000 MAXIS HYDRAULIC BENDER

The Maxis Hydraulic Bending Machine delivers one-man operation capability, allowing a single electrician to complete bending tasks independently without needing extra hands. The dual-action long-stroke cylinder technology provides precise control through a handheld pendant - just press the raise or return buttons to make small adjustments. This design eliminates spring returns and reduces pump cycles, while the long-throw cylinder means no extra adjustments when changing shoes, saving you valuable time on the jobsite.

POWERFUL HYDRAULIC SYSTEM AND SELF-RAISING DESIGN

The integrated 3,000 PSI pump system eliminates separate power units and connection points, creating a self-contained system with easily accessible components for reduced maintenance. In other features that help the bender reduce the fatique of the user is its self-raising mast which positions itself hydraulically during setup, minimizing manual lifting and potential injury risks. It works easy enough with just the push of a button and the mast raises and locks in seconds, providing excellent rigidity and reducing front-to-back movement for consistent, accurate bends every time.

SMART STORAGE AND ORGANIZED WORKFLOW

Built-in storage compartments house shoes, collars, sleds, and accessories directly on the unit. Every component has its own clearly labeled, color-coded storage location to prevent mismatched parts and keep the workspace organized and safe. The one-shot shoe design allows for complete bends in a single operation, reducing time per bend compared to systems requiring multiple passes. The Easy Load conduit collar system guides pipe into position with minimal physical effort, decreasing setup time while reducing operator strain.

PRECISION CONTROLS AND CONVENIENCE FEATURES

The VFD Motor Control allows users to make small, precise shoe adjustments for a greater bend accuracy on complex jobsites. The industrial-grade magnetic pendant is machined from a single aluminum block with a magnetic back to stay securely in place on the bender and features a smooth, easy-to-clean surface.

Additional jobsite conveniences include a patent-pending Assist Pin, tool tray, pin tray, hook hanger, extra-large protractor, and storage canister for the user manual - all designed to improve efficiency and reduce frustration during daily use.

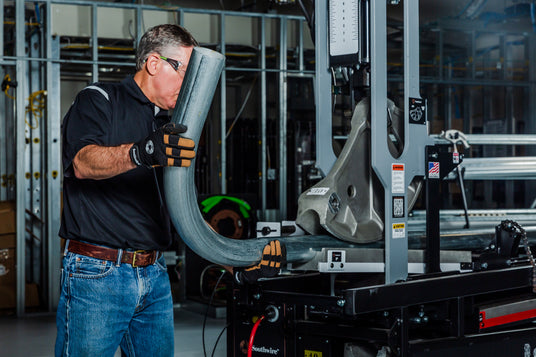

Fast and Accurate bends

With minimal time between bends and precise cylinder control, professisonals will spend less time on setup and more time making progress on the jobsite. The MHB4000 produces consistent, accurate bends every time thanks to its precision-machined shoes and follow bars. For electricians and contractors working with rigid conduit, this means fewer adjustments, reduced material waste, and more productive days on the job. The MHB4000 turns one of the most challenging parts of electrical installation into a streamlined process you can rely on.

Frequently Asked Questions

What power source does the Southwire Maxis MHB4000 Hydraulic Bending Machine require?

It operates on standard 120V AC power; use a grounded outlet and proper extension cord.

How often should the hydraulic fluid be changed?

Change the hydraulic fluid every 1,000 hours of use, every 3 years, or sooner if contamination is detected

Do I need to make any adjustments to the MHB4000 when bending EMT conduit versus IMC or Rigid conduit?

Yes, there is a simple adjustment required when switching between EMT and IMC/Rigid conduit. At the top of each bending shoe, you’ll find two pin holes. Use one pin hole for EMT conduit and the other for IMC or Rigid conduit. Be sure to select the correct pin hole for the type of conduit you’re working with.

To help you identify the right pin hole:

Look for the arrow cast into the shoe, which points to the EMT pin hole.
Check for a sticker on the cylinder yoke, which also indicates the correct pin hole to use.

Always double-check these indicators to ensure safe and accurate bending.

What kind of Hydraulic Fluid does the Southwire Maxis MHB4000 Bending Machine use?

According to Southwire's Operating and Maintenance Instruction Manual, users should always use AW 32 Hydraulic Oil with the same brand and viscosity grade originally specified. Do not mix different oils, as this may compromise system performance.

How often should I check the hydraulic fluid level of the MHB4000?

Regularly inspect the fluid level and keep it near the "Full" mark on the reservoir scale. Do not overfill. Maximum tank capacity is 3 gallons.
