Southwire T110TG Includes
- (1)Tone generator
Southwire T110TG Features

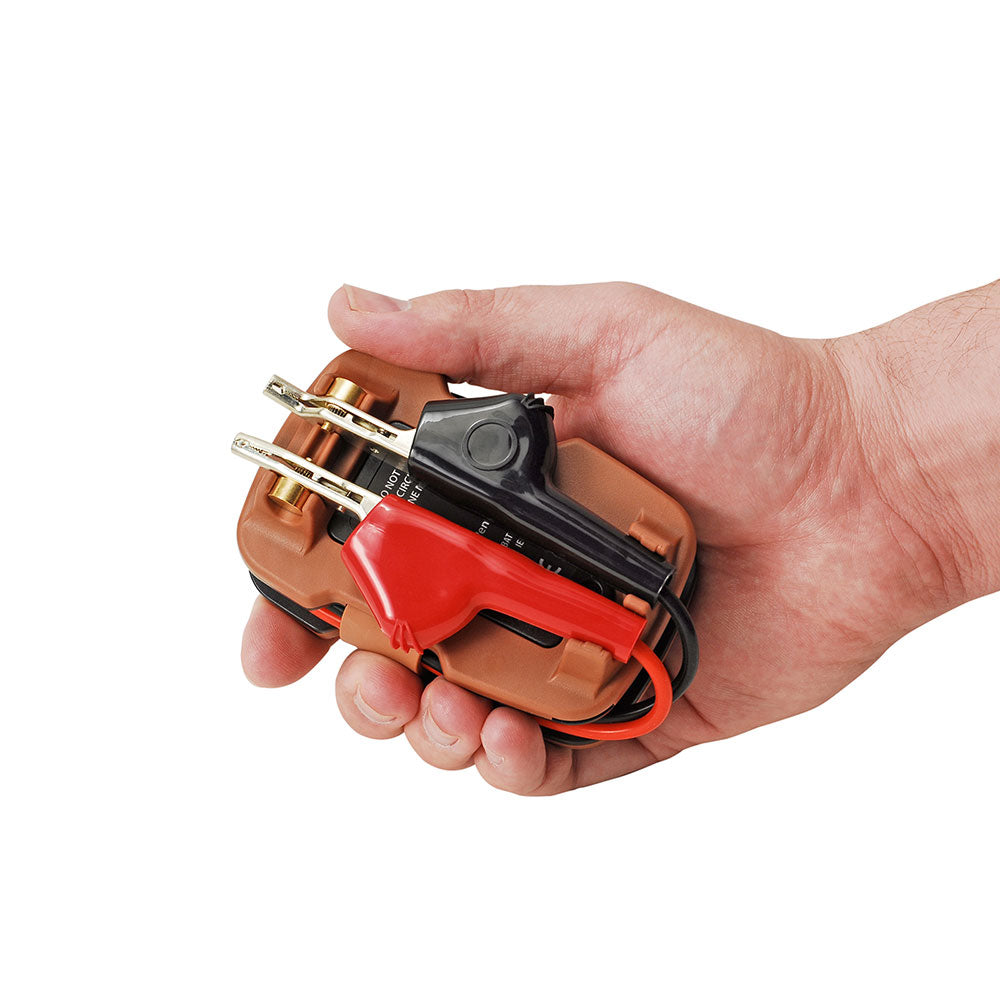

- Features on-board test lead storage
- Positive cable detection: tone changes when wires are shorted

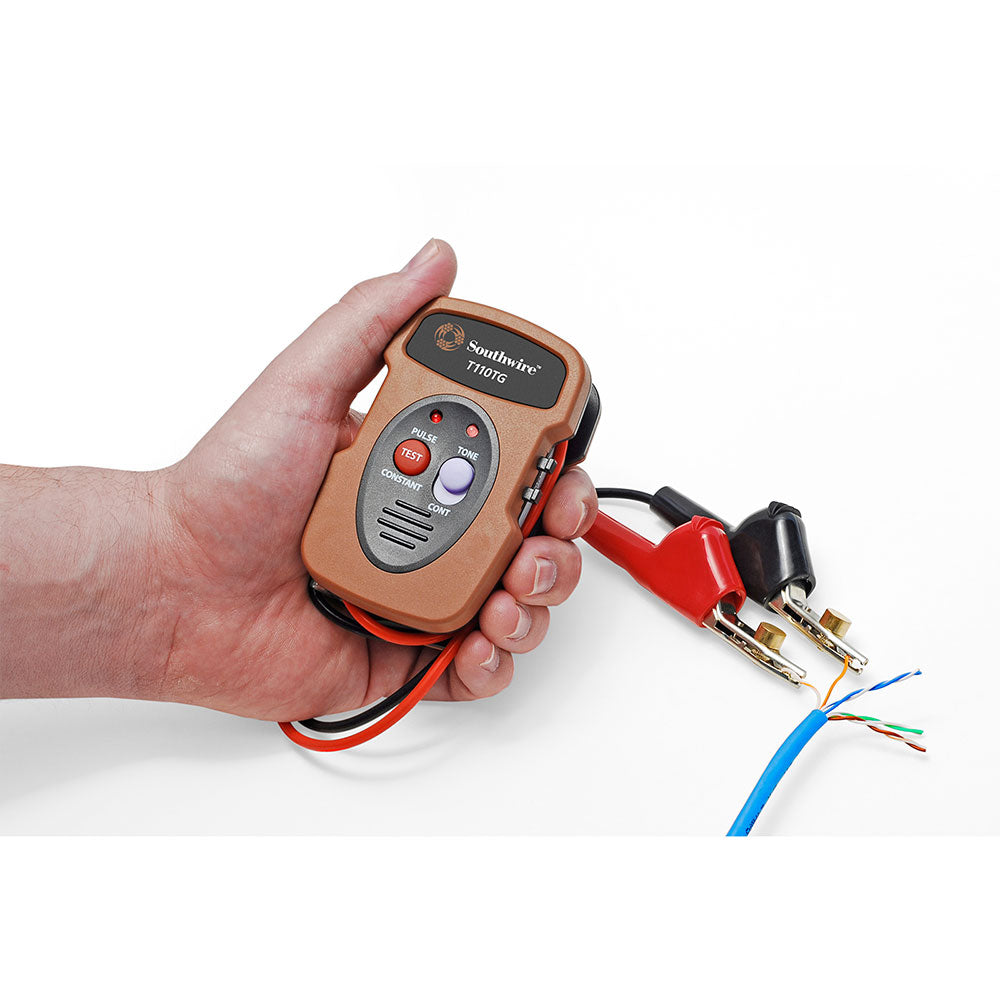

- Quickly trace non-energized cables - even behind walls

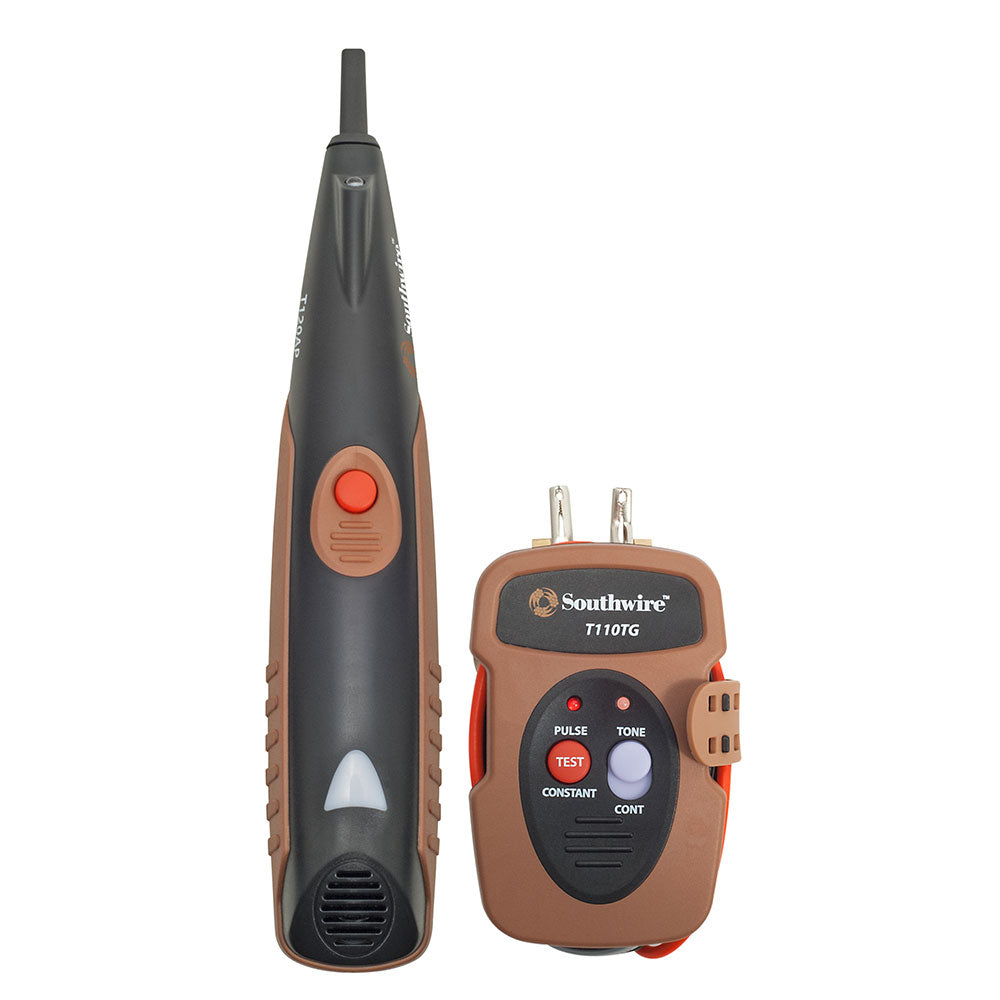

- Requires Amplifier Probe (Southwire T120AP)
Southwire T110TG Specifications
| Continuous Tone Frequency | 1.06kHz nominal |
| Over Voltage Protection | 60VDC in Toner/Polarity Mode |
| Output Power in Tone Mode | +9.65dbm into 600 ohms |
| Auto-Off | 30 minutes |
| Open Circuit Voltage in Continuity Mode | 8.2VDC with fresh battery |
| Battery | One 9V battery |
| Operating Temperature | -4°F to 140°F (-20? to 60?) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Case Dimensions | 4.02" x 2.58" x 2.36" (10.2cm x 6.5cm x 6cm) |
| Weight | 8oz (230g) |
Toolup Part # :
382317
