Spectra Precision Laser | SKU:
CR700
Spectra CR700 Combination Laser Level Receiver with Rod Clamp and Magnetic Mount
Free Shipping
$645.61
$685.00
Unit price
/
Unavailable
Loading delivery estimate...
Description
Description

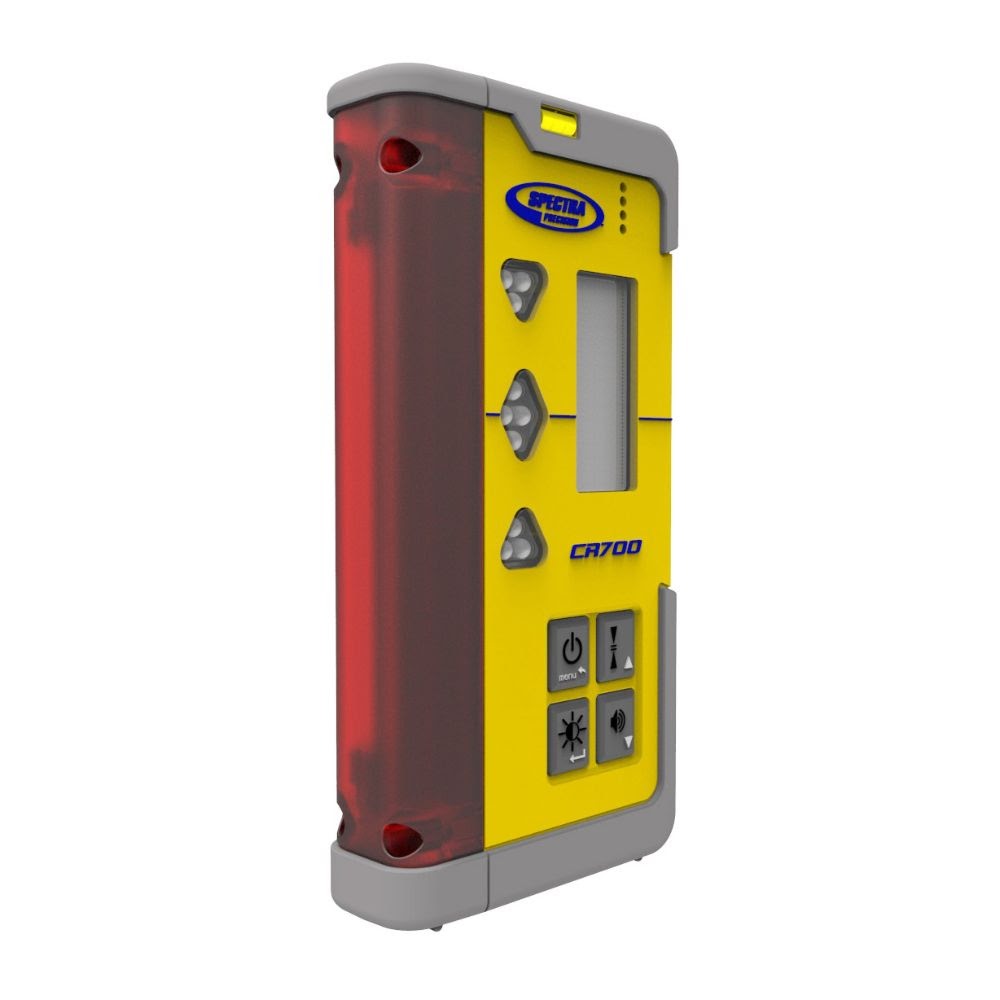

Spectra Precision Laser CR700 Description

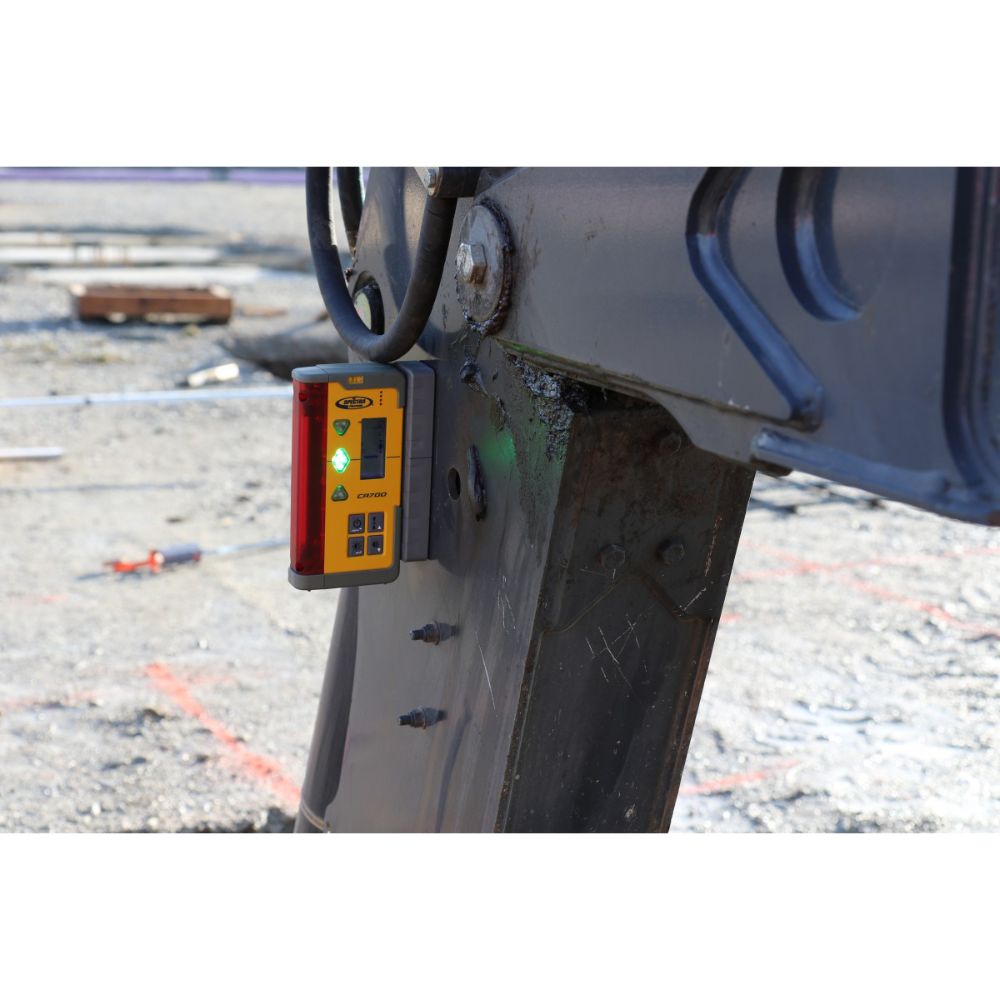

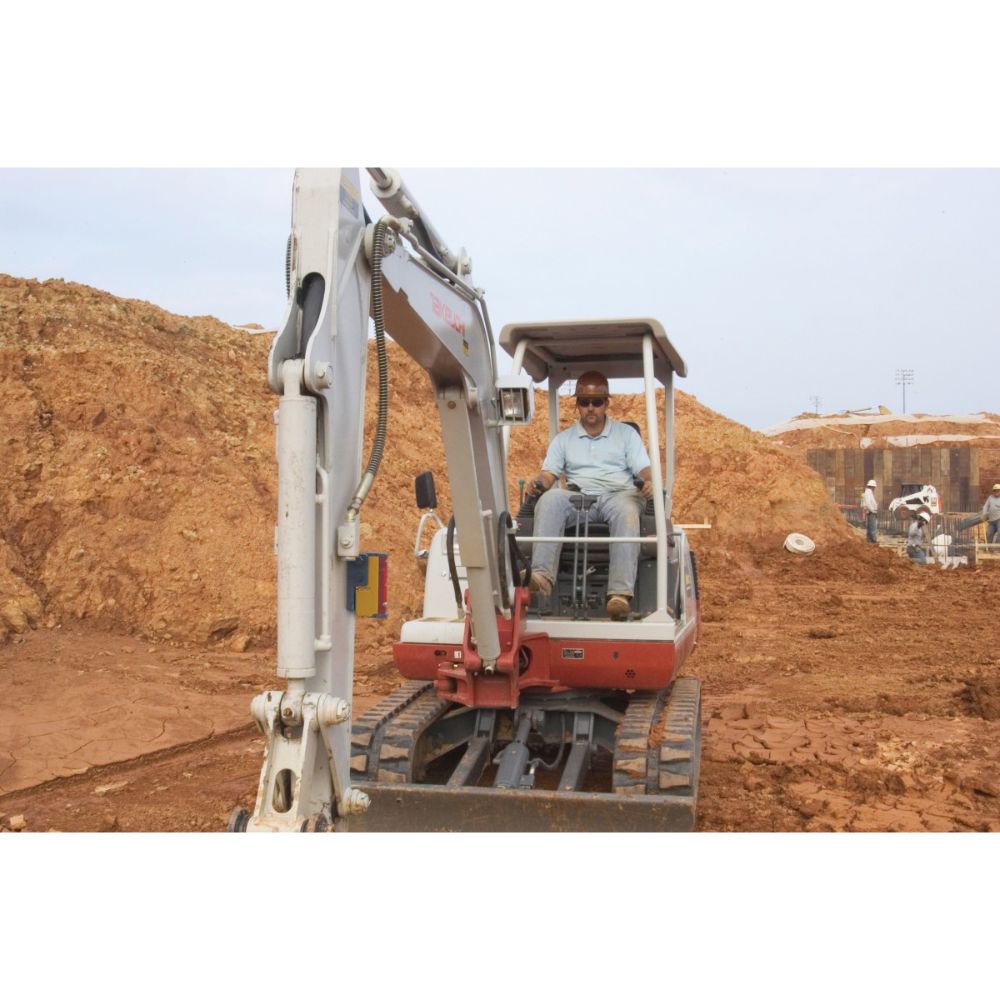

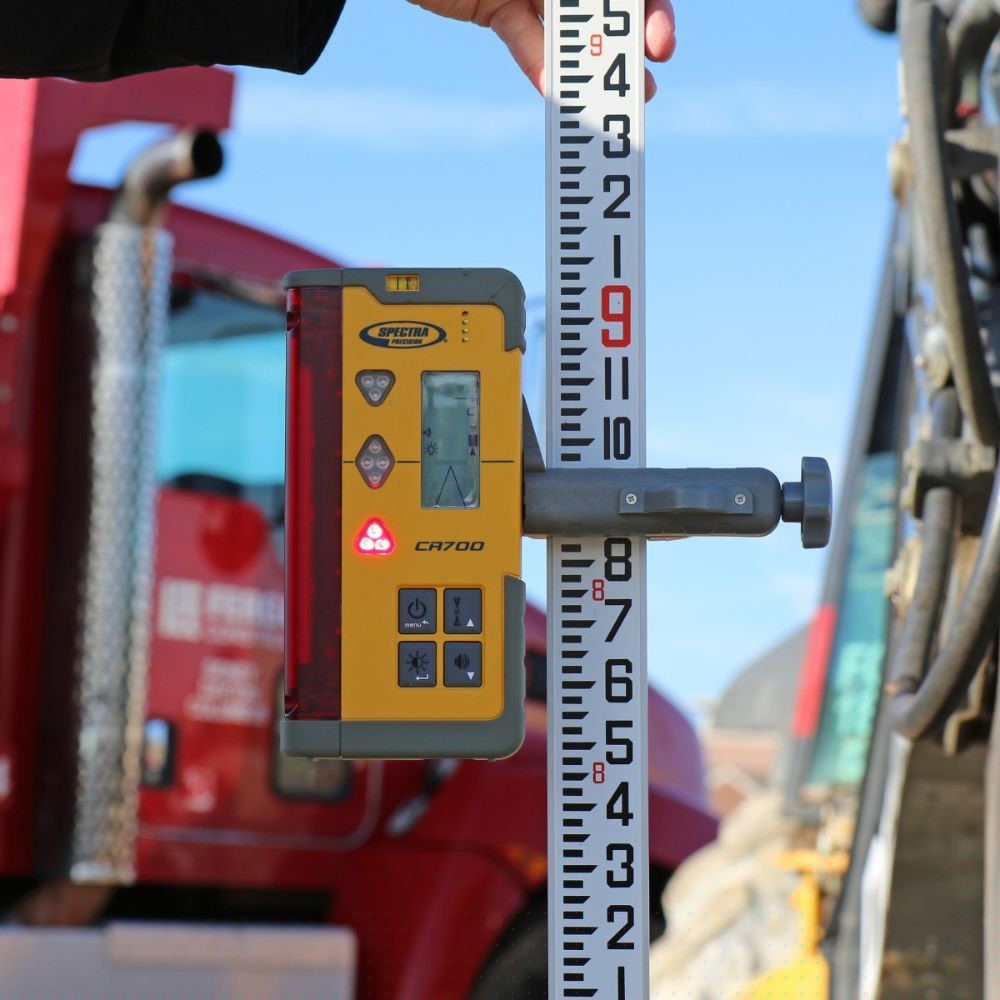

The CR700 Combination Laser Receiver is a machine mounted display receiver used on small grading and excavating equipment as well as a traditional laser receiver mounted to a grade rod or staff. The CR700 includes both a magnetic mount for quick machine mounting and a grade rod clamp.

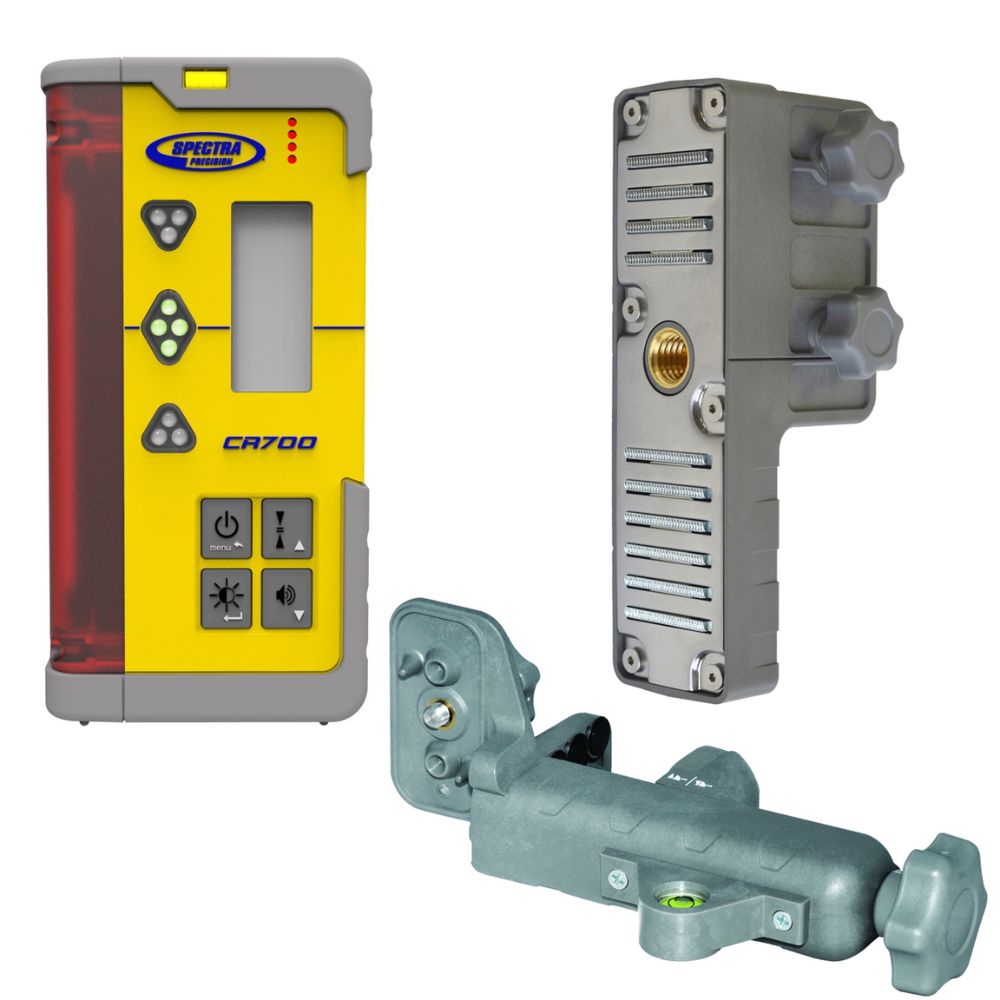

Spectra Precision Laser CR700 Includes
- (1) CR700 Combination Laser Receiver
- (1) C70 Grade Rod Clamp
- (1) C71 Magnetic Mount
- (3) AA Batteries
Spectra Precision Laser CR700 Features
- Bright LED Arrow Displays – red/green/blue LED arrows are super bright and visible in all conditions
- Magnetic Clamp – new C71 magnetic clamp will not slip on the machine no matter how rough the work is
- Light Bar Technology – patented laser reception technology delivers the most accurate, consistent and reliable performance
- Laser Radio – the CR700 is radio-compatible with the GL400N / GL600N series grade lasers and the HV302 enabling the use of time saving functions such as Grade Match, Fingerprinting, PlanLok and Axis Alignment
- IP67 – dustproof, waterproof, weatherproof
- 3 m (10 ft) Drop Guarantee – almost destruction proof, extremely robust; eliminates downtime
- Digital Read-Out – the CR700 provides the exact distance from on-grade numerically
- Remote Display – pair the CR700 receiver with an HL760 receiver to be used as a remote display, useful for machine operators and site supervisors
- Backlight – Receiver can be viewed in the dark or low light conditions
- Vertical Drift Alarm – Warns if the laser is disturbed when using in the vertical mode
- 3-Year Warranty – the best warranty on laser receivers
Spectra Precision Laser CR700 Specifications
| Working Radius (Laser dependent) | 1 m - 460 m (3' - 1500') |
| Laser Detection Height | 127.0 mm (5") |
| Numeric Readout Height | 102.0 mm (4") |
| Internal Radio | Full 2-Way Communication, Operation and Security Lock with Paired Device |
| Radio Working Radius | Up to 200 m (660'), Depending on Orientation, Conditions and Paired Device |
| Accuracy (Deadband) | Ultra Fine (0.5 mm 0.02" 1/32"), Super Fine (1.0 mm 0.05" 1/16"), Fine (2.0 mm 0.10" 1/8"), Medium (5.0 mm 0.20" 1/4"), Coarse (10.0 mm 0.50" 1/2"), Machine (25.0 mm 1") |
| Reception Angle | 200° Minimum (laser & distance dependent) |
| Strobe | Anti-Strobe Sensor |
| Detectable Spectrum | 610 nm ... 780 nm |
| Beeper Volumes | Loud = 110 dBA, Medium = 95 dBA, Low = 65 dBA |
| LED Grade Indicators | Green On-grade, Red Hi, Blue Low |
| Brightness | Off, Bright, Super-Bright |
| Power Supply | 3 x 1.5 Volt "AA" Batteries |
| Battery Life | 60+ hours; 16 Continuous Backlight |
| Automatic Shut Off | 30 Minutes |
| Environmental | Waterproof, Dustproof to IP67 |
| Operating Temperature | -20°C...+60°C (-4°F... +140°F) |
| Storage Temperature | -40°C...+70°C (-40°F...+158°F) |
| Regulatory | CE EMC / RoHS Compliant |
