Spectra Precision Laser | SKU:
DG613G
Spectra DG613G Dialgrade Pipe Laser, 8" Trivet Plate, Target, Green Beam
Free Shipping
$5,183.75
$5,500.00
Unit price
/
Unavailable
Description
Description

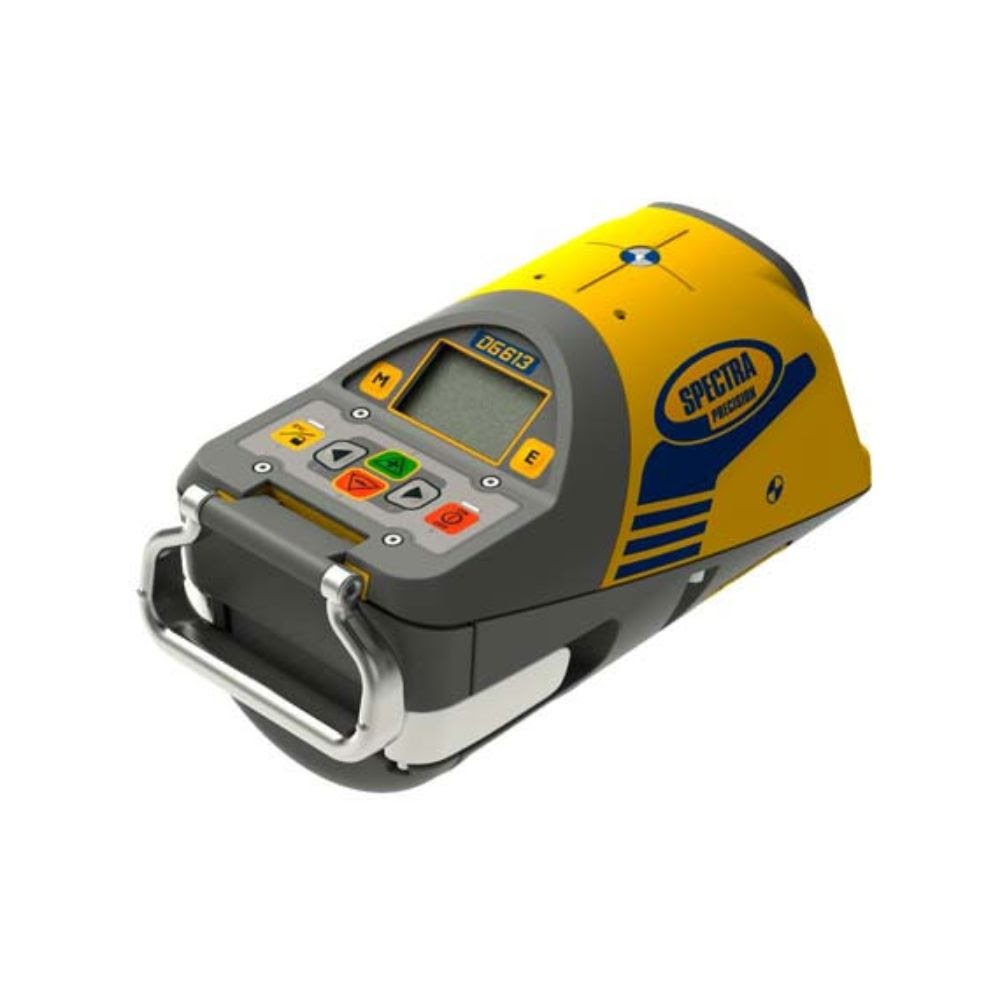

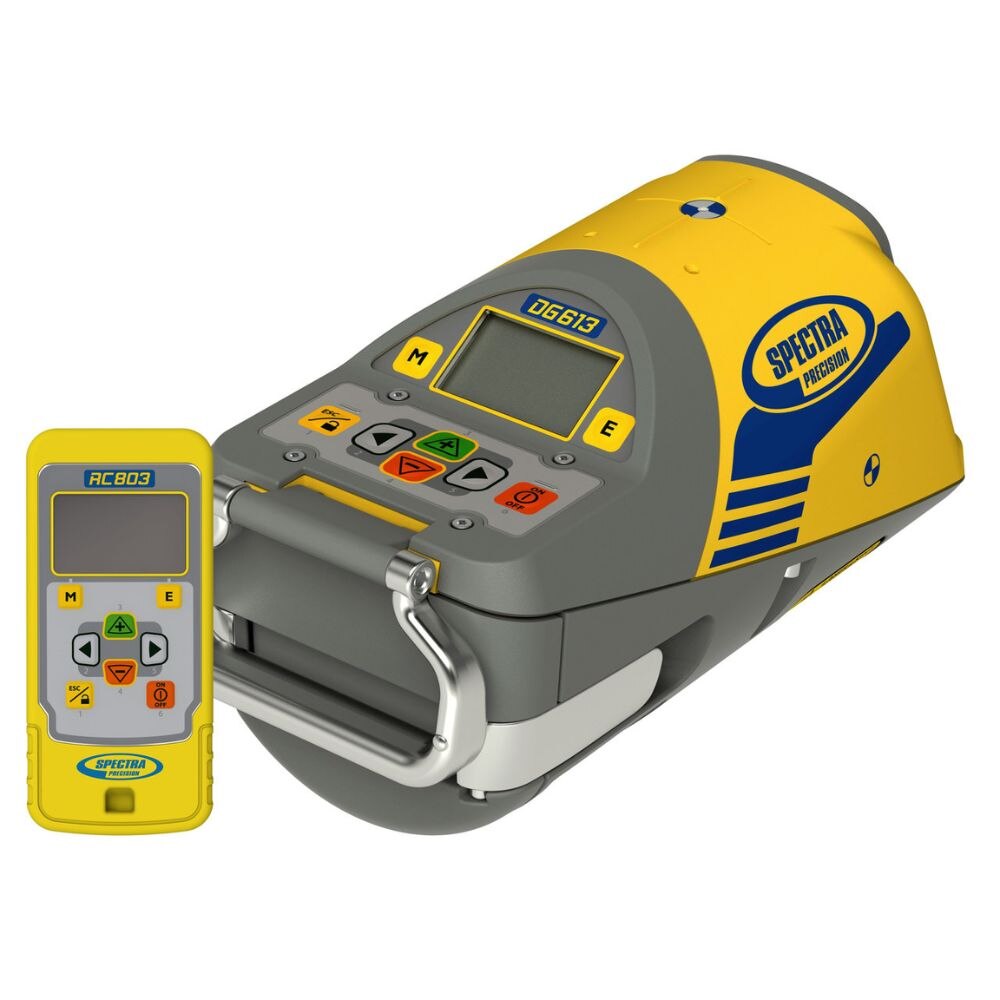

Spectra Precision Laser DG613G Description

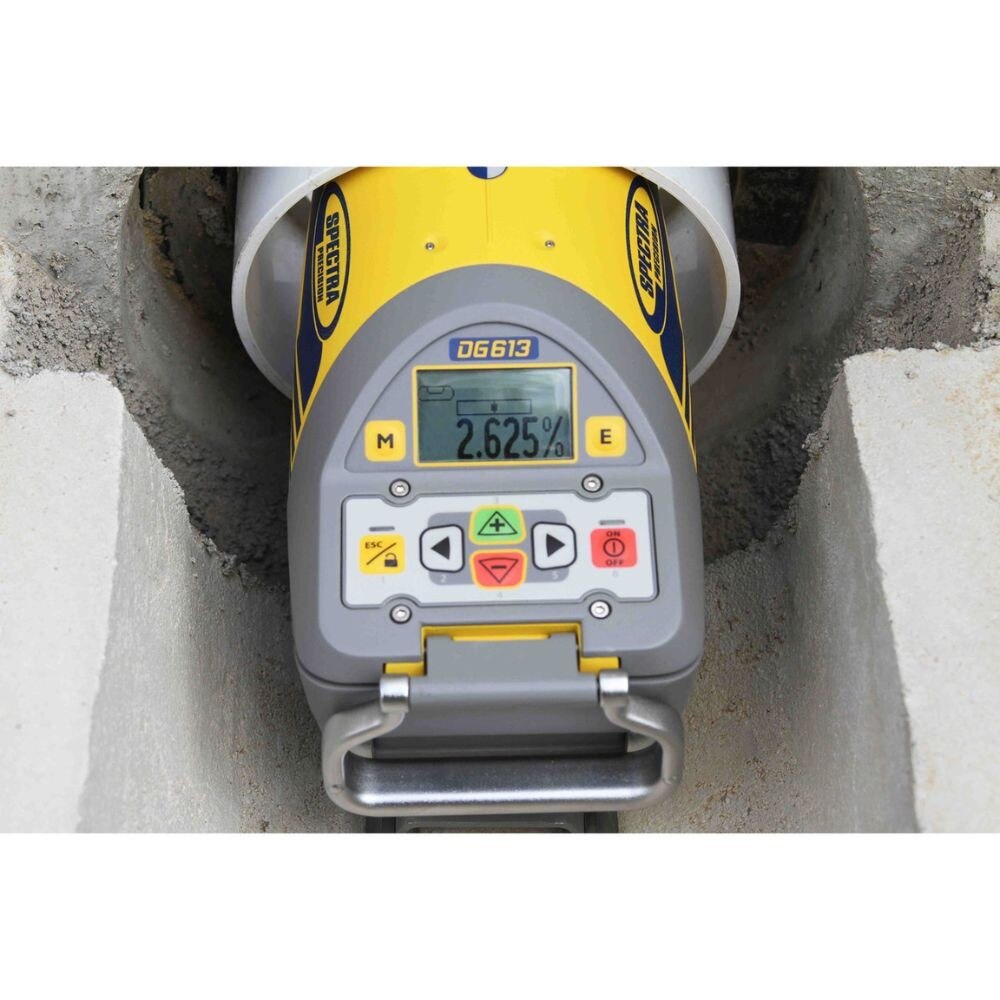

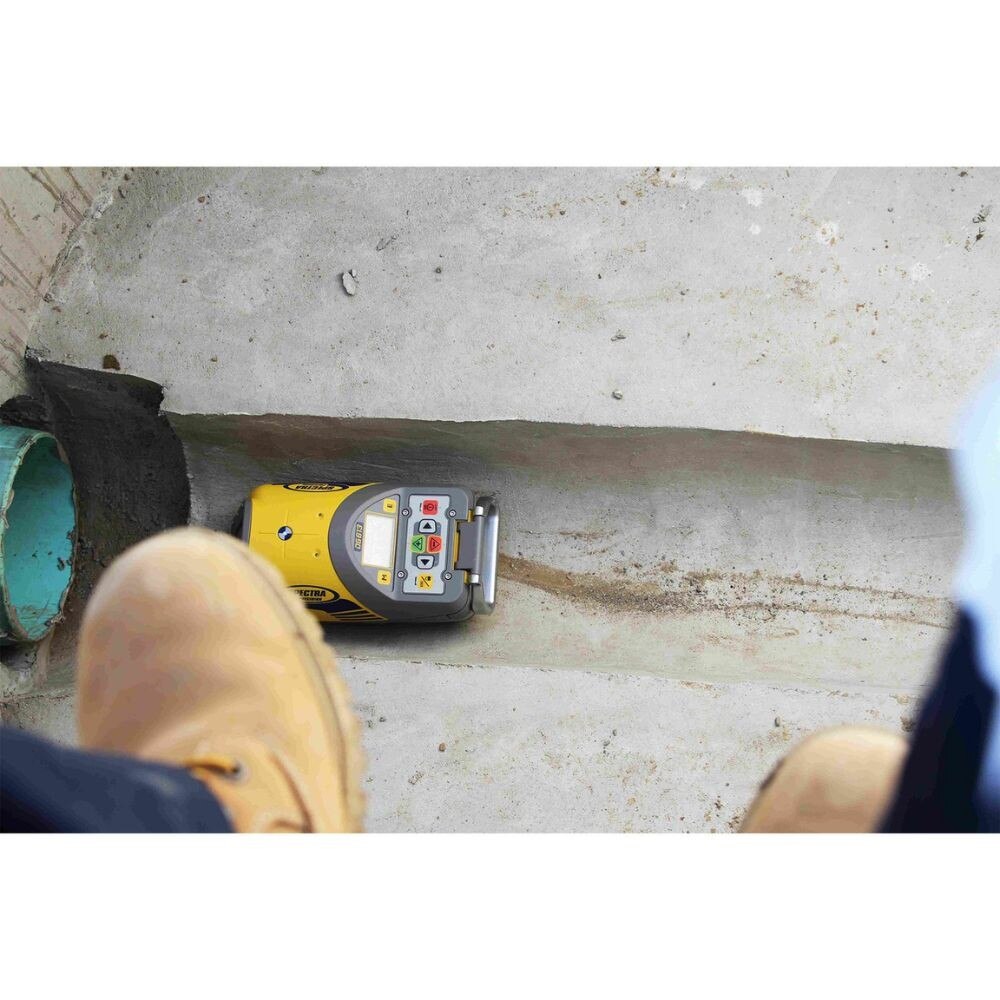

Designed to fit around tighter inverts, the Spectra Precision DG613G delivers the most productive pipe laying experience in the market. They are extremely rugged and thrive in demanding underground conditions. Benefiting from the latest technology developed by Spectra Precision, the beams move quickly and accurately for alignment and grade. Spectra's DG613G helps you improve efficiency and provide unprecedented performance and reliability. Working in the trenches just got easier with the new range of pipe lasers from Spectra Precision.

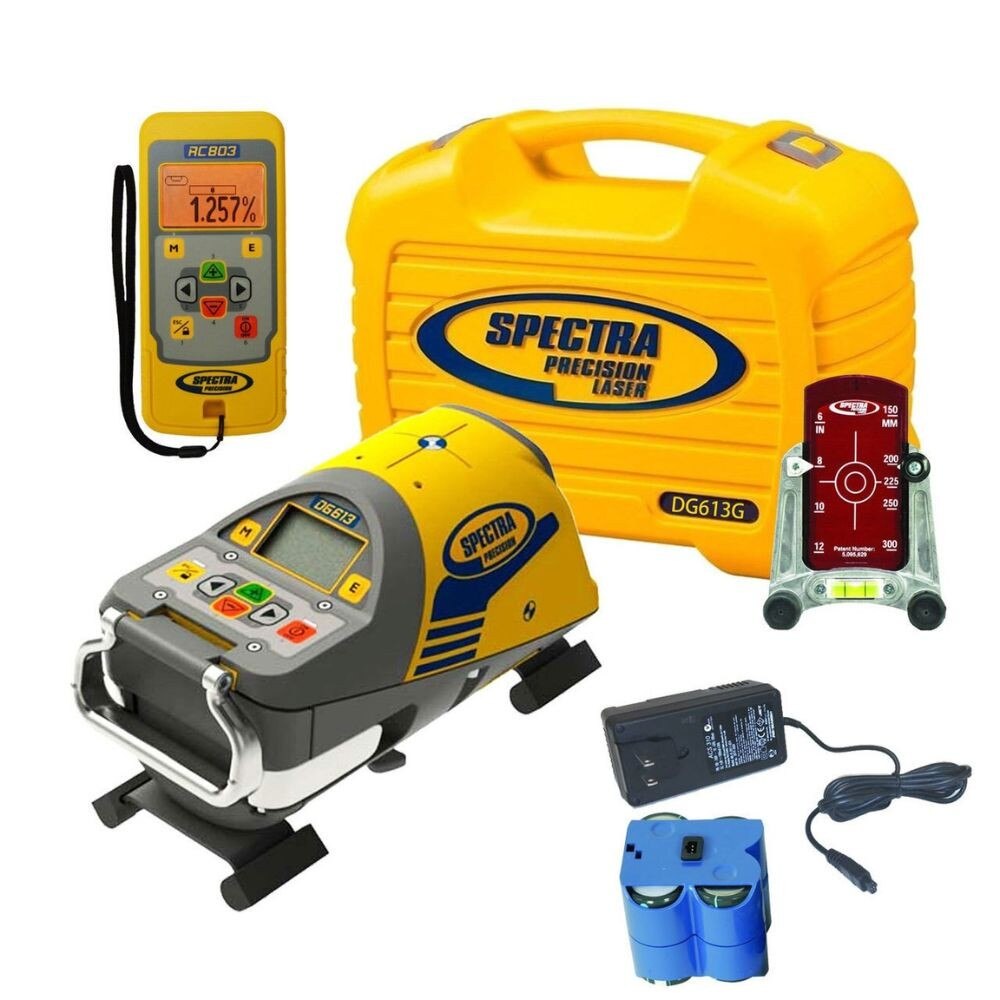

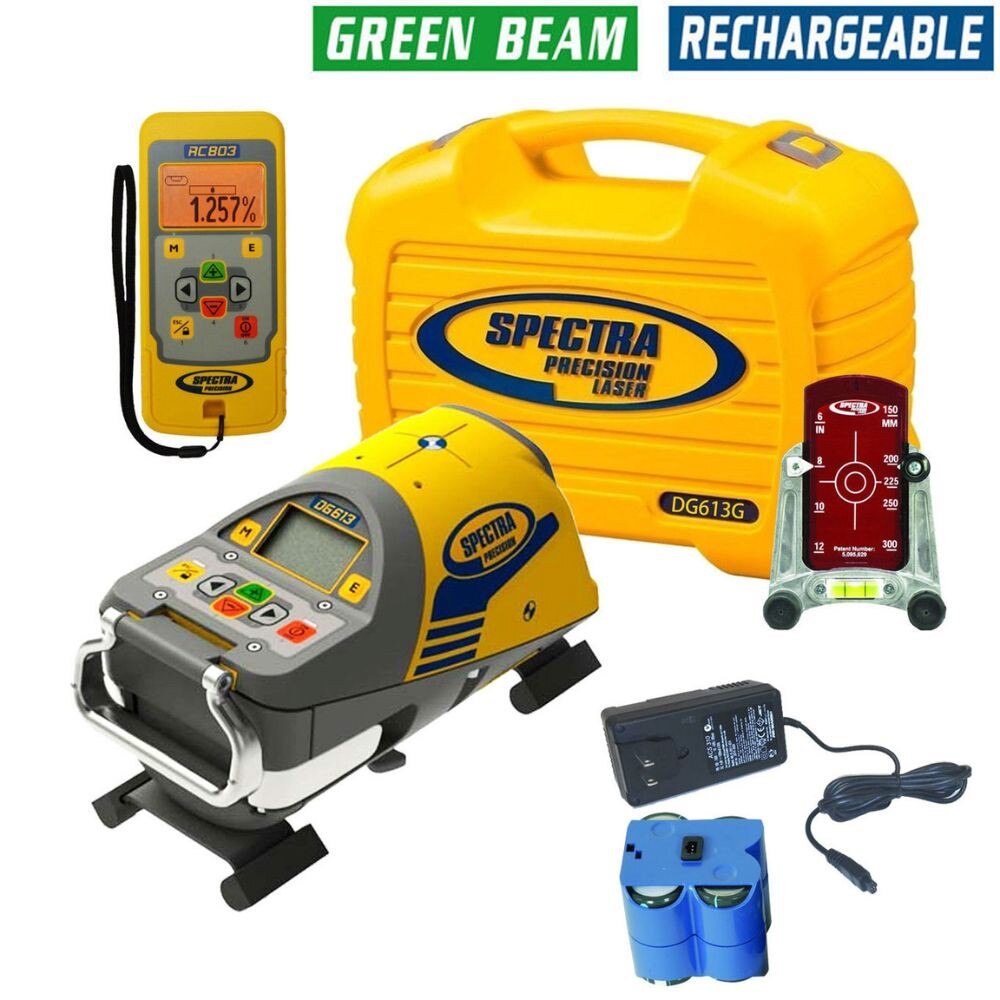

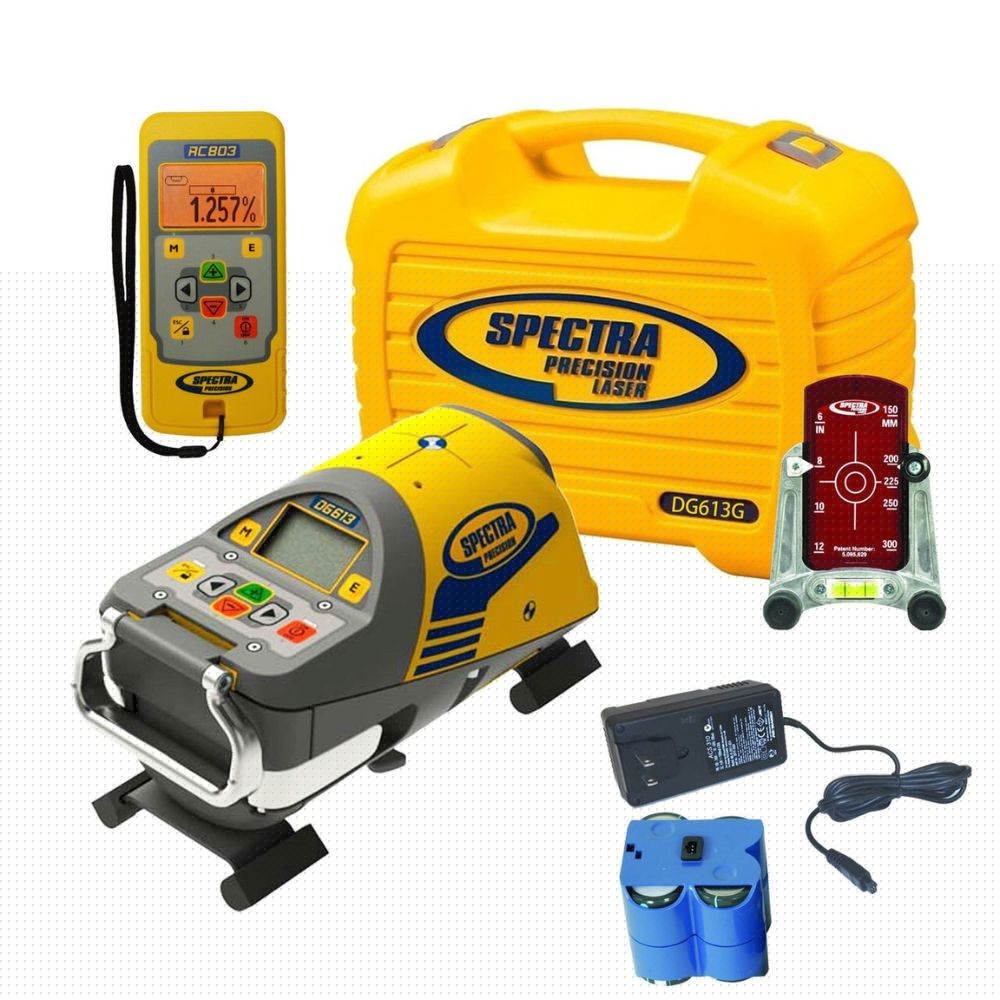

Spectra Precision Laser DG613G Includes
- (1) DG613G Pipe Laser

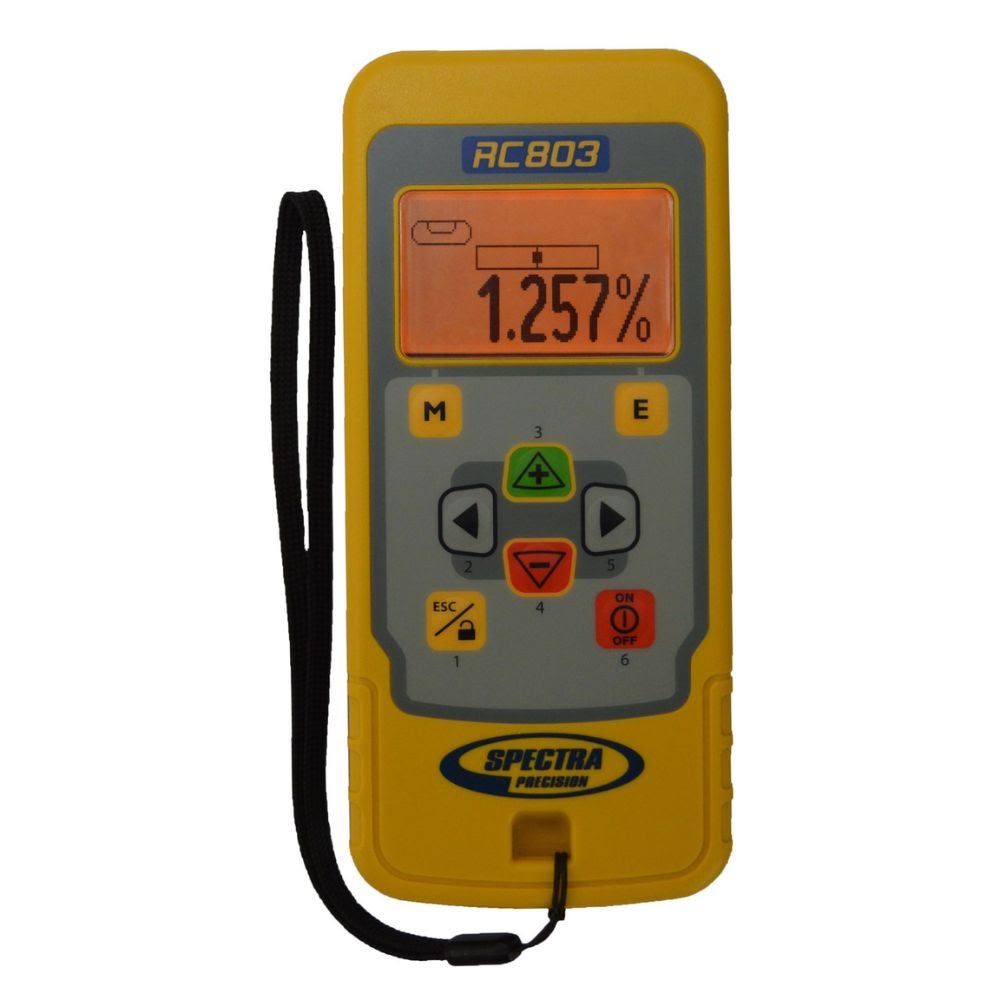

- (1) RC803 Remote Control
- (1) 956G Pipe Target with 2 Plates
- (1) 1248 Centering Plate 8"
- (1) Q104781 Charger
- (1) Q104667 NiMH Battery Pack
- (1) 5289-0036 Carrying Case
- (1) Multi Language CD, Quick User Guide and Safety Instructions
Spectra Precision Laser DG613G Features
- New reduced length allows easy set-up even in tight inverts
- Self leveling range of -12% to +40% over the entire grade range
- Cross axis compensation provides a quicker more accurate set-up as the laser does not have to be level in the pipe – place it in the pipe it levels, you work.
- Bright visible beam that works up to 150m (500 feet)
- RC803 remote works via radio 130m (430 feet) or infra-red 150m (500 feet) for both “over-the-top” set-up and in pipe/trench set-up.
- Large, bright, graphical user interface makes the screen easier to see and use when in or out of the pipe. Same graphical user interface can be seen on the remote – what you see on the laser you see on the remote.
- Line-Set/Check – allows the user to align the laser to the manhole quickly and easily to set direction. The beam will go up to 100% allowing easy alignment even in short trenches
- Line Scan – provides a quick alignment to the center of the target for the second day setup
- Line Alert- notifies the user if the set-up is disturbed eliminating costly re-work from errors
Spectra Precision Laser DG613G Specifications
| Accuracy | ± 1.5 mm/30 m, (1/16" @ 100') 10 arc seconds |
| Laser Type | Class 3A/3R, |
| Grade Range | -12% to +40% |
| Operating Range | Up to 150 m (500') |
| Line Range | 20° ±1° |
| Leveling Indicators | LCD Indications; Beam and LED Flash |
| Power Source | 10000mAh NiMH Battery Pack |
| Power Life | 40 hours NIMH; 50 hours Alkaline |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Dust & Waterproof | Yes. IP 68 |
| Tripod Mount | 5/8 x 11 horizontal |
| Grade/Slope Display | Percent, Per Mille, Degree |
| Laser Color | Green Diode Laser |
| Laser Type/Wavelength | 600 - 680 nm |
| Length | 9.8" |
| Diameter | 5.3" |
| Remote Control RC803 Radio Operating Range (Over the Top) | Up to 130 m (425') |
| IR Operating Range (front, through the pipe) | up to 150 m (500') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Water Proof | IP66 |
