Spectra HV302G-7 Green Beam Laser Package with HL760U Receiver and RC402N
Description
Description

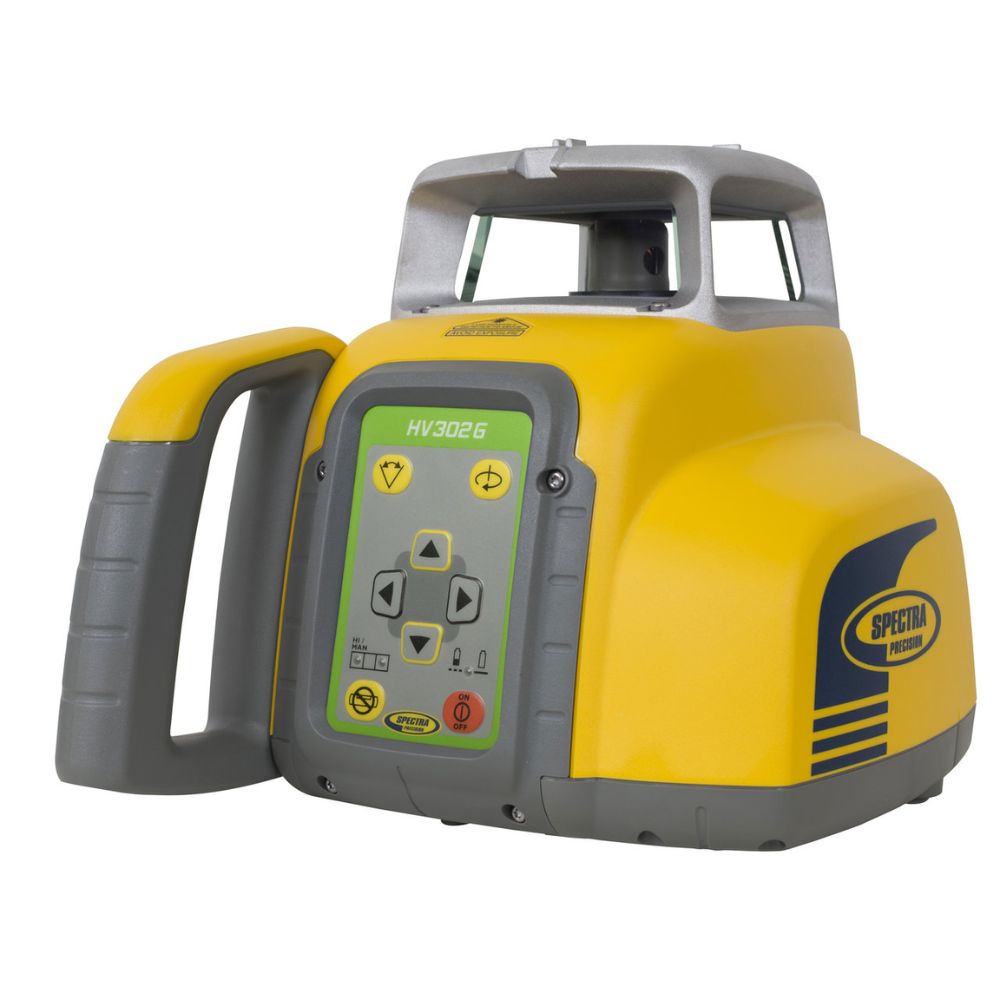

Spectra Precision Laser HV302G-7 Description
The automatic self-leveling Spectra Precision® HV302G Horizontal/Vertical Laser offers exceptional versatility and superior green beam visibility for increased productivity at a great value. The HV302G is capable of handling a wide variety of horizontal, vertical and plumb applications optimized for interior projects. A split beam enables plumb point transfer and 90 degree layout. Even in brightly lit interior conditions, the high visibility green beam of the HV302G delivers consistently reliable and accurate performance, enabling you to work faster and smarter.

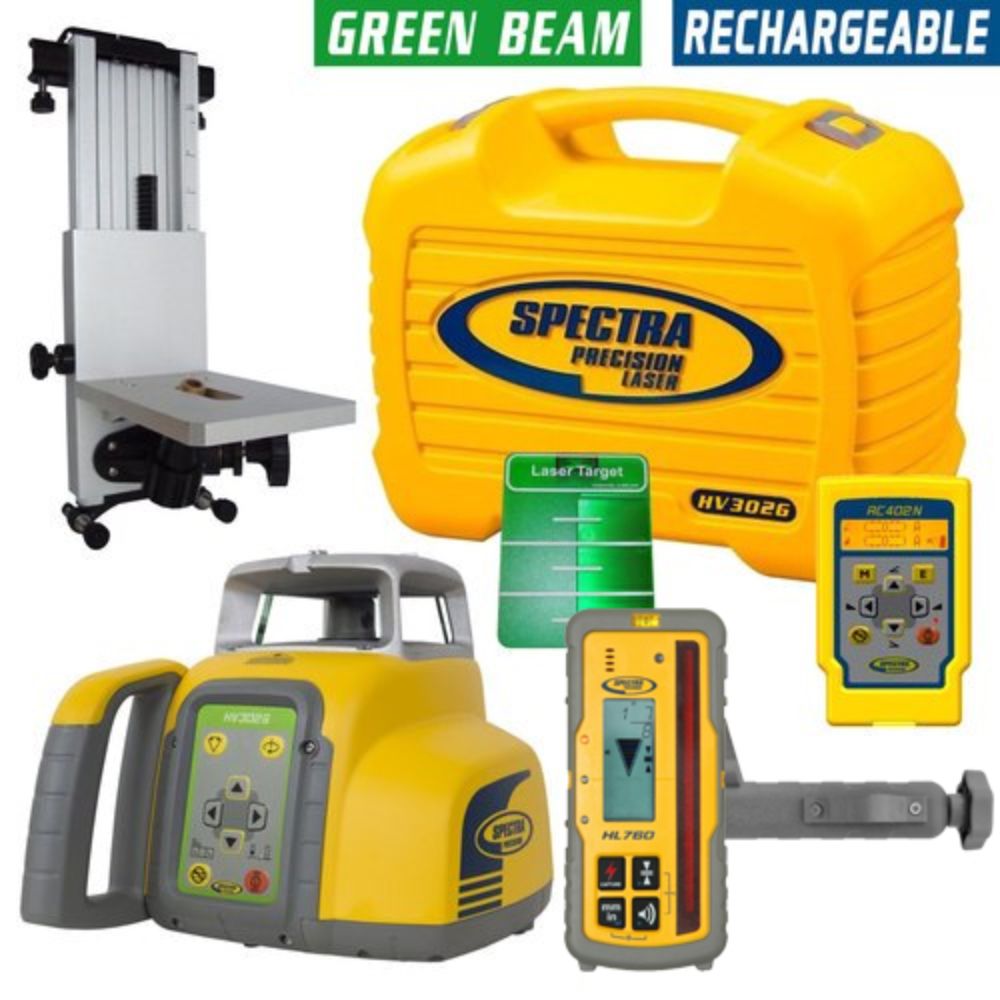

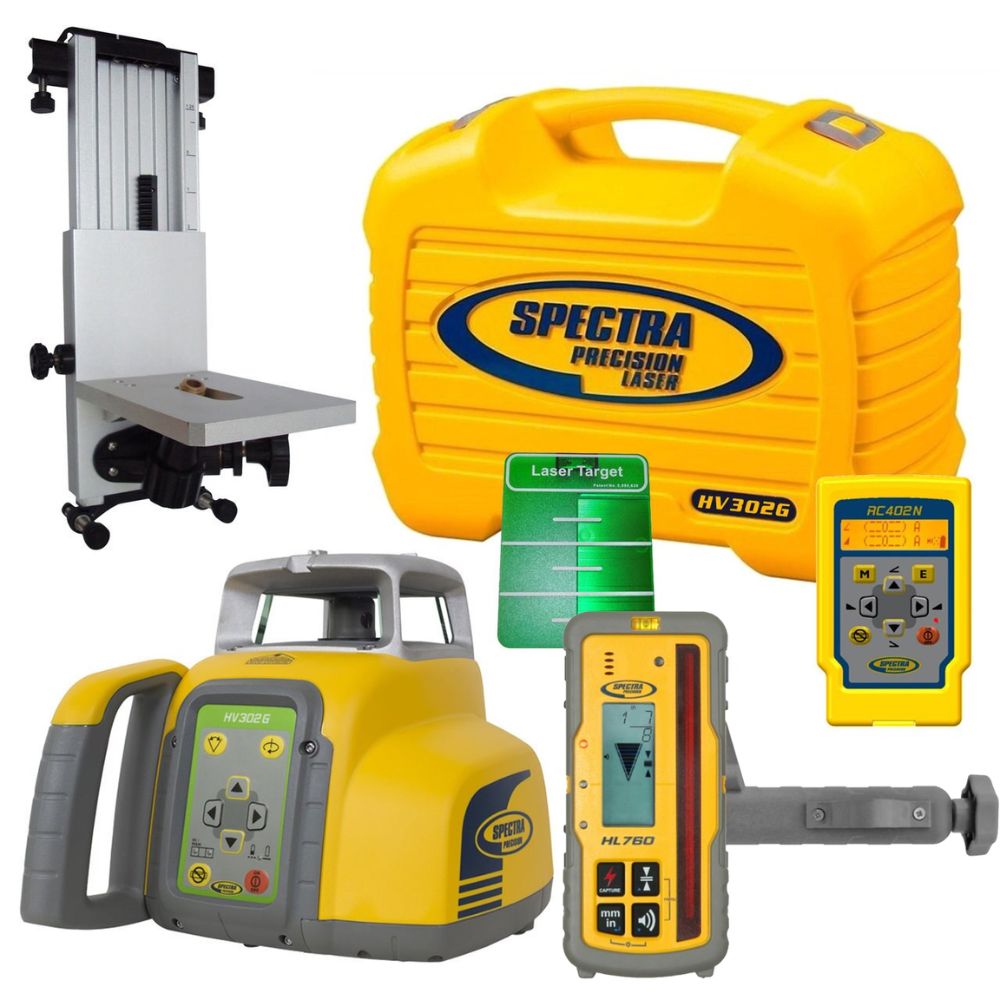

Spectra Precision Laser HV302G-7 Includes
- (1) HV302G Interior Green Beam Horizontal / Vertical Laser
- (1) RC402N Remote Control
- (1) HL760U Deluxe Laser Receiver
- (1) M302 Wall Mount
- (1) Q104124 Magentic Green Target Plate
- (1) 10 Ah NiMH Rechargeable Battery Pack
- (1) Battery Charger
- (1) Small Laser Carrying Case
Spectra Precision Laser HV302G-7 Features
- Automatic horizontal and vertical self-leveling
- Accuracy 1/16-inch @ 100 feet (1.5mm @ 30 m)
- Working visible range of 250 feet (75 m) radius
- High-visibility beam – easily visible even in brightly lit conditions
- Split beam – enables plumb point transfer and 90-degree layout
- Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
- Long range RC402N Radio remote control
- HR150U - Interior Receiver with highly visible LEDs and built-in Magnetic Mount
- Radio communication between the HL760U DRO receiver and the laser provides automatic Grade Matching and PlaneLok
- Extremely durable and portable
- 3 Year warranty
Spectra Precision Laser HV302G-7 Specifications
| Leveling Accuracy | ± 1.5 mm/30 m, 1/16" @ 100', 10 arc seconds |
| Operating Visible Radius | 250' (75 m) |
| Rotation | 0, 10, 80, 200, 600 rpm |
| Pre-Selected Scan Sizes | 5°, 15°, 45°, 90°, 180° and 0 |
| Laser Type | Green Diode Laser 520 nm |
| Laser Class | Class 3A/3R, max. 5 mW |
| Self-Leveling Range | ± 5° (±9%) |
| Leveling Indicators | LED Flashes |
| Radio Range (HL760) | Up to 100 m (330') |
| Power Source | 10.000 mAh NiMH Battery Pack |
| Battery Life | 45 hours NiMH; 60 hours alkaline |
| Operating Temperature | -20°C to 50°C (-4°F to 122°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Tripod Attachments | 5/8 x 11 Horizontally and Vertically |
| Dust and Waterproof | Yes - IP66 |
| Low Voltage Indication | LED Battery Indicator |
| Low Voltage Disconnection | Unit Shuts Off |
| HL760U Deluxe Laser Receiver Working Radius | 1 m - 460 m (3' - 1500') |
| Laser Detection Height | 127 mm (5") |
| Numeric Readout Height | 102.0 mm (4“) |
| Accuracy (Dead band) | Ultra Fine 0.5 mm 0.02" 1/32", Super Fine 1.0 mm 0.05" 1/16", Fine 2.0 mm 0.10" 1/8", Medium 5.0 mm 0.20" 1/4", Coarse 10.0 mm 0.50" 1/2", Calibration 0.1 mm 0.01" 1/64" |
| Reception Angle | ± 45° minimum |
| Battery Life | 60+ hours; 16 Continuous Backlight |
| Environmental | Waterproof, Dust-Proof to IP67 |
| Detectable Spectrum | 520 nm ... 780 nm |
| Beeper Volumes | Loud = 110 dBA, Medium = 95 dBA, Low = 65 dBA |
| Power Supply | 2 x 1.5 Volt “AA” Batteries |
| Automatic Shut-Off | 30 minute |
| Operating Temperature | -20°C...+60°C (-4°F... +140°F) |
| Storage Temperature | -40°C...+70°C (-40°F...+158°F) |
| RC402N Remote Control Operating Range | Up to 100 m (330') |
| Power Source | 2 x 1.5V AA Alkaline Batteries |
| Battery Life | 130 hours |
| Dust and Waterproof | Yes - IP66 |
